Chapter 2: Controls, Indicators, and
Connections
Overview
The controls, indicators, and connectors illustrated and described in this chapter allow
you to connect, operate, and monitor the FS1-X system and to troubleshoot problems if
you encounter them. Becoming familiar with the FS1-X front and rear panels also
simplifies system installation, setup, and operation.
Front Panel Description

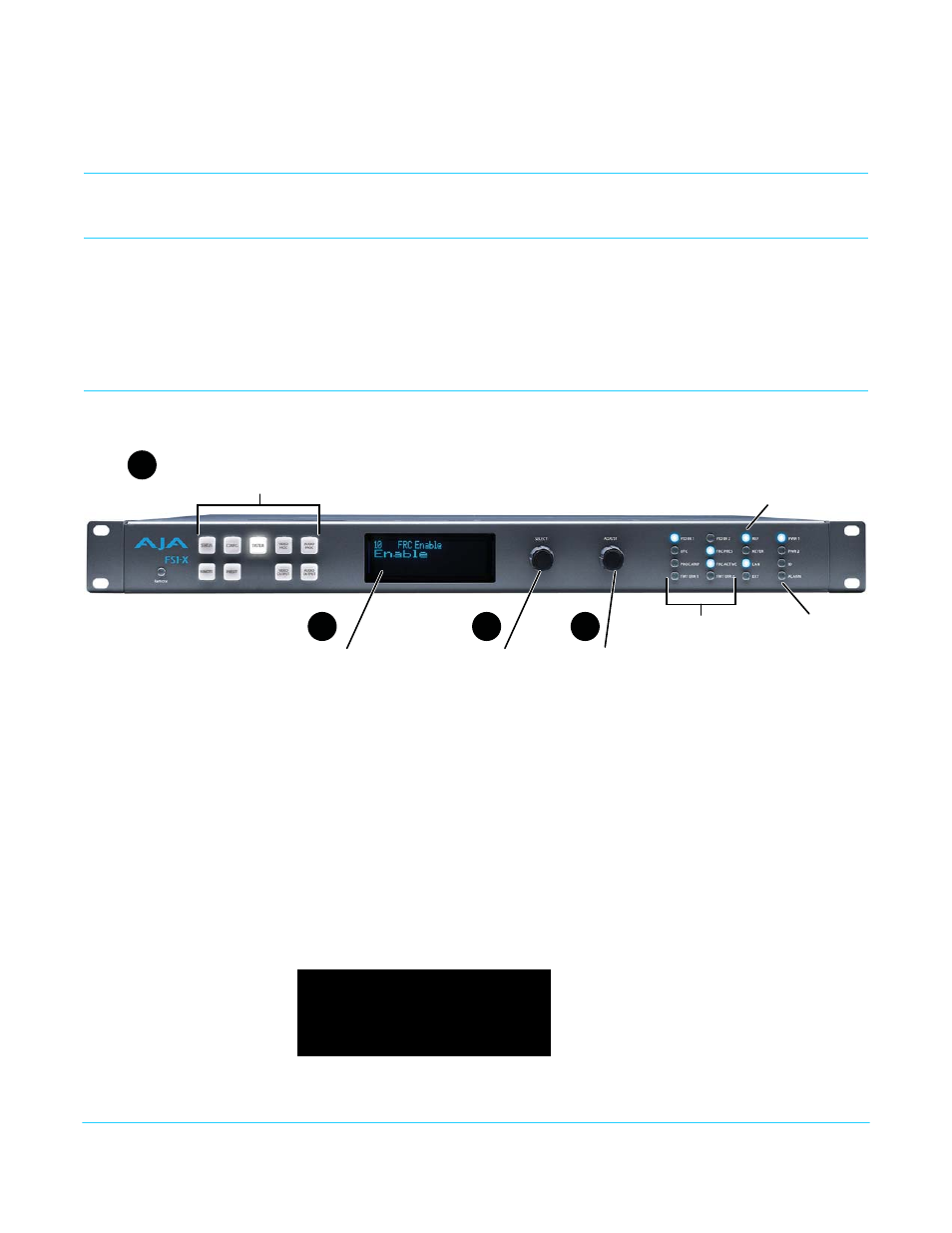

Figure 2. AJA FS1-X Front Panel Controls and Indicators
Alphanumeric
Display
The FS1-X's control system is designed to be quick and easy to use. The four-line
alphanumeric display shows menus that are numbered and grouped by function. The
menu groups are easily accessed using pushbuttons which correspond one-to-one with
the groups (one button per menu group). The menu lines, which are 23 characters wide,
display the following information:
• First line—parameter number and name.
• Second line—the editable value set for a parameter.
• Third and fourth lines—current status, labels, or prompts.
Figure 3. Four Lines of the Front Panel Display
Activity
Indicators:
VID In 1/2
UFC, Proc Amp,
FRC Present,
FRC Active
FMT ERR 1/2
Power and
Status Indicators:
Pwr 1
Pwr 2
ID
Alarm
Alphanumeric Display:
Line 1=Parameter
Line 2=Parameter value
Line 3=Status/Legend
Line 4=Status/Legend Select knob:
Scrolls and
selects menus;
Push to undo
changes.
Adjust knob:
Changes
selected value;
Hold down for
default value.
Menu Group Selection Buttons:
Press a button to select
a Menu Group in the display
3 4
Status Indicators:
Ref, Keyer, LAN, EXT
1
2
1 P a r a m n u m b e r & n a m e
2 C u r r e n t v a l u e s e t t i n g
3 L e g e n d , i n f o o r p r o m p t
4 L e g e n d , i n f o o r p r o m p t
