FS1-X v1.1 www.aja.com 96

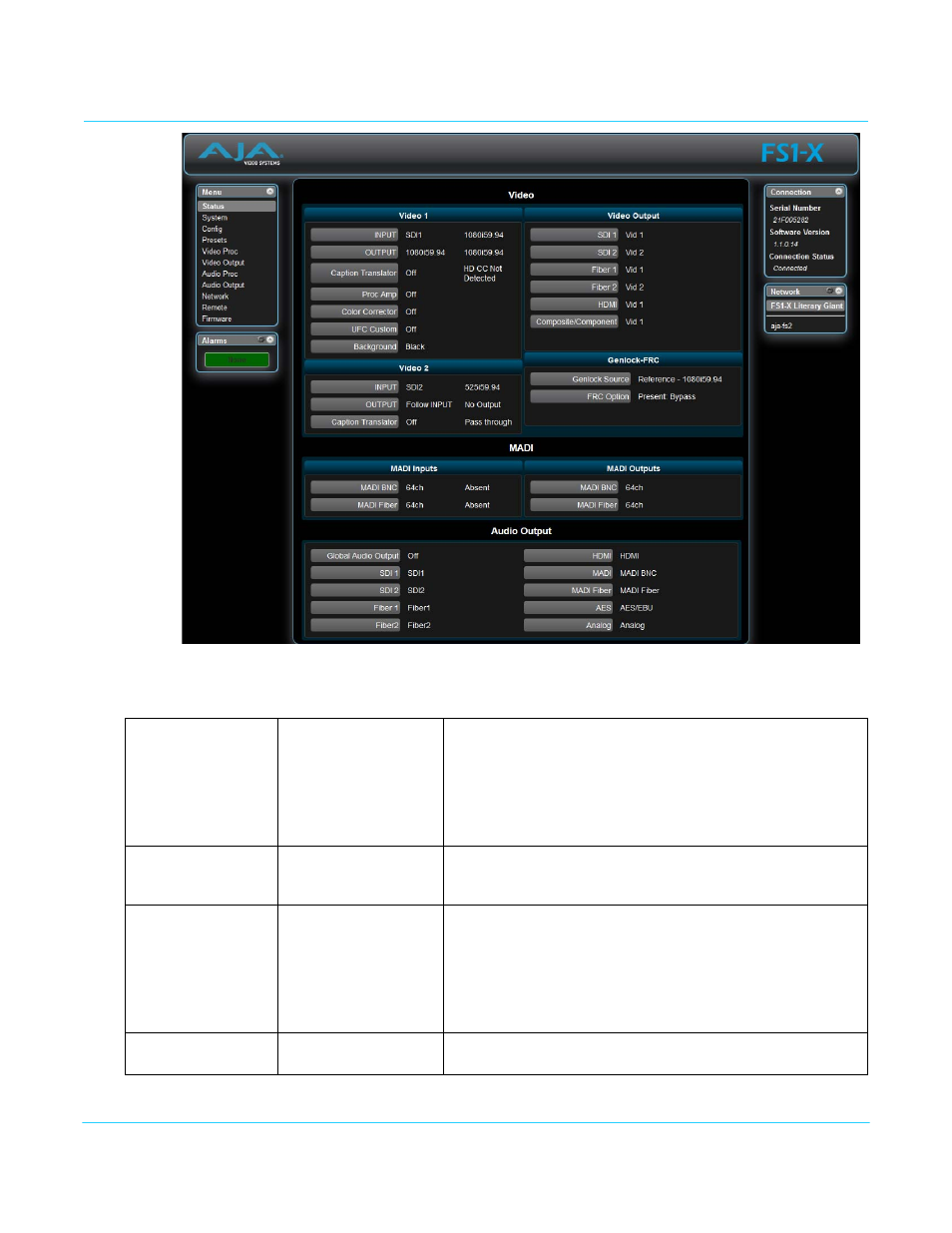

Status Screen
The Status screen displays overall FS1-X operational status. You can right-click most
video values to change them, allowing you to edit many parameters in one place.
Parameters with format incompatibilities or other alarms are highlighted in red.
Video 1
INPUT
OUTPUT
Caption Translator
Proc Amp
Color Corrector
UFC Custom
Background
Shows the input source and format for Video Processor 1.
Shows the output video selection and format for Video Proc 1.
Shows the caption selection and caption signal presence.
Shows whether the Proc Amp is On or Off.
Shows whether the Color Corrector (RGB) is On or Off.
Shows whether Custom conversion, AFD, and ROI are On or Off.
Shows the source and format of Background video.
Video 2
INPUT
OUTPUT
Caption Translator
Shows the input source and format for Video Processor 2.
Shows the output video selection and format for Video Proc 2.
Shows the captioning selection and signal presence.
Video Output
SDI 1
SDI 2
Fiber 1
Fiber 2
HDMI
Composite/Component
Shows which processor is feeding the SDI 1 output.
Shows which processor is feeding the SDI 2 output.
Shows which processor is feeding the Fiber 1 output.
Shows which processor is feeding the Fiber 2 output.
Shows which processor is feeding the HDMI output.
Shows which processor is feeding the Composite or Component
output. Only one output can be active a time.
Genlock-FRC
Genlock Source
FRC Option
Shows the source of the genlock reference, and its format.
Shows the presence and operating status of the FRC option.
