Installing the XM-160/161/162 Direct Vibration Module 21
Connecting the Buffered Outputs
The XM-160, XM-161, and XM-162 provide buffered outputs of all
transducer input signals (a total of six). The buffered output connections may
be used to connect the module to portable data collectors.
The internal power supply voltage provided to the buffered output circuits
depends on configuration of the module. Refer to IEPE Buffer Power and
Signal Detection Parameters on page 58 for a description of the Buffer Power
parameters.

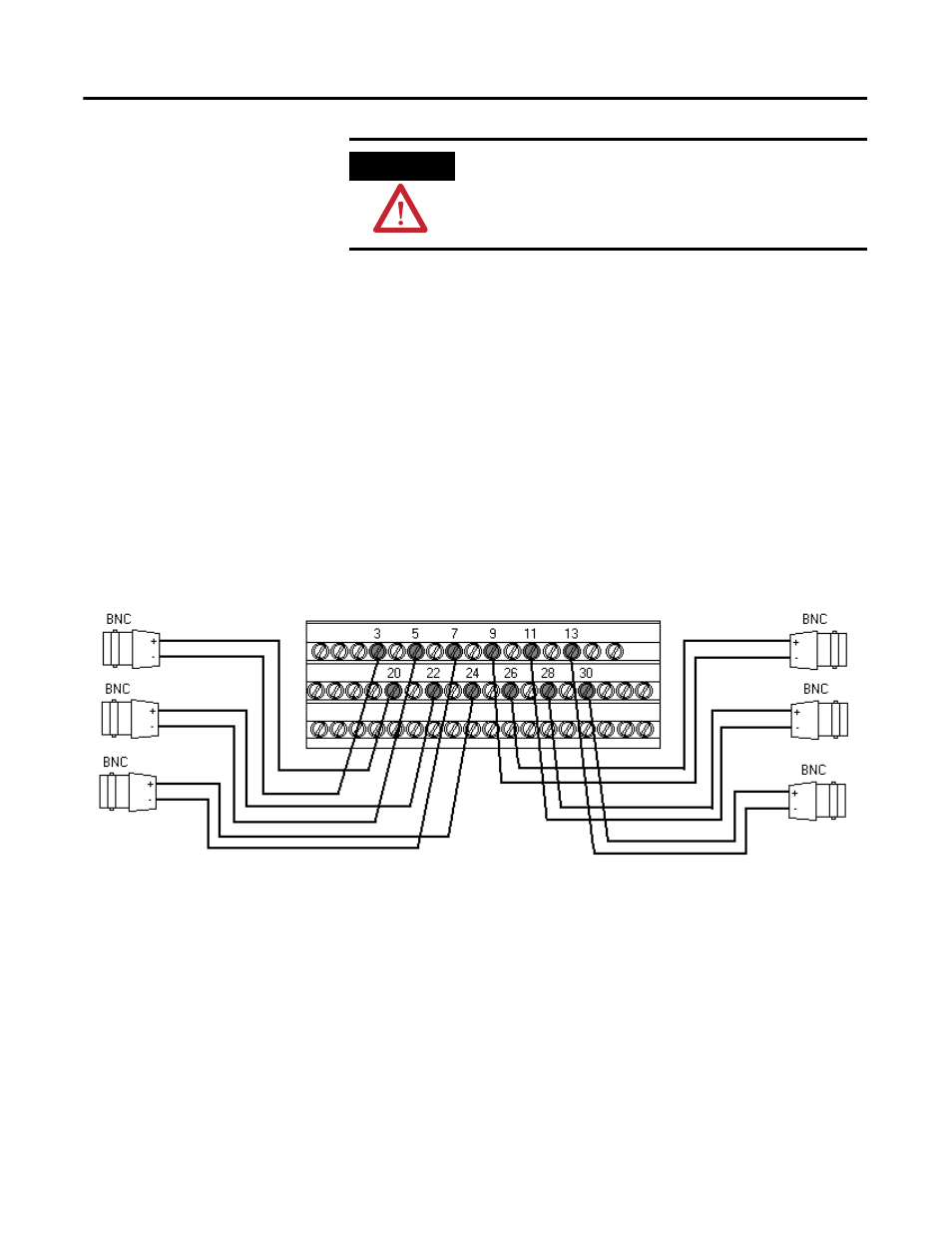

Figure 2.9 shows the buffered output connections for the modules.
Figure 2.9 Buffered Output Connections
Connecting 4-20mA Current Loop Output (XM-161)
The XM-161 includes six 4-20mA output channels. The 4-20mA outputs are
arranged into two isolated banks of three outputs each. Each bank of 4-20mA
outputs is electrically isolated from the other bank and from circuit power and
ground. The isolation provided is up to 250V.
ATTENTION
The power connections are different for different XM
modules. Refer to the installation instructions for your
specific XM module for complete wiring information.
Channel 1
Channel 2
Channel 3
Channel 4
Channel 5
Channel 6
