Page 10

Publication GMSI10-UM025C-EN-P - August 2010
2 Introduction
The modules also include a buffer output for each input signal; can connect up
to two XM-441 Expansion Relay modules, providing a total of eight relays, and
collect trend data based on an event such as a relay actuation.
The XM-160, XM-161, and XM-162 can operate stand-alone, or they can be
deployed on a standard or dedicated DeviceNet network where they can
provide real-time data and status information to other XM modules, PLCs,
distributed control systems (DCS), and Condition Monitoring Systems. The
Direct Vibration modules can be configured remotely via the DeviceNet
network, or locally using a serial connection to a PC or laptop. Refer to
Chapter 3 for a list of the configuration parameters.
XM-160, XM-161, and
XM-162 Module
Components
The XM-160, XM-161, and XM-162 consist of a terminal base unit and an
instrument module. The XM-160, XM-161 and XM-162 Direct Vibration
modules and the XM-947 Direct Vibration Terminal Base are shown below.

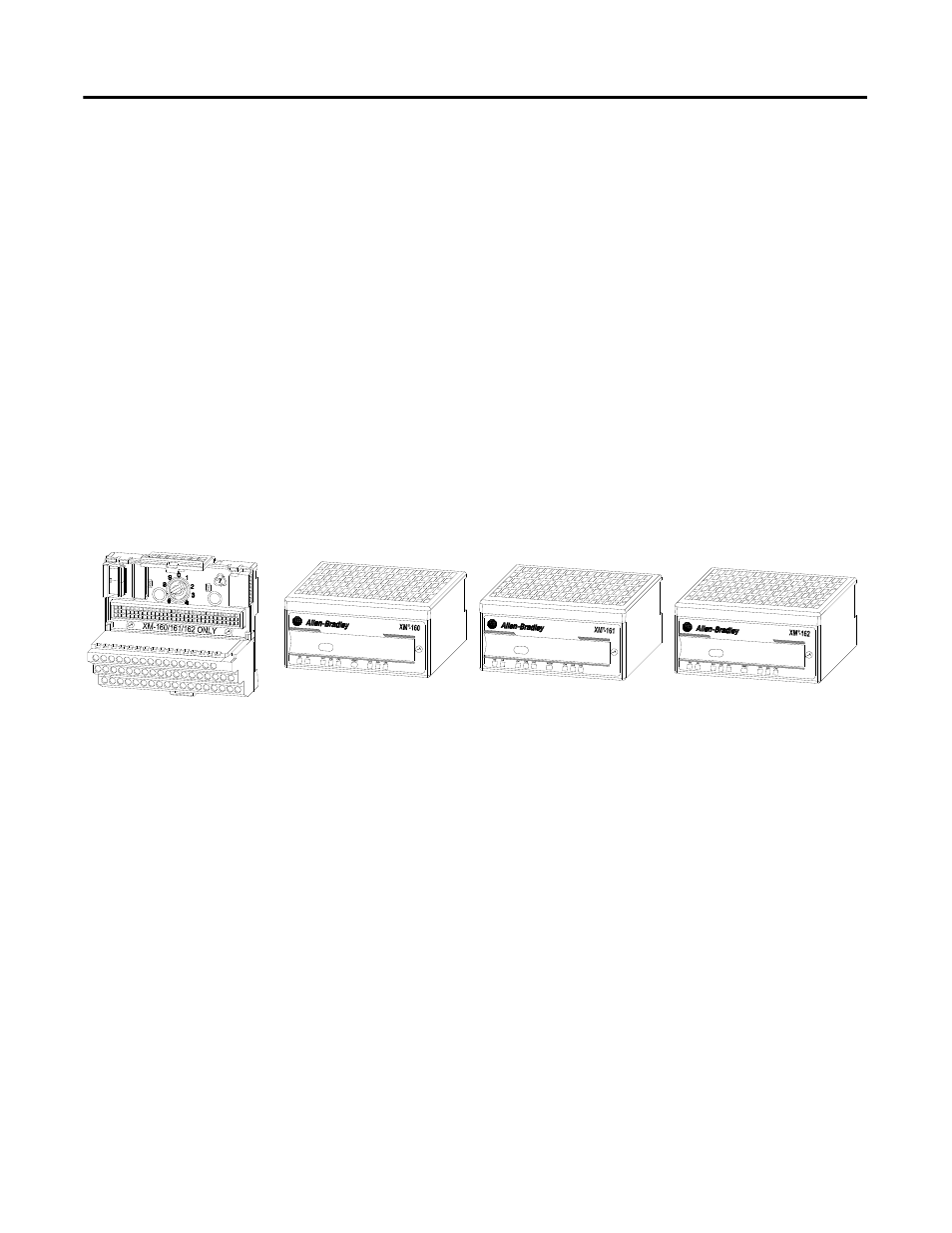

Figure 1.1 XM-160/161/162 Module Components
• XM-947 Direct Vibration Module Terminal Base - A DIN rail mounted
base unit that provides terminations for all field wiring required by XM
Direct Vibration modules, including the XM-160, XM-161, and
XM-162.
DIRECT VIBRATION
DIRECT VIBRATION w/4-20mA OUTP
UT
1440-VDRS06-00RH
1440-VDRS06-06RH
1440-VDRP06-00RH
DIRECT VIBRATION w/PROBE POW
ER
XM-947 Direct Vibration Module
Terminal Base Unit
Cat. No. 1440-TB-H
XM-160 Direct Vibration
Module
Cat. No. 1440-VDRS06-00RH
XM-161 Direct Vibration with
4-20mA Module
Cat. No. 1440-VDRS06-06RH
XM-162 Direct Vibration with
Power Module
Cat. No. 1440-VDRP06-00RH
