Installing the XM-160/161/162 Direct Vibration Module 9

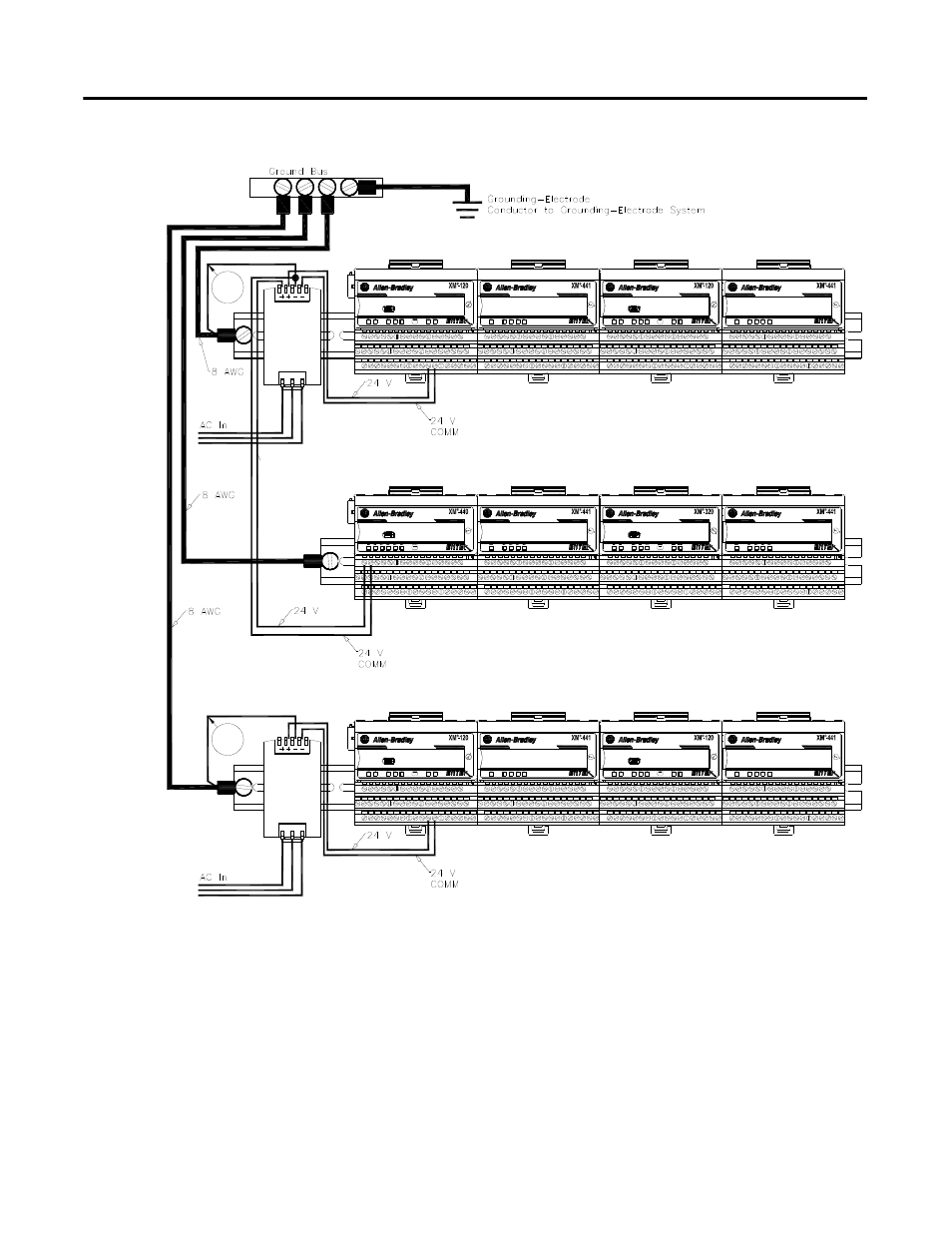

Figure 2.2 XM System DIN Rail Grounding
1 Use 14 AWG wire.
The grounding wire can be connected to the DIN rail using a DIN Rail
Grounding Block (Figure 2.3).
Power
Supply
