Rockwell Automation Publication 2080-UM001D-EN-E - September 2012 87
Quickstarts Appendix C

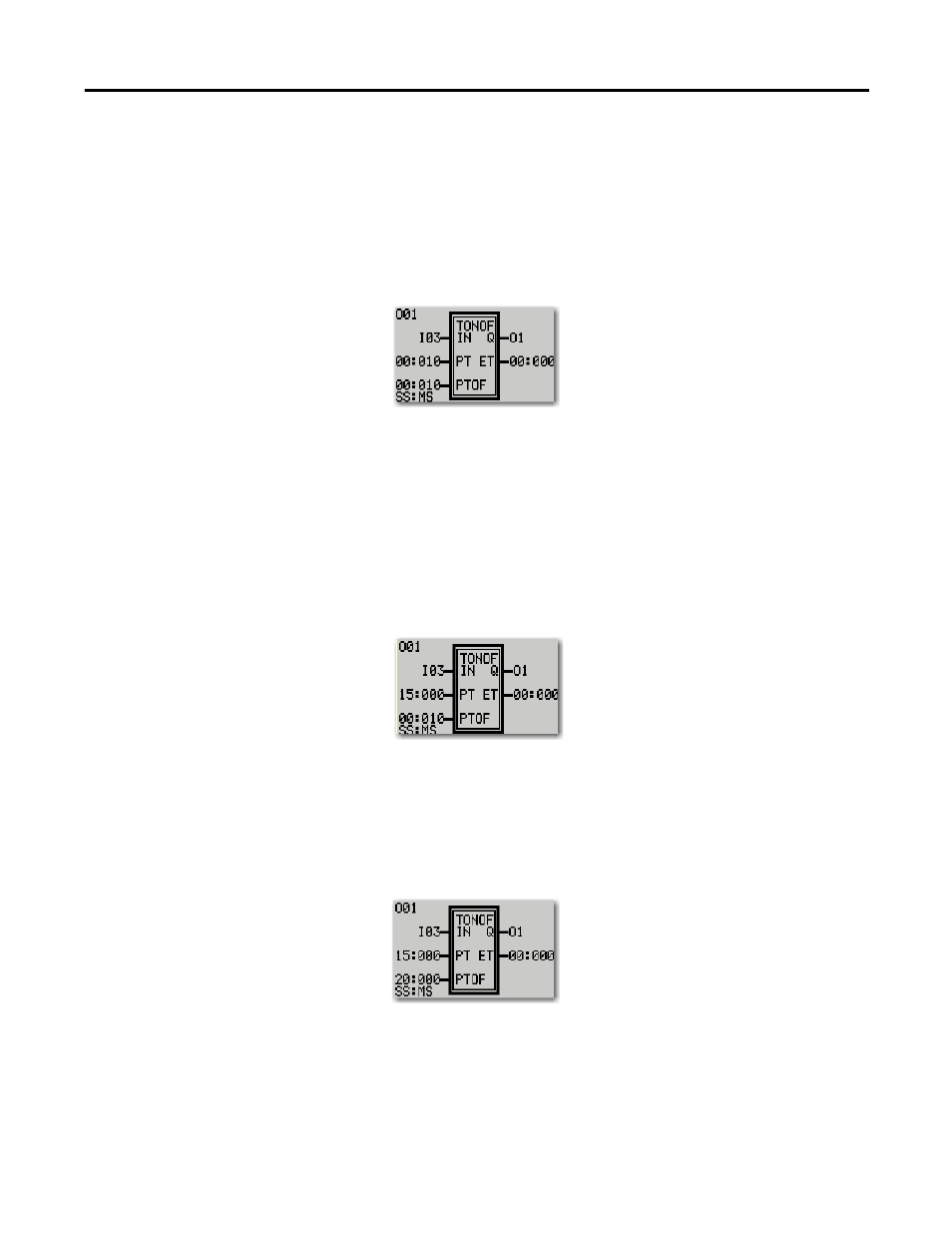

6. Press the DOWN arrow button twice to go to TONOFF instruction.
7. Press the RIGHT arrow button once to select the IN parameter field. This
input marks the start for the internal timer.
Press the UP arrow button once to change IN parameter value to I03.
8. Press the RIGHT arrow button once to select the Time-Resolution
parameter field. This input determines the unit of internal timer.
Press the DOWN arrow button once to change time setting to SS:MS.
9. Press the RIGHT arrow button once to select the first entry in PT
parameter field.
a. Press the UP arrow button once to get the digit value of 1.
b. Press the RIGHT arrow button once to select the second digit entry in
PT parameter field.
c. Press the UP arrow button five times to get the digit value of 5.
d. Press the RIGHT arrow button twice to select the fourth digit entry in
PT parameter field.
e. Press the DOWN arrow button once to get the digit a zero.
10. Press the RIGHT arrow button once to select the first digit entry in PTOF
parameter field.
a. Press the UP arrow button twice to get the digit value of 2.
b. Press the RIGHT arrow button 3 times to go to the fourth digit entry
for the PTOF parameter field.
c. Press the DOWN arrow button once to make this digit a zero.
11. Press the OK button to submit the parameter changes.
A screen confirms your request to save the parameter changes. Press the
OK button to save the changes.
