Hardware Overview
Hardware Features The Micro810 12-pt controllers are smart relays with high current relay output
models and can be configured through the embedded LCD display without
programming software. It can also function as a micro PLC with the same
programming capabilities as the other Micro800 controllers.
Micro810 controllers do not support Micro800 plug-in modules, but do support
a USB adapter, and an LCD module, which can be used as a backup memory
module.
24V DC powered controllers accommodate any 24V DC output power supply
that meets minimum specifications such as the optional Micro800 power supply
(2080-LC10-12QWB, 2080-LC10-12QBB only).

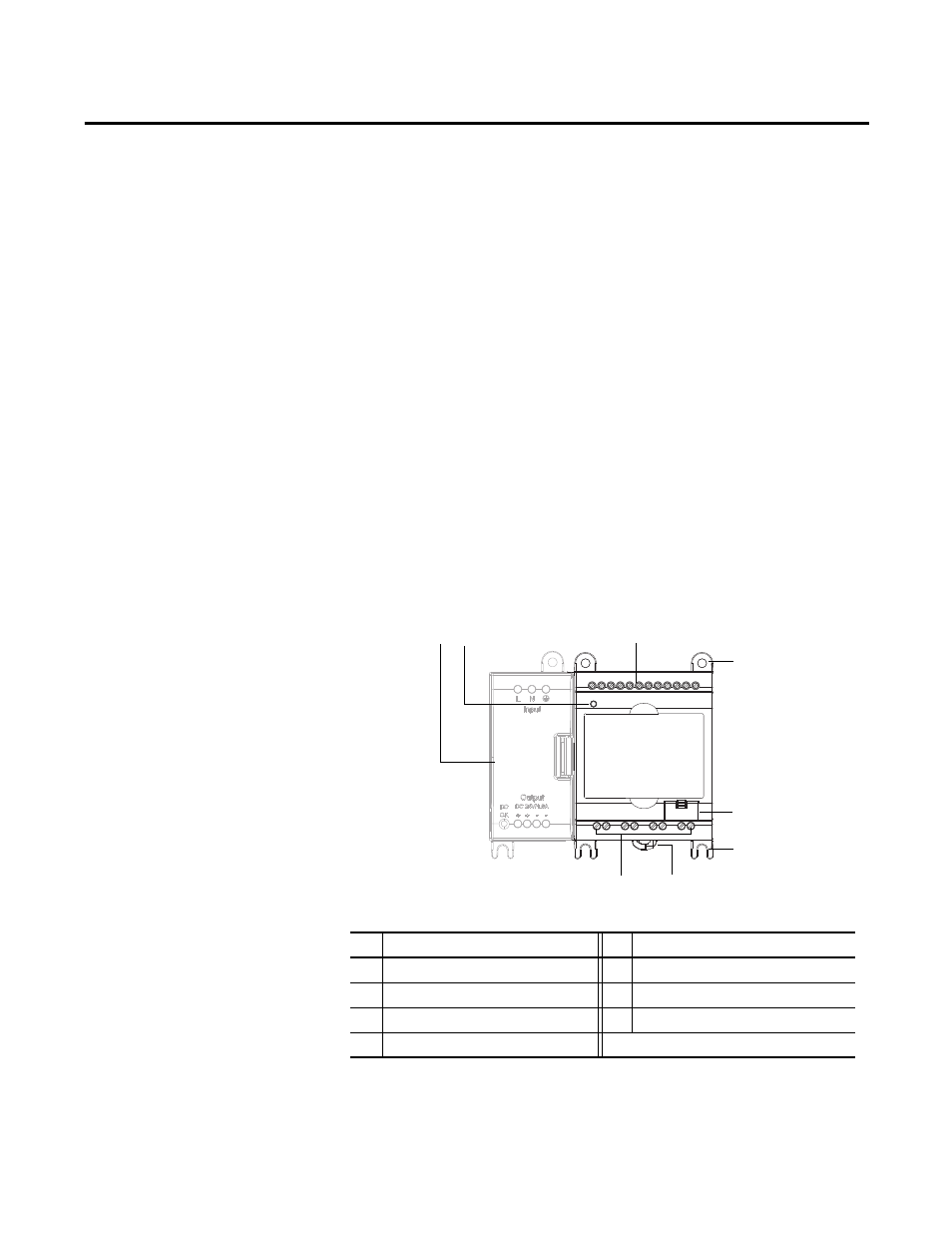

Micro810 12-Point Controllers
Controller Description
Description Description
1 Optional power supply 5 USB port (for use with USB Adapter only)
2 Status indicator 6 DIN rail mounting latch
3 Input terminal block 7 Output terminal block
4 Mounting screw hole/ mounting foot
1 2 3
5
6 7
45052
4
4
