68

Rockwell Automation Publication 2080-UM001D-EN-E - September 2012

Appendix C Quickstarts

2. The status display shows PROG mode, the day and time, and the I/O

status. Press the ESC and OK buttons buttons at the same time to go to the
Main Menu.

3. Press the DOWN arrow button to navigate to SR Function. Press the OK

button. The function block for controlling Output 0 is displayed.

4. Press the UP arrow button once to navigate to the function block

controlling Output 1.

5. Press the RIGHT arrow button once. The instruction parameter field is

selected and shows the CTU instruction.

6. Press the RIGHT arrow button once to select the CLK parameter field.

This parameter triggers counting.

7. Press the RIGHT arrow button once to select the RESET parameter field.

This parameter input forces a counter reset.

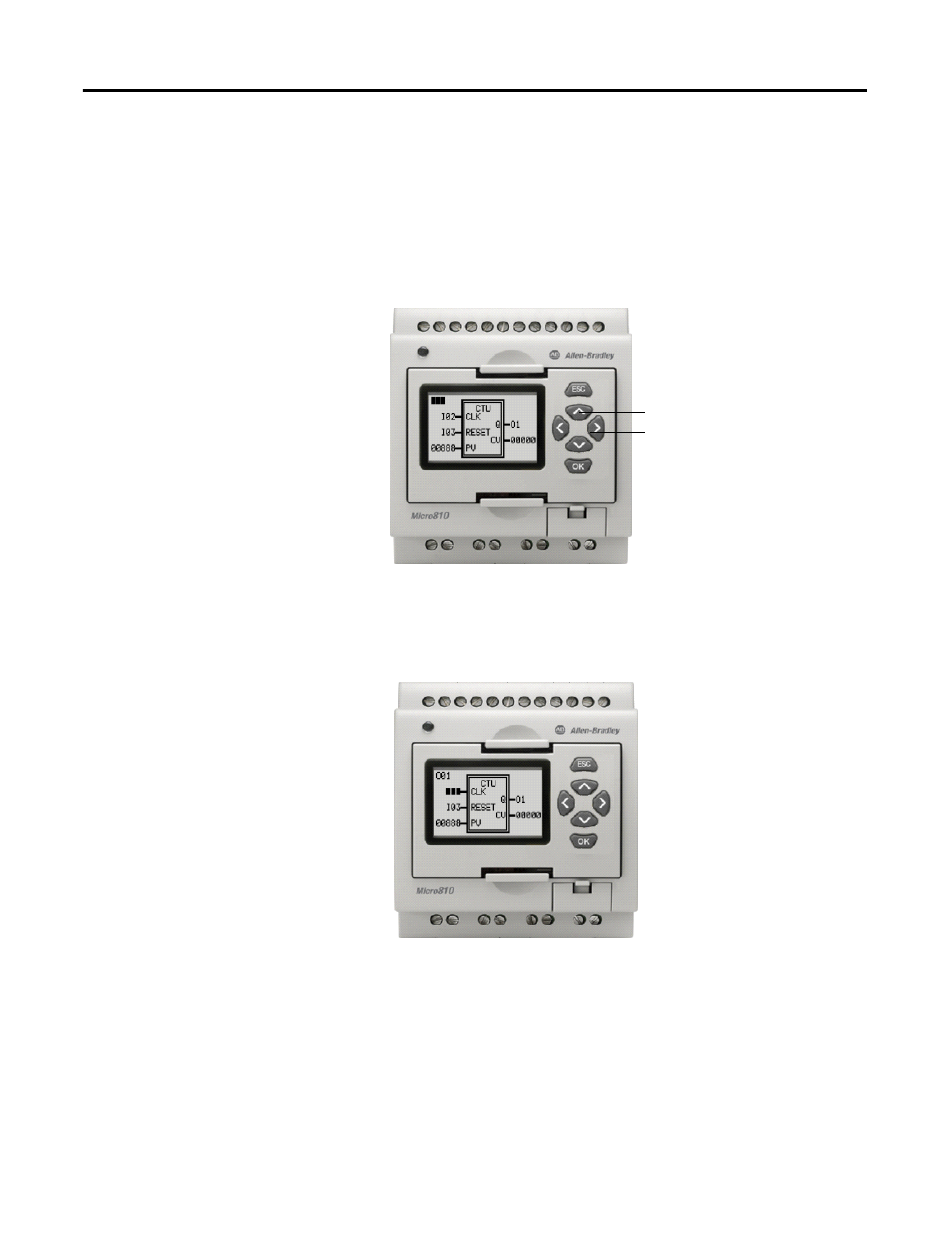

8. Press the RIGHT arrow button thrice to move to the first non-zero entry

in the Preset Value (PV) parameter field.
a. Press the UP arrow button twice to turn this digit to zero.
b. Press RIGHT arrow button once to position to the next non-zero digit

in the PV field. Press the UP arrow button twice to get the digit value of
zero.

UP
RIGHT
