Quickstarts Appendix C
c. Press RIGHT arrow button once to go to the last digit. Press the
DOWN arrow button five times to set the last digit to 3.
9. Press the RIGHT arrow button once to navigate to the screen selection
parameter.
10. Press the OK button to submit the parameter changes.
A message prompts you to save the parameter changes. Press the OK
button to save the changes.
Test the CTU Predefined Function
The CTU instruction increments the counter whenever input CLK makes a
transition from low to high. The instruction compares the current value CV with
PV value

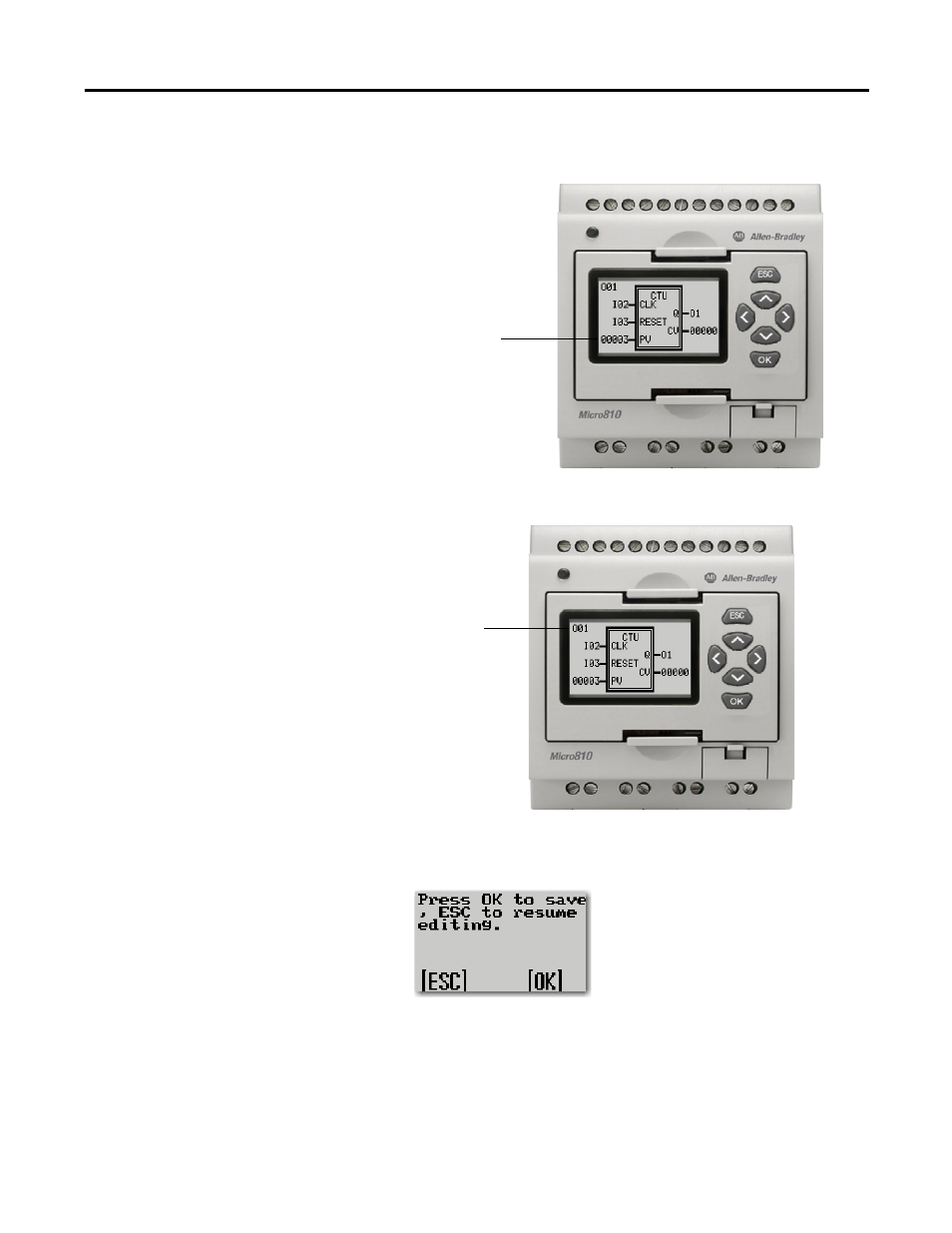

Screen
selection
parameter
