c. Press the RIGHT arrow button twice to get to the fifth digit entry in
the OFF parameter field, and press the UP arrow button once to get the
digit value of 1.
11. Press the OK button to submit the parameter changes.
A screen confirms your request to save the parameter changes. Press the
OK button to save the changes.
Test the TOW Predefined Function

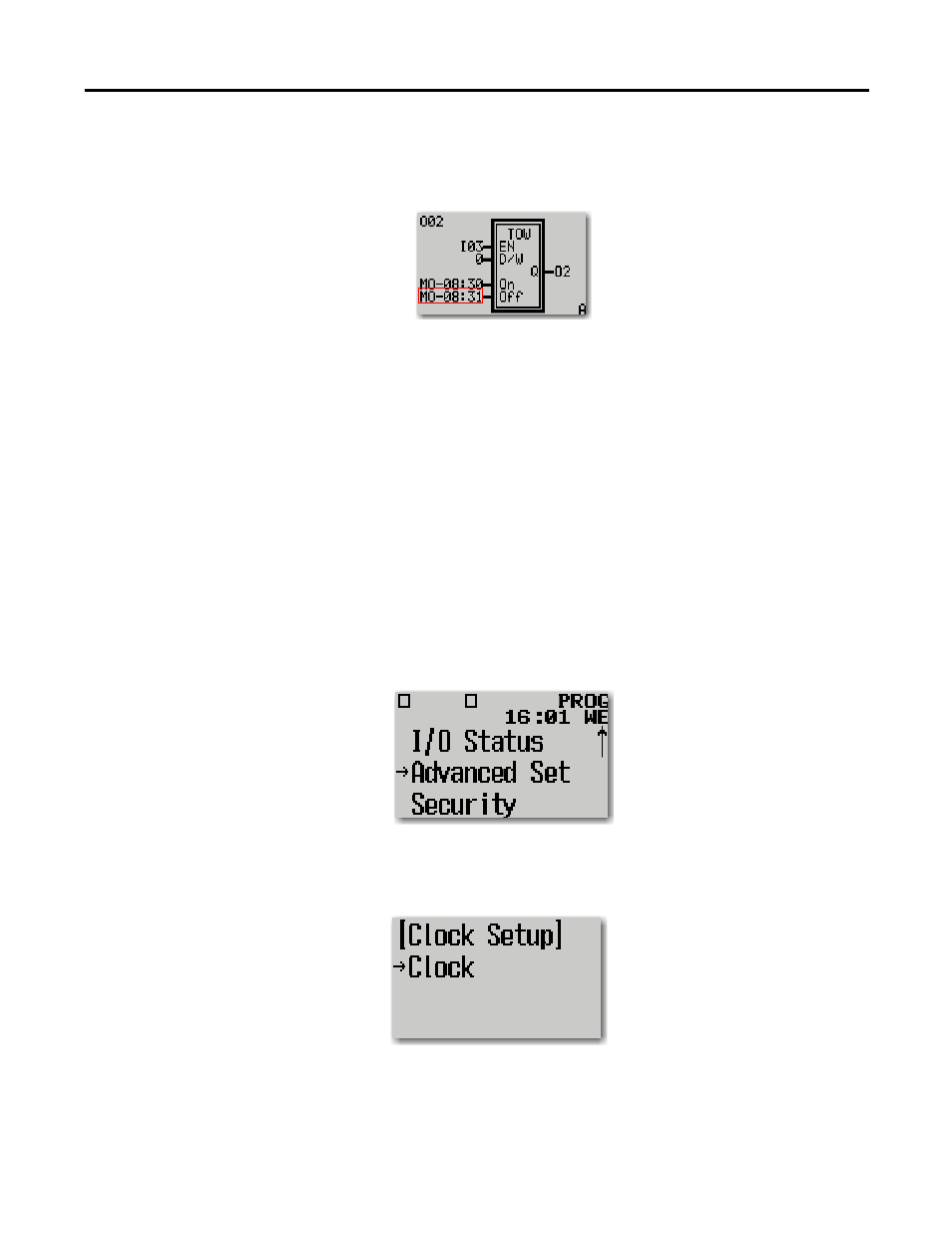

The TOW instruction turns on output if the value of real-time clock is within the
range of the Day-Time setting for any of the four channels. To test the operation,
we connect a push button to I03, and a pilot light to output O02.
Set up the Clock for Testing
1. Press the ESC button to return to the Main Menu.
2. Press the DOWN arrow button thrice to go to Advanced Set. Press the
OK button.
3. Press the DOWN arrow button thrice to go to Clock Setup then press the
OK button.
Press the OK button again on Clock.
