2. Press the UP arrow button once to select Mode Switch and press the OK

button.

3. Press the DOWN arrow button once to select RUN mode. Press the OK

button.

4. Press the OK button to confirm the RUN mode selection.

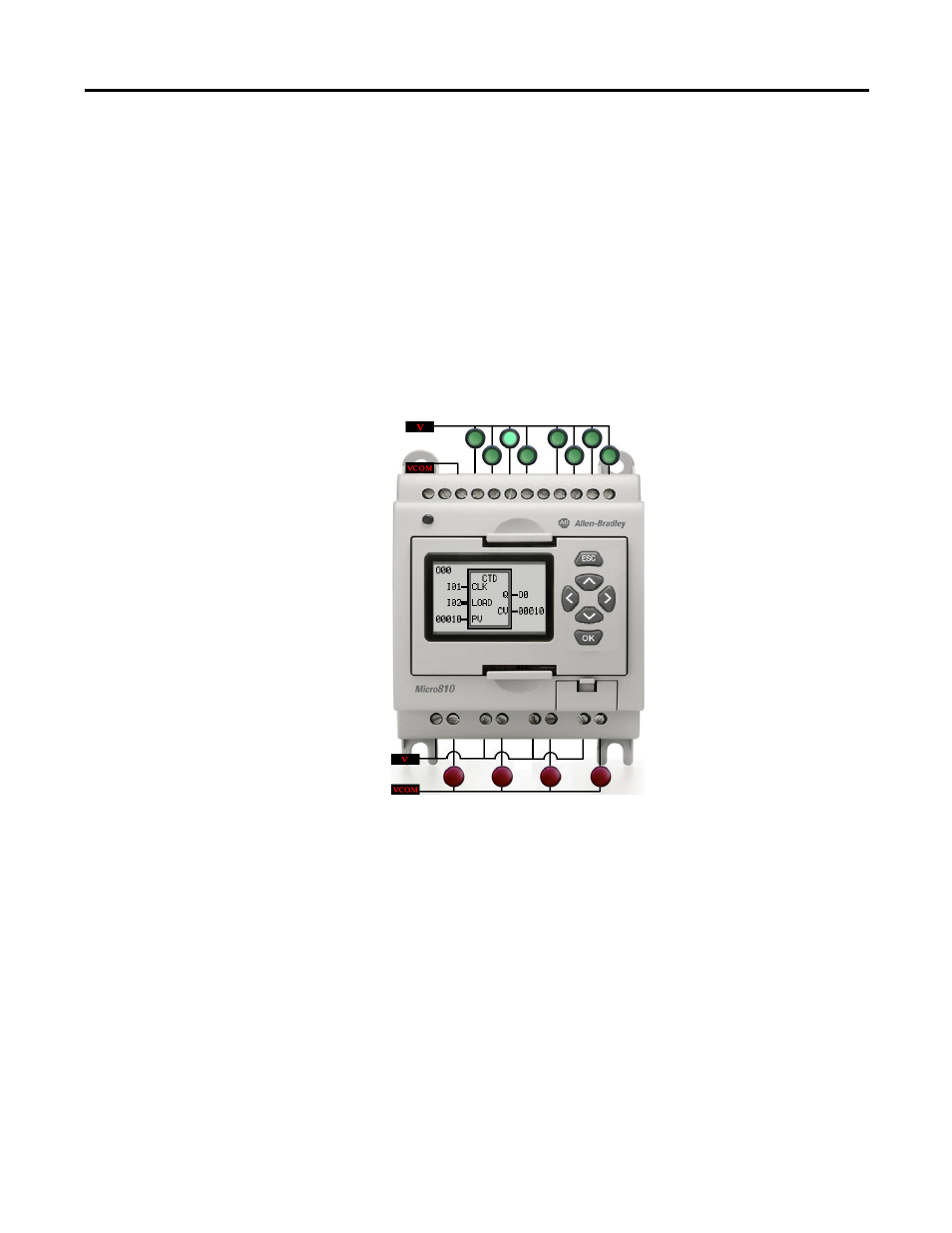

5. The screen indicates that the controller is in RUN mode. Press the ESC

button to return to the Main Menu.

6. Press the DOWN arrow button once and press the OK button to select SR

FUNCTION.

7. Press the load push button connected to I02. The current value CV reloads

to 00010, and the pilot light turns off. Then, release the load push button.
