Rockwell Automation 2080-LC10-12DWD Micro810 Programmable Controllers User Manual User Manual
Page 79
Rockwell Automation Publication 2080-UM001D-EN-E - September 2012
71
Quickstarts Appendix C

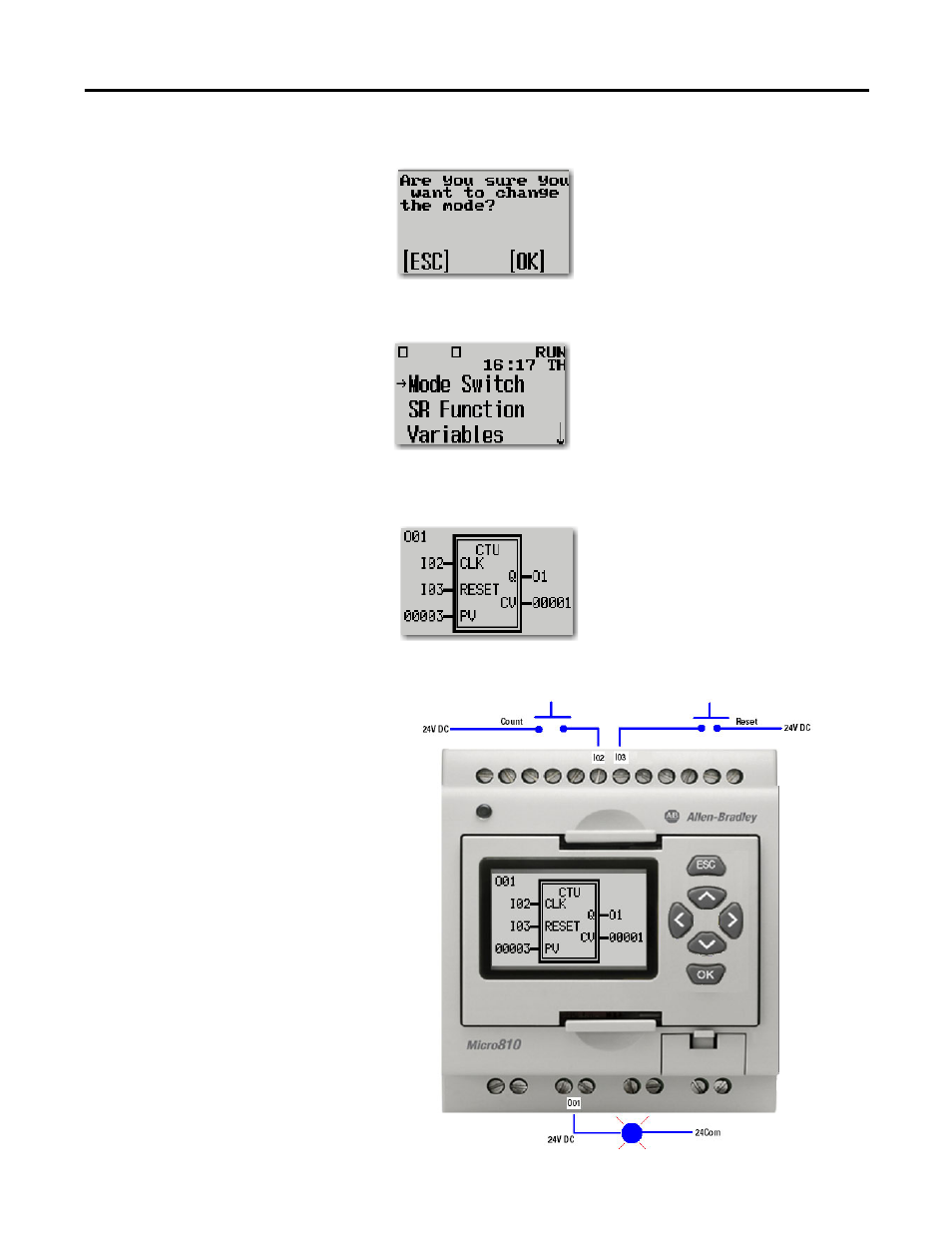

4. Press the OK button to confirm the RUN mode selection.
5. The screen indicates that the controller is in RUN mode. Press the ESC
button to return to the Main Menu.
6. Press the DOWN arrow button once to navigate to SR Function.
a. Press the UP arrow button once to go to CTU function block.
7. Press and release the count push button. The current value CV increments
to 00001.
