Rockwell Automation Publication 2080-UM001D-EN-E - September 2012
93
Quickstarts Appendix C

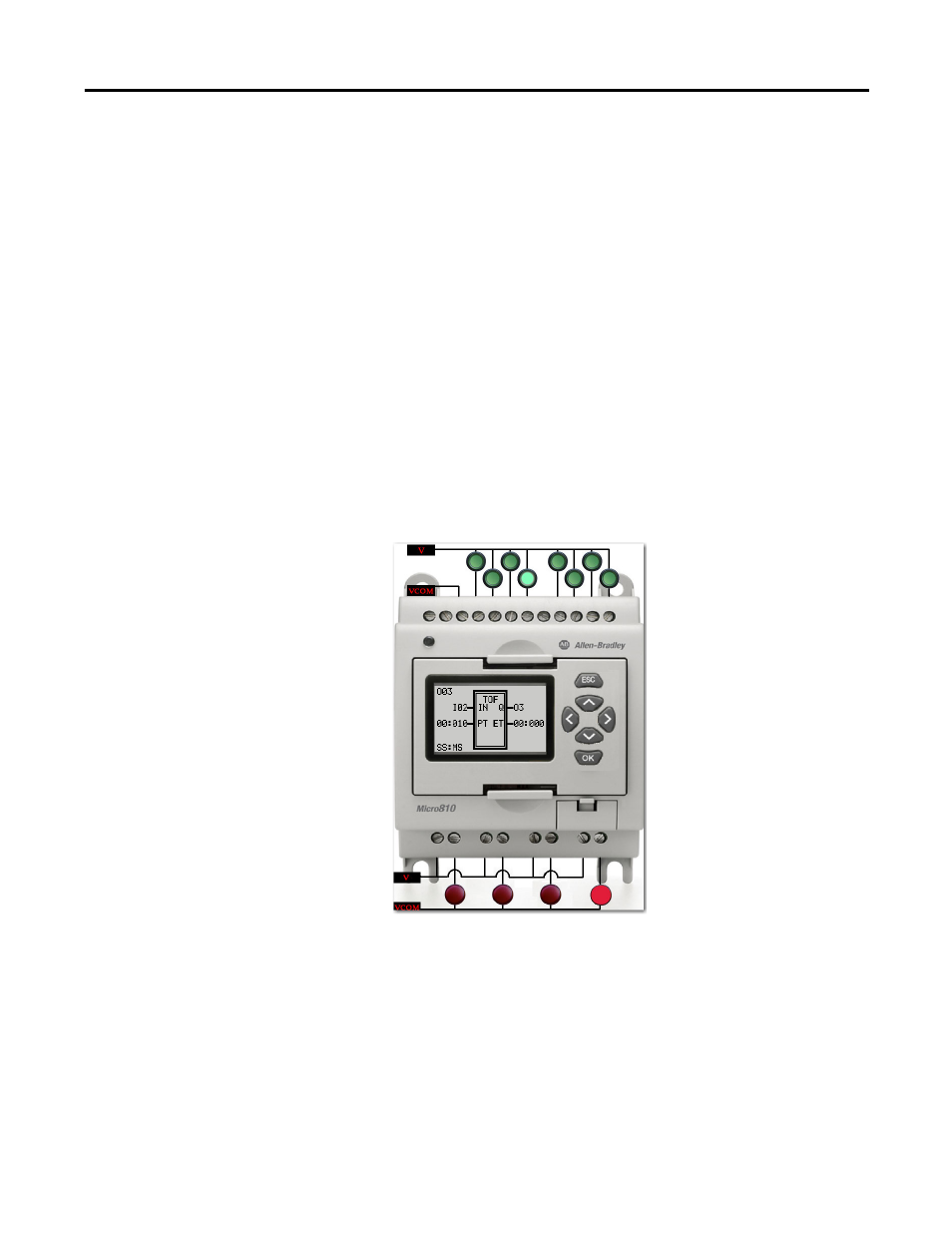

given value PT, it de-energizes the output. To test the operation, we connect a
push button to I02, and a pilot light to output O03.
1. Press the ESC button to return to the Main Menu.
2. Press the UP arrow button once to select Mode Switch. Press the OK
button.
3. Press the DOWN arrow button once to select RUN mode. Press the OK
button.
4. Press the OK button to confirm the RUN mode selection.
5. The screen indicates that the controller is in RUN mode. Press the ESC
button to return to the Main Menu.
6. Press the DOWN arrow button once to select SR FUNCTION. Press the
OK button.
7. Press the DOWN arrow button once to select Output 3.
8. Press the push button connected to I02, the output O03 is energized and
the pilot light turns on.
9. Release the push button connected to I02. The ET parameter starts to
elapse. When the current ET = PT, the output O03 is de-energized, and
the pilot light turns off.
