Formatting and Interpreting Data Blocks
Chapter 7
7Ć30
D/A = maximum D/A voltage
IG = initial gain
These formulas include an allowance for a 127% feedrate override factor.
These formulas apply to both ipm and mmpm.
Jog Rate
The high and log jog rate words (Figure 7.20) specify the speeds at which
you can jog the axis. You can jog the axis only in manual mode. Program
the values in BCD format. The operator can select jog speed (high or
low) by controlling the jog rate select bit in the command block.

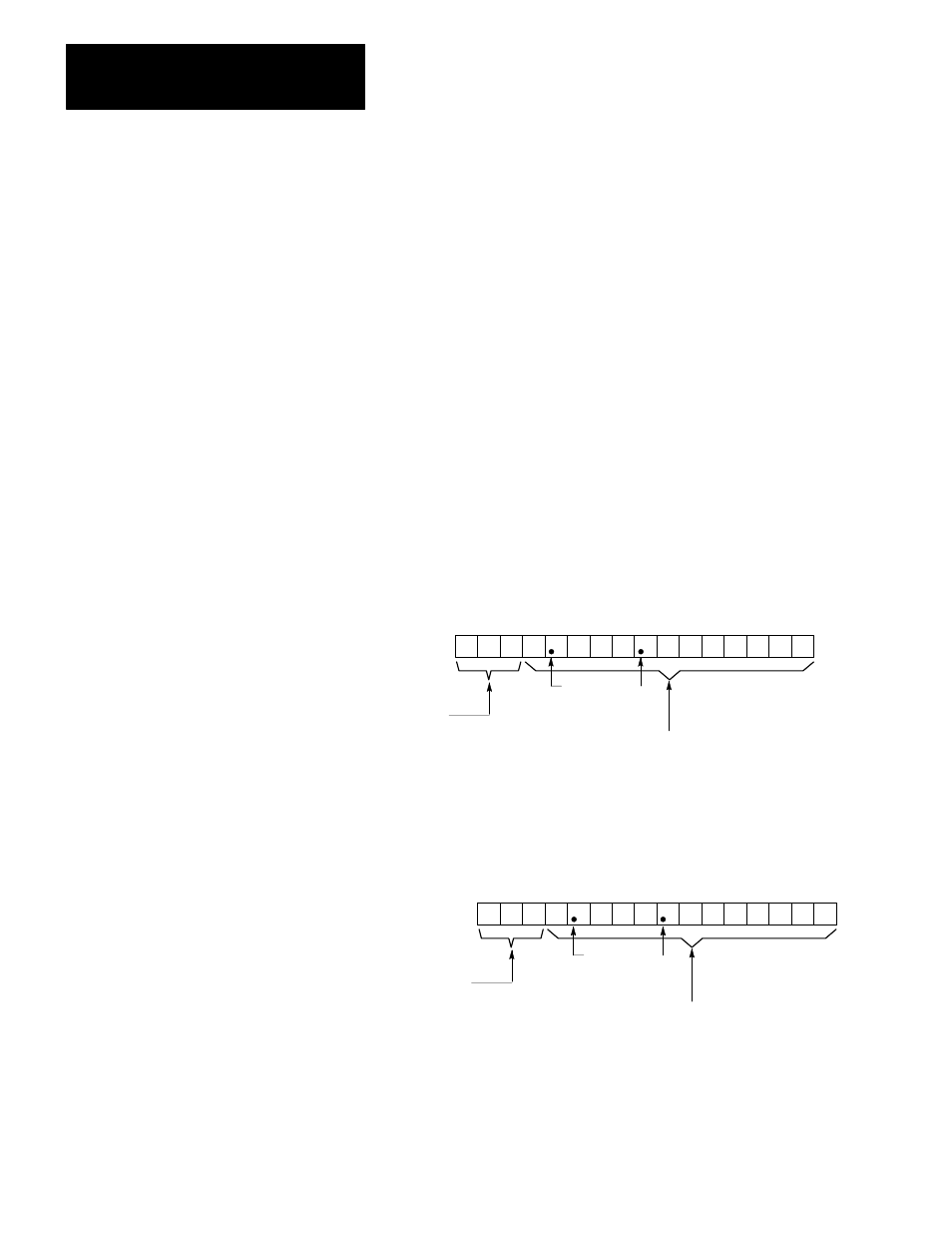

Figure 7.20
Jog Rate Words
17 16 15 14 13 12 11 10 07 06 05 04 03 02 01 00
High Jog Rate
Word 13 (Axis 1)
Word 32 (Axis 2)
Word 51 (Axis 3)
Multiplier
001 = x 10 -1
000 = x 10 0
010 = x 10
100 = x 10
110 = x 10
111 = x 10
1
2
3
4
inch
metric
This BCD value (0.999 ipm or
19.99 mmpm max) times the
multiplier is the high jog rate. It must
not be higher than the rapid traverse
rate.
11042
17 16 15 14 13 12 11 10 07 06 05 04 03 02 01 00
Low Jog Rate
Word 14 (Axis 1)
Word 33 (Axis 2)
Word 52 (Axis 3)
Multiplier
001 = x 10 -1
000 = x 10 0
010 = x 10
100 = x 10
110 = x 10
111 = x 10
1
2
3
4
This BCD value (0.999 ipm or
19.99 mmpm max) times the
multiplier is the low jog rate. It must
be lower than the high jog rate.
decimal
point
decimal
point
inch
metric
decimal
point
point
decimal
