Appendix
C
1756-HSC Module History
Introduction
This appendix describe’s Logix5000 profiles for 1756-HSC modules:
• Series A, firmware revisions 1.x, 2.x, software versions 15…18.
• Series B, firmware revision 3.x, software versions 15…18.

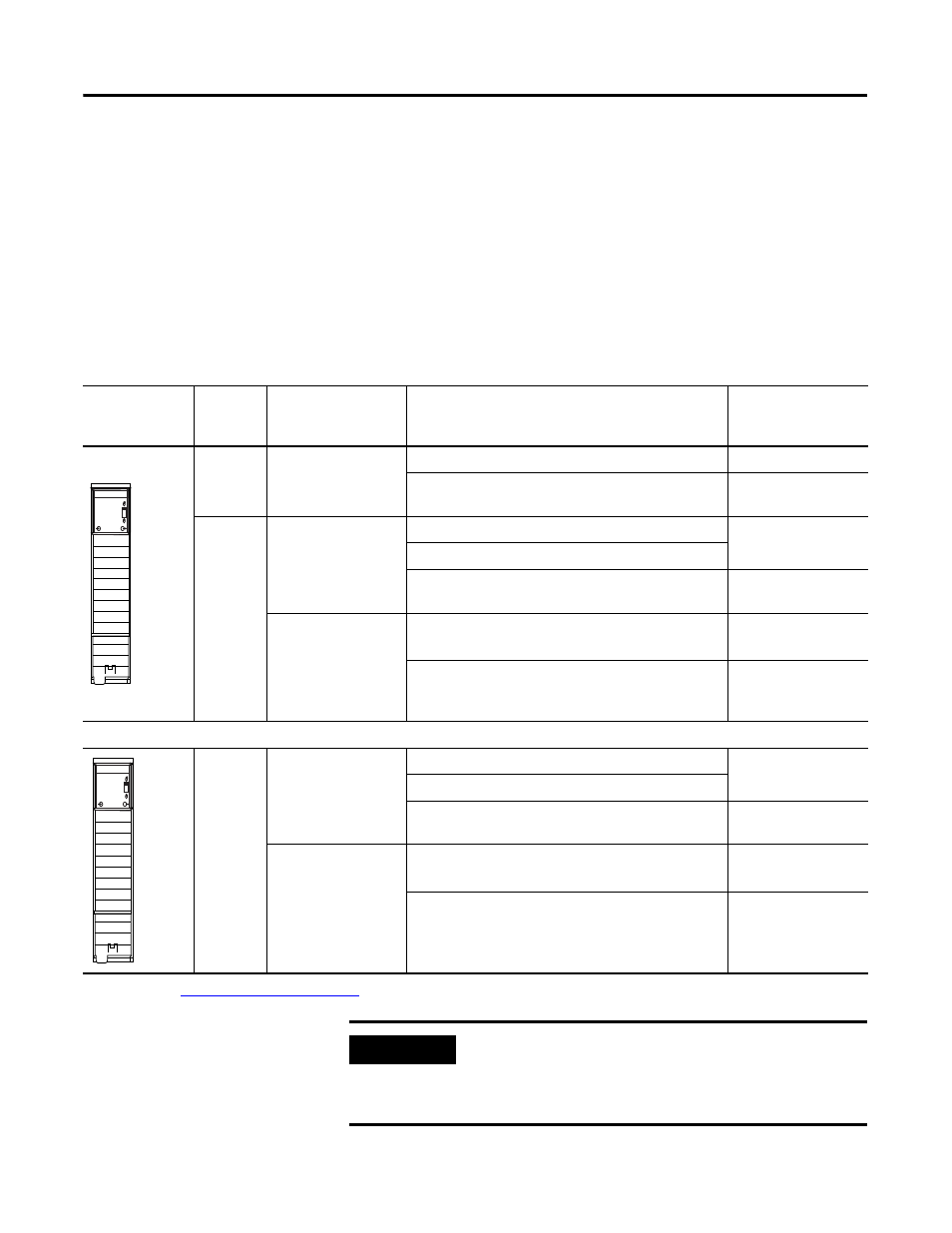

The table shows the profiles available for your 1756-HSC module based on the
series, firmware, and software version that you are running.
If you have
module
Using
firmware
revision
And your desired
functionality is
Then use the Logix5000 profile Comment
Series
A
1. x
Original
(see Important below)
Versions earlier than 15 => Thin profile/tags only Tag user-interface only
Version 15 and later => Full profile support Tags with a GUI
interface
2. x
Original
(see Important below)
Versions earlier than 15 => Thin profile/tags only Exact Match Keying
not supported
Versions 15…17 => Full profile support
Version 18 and later => Select Major Revision 2
and HSC Data Comm Format
Rollover and Preset
in Output Tags
Versions earlier than 18 => Use generic profile/ HSC
ACD File
(1)
Tags with a GUI
interface
Version 18 and later => Select Major Revision 2
and HSC Data-extended Comm Format Tags with a GUI
interface. Totalizer
tags not active.
Series
B
3. x
Original
(see Important below)
Versions earlier than 15 => Thin profile/tags only Exact Match Keying
not supported
Versions 15…17 => Full Profile Support
Version 18 and later => Select Major Revision 3
and HSC Data Comm Format
Rollover and Preset
in Output Tags
Period/Continuous
Rate
Totalizer
Versions earlier than 18 => Use generic profile/HSC
ACD File
(1)
Version 18 and later => Select Major Revision 3
and HSC Data-extended Comm Format
(1) File is located at http://samplecode.rockwellautomation.com.
A O
K
COUNTER
B Z
O
0
DC I/O
A B Z 0 0
O
1 1 1
0 1
O O
2 3
A
O
K
COUNTER
B Z
O
0
DC I/O
A B Z
0 0
O
1 1 1
0 1 O O
2 3
IMPORTANT
‘Original’ represents the four primary modes of operation
initially designed for the 1756-HSC/A module, firmware
revision 1.
x. These modes are Counter, Encoder x1, Encoder x4,
and Frequency.
