64 Configure the 1756-HSC Module
Set RPI
The Connection tab on the Module Properties dialog box lets you enter a
requested packet interval (RPI). The RPI guarantees the slowest rate at which
the pulse count values will be produced to the owner-controller.
The module’s actual data transfer rate may be faster than the RPI setting. But,
the RPI provides a defined, maximum period of time when data is transferred
to the owner-controller.

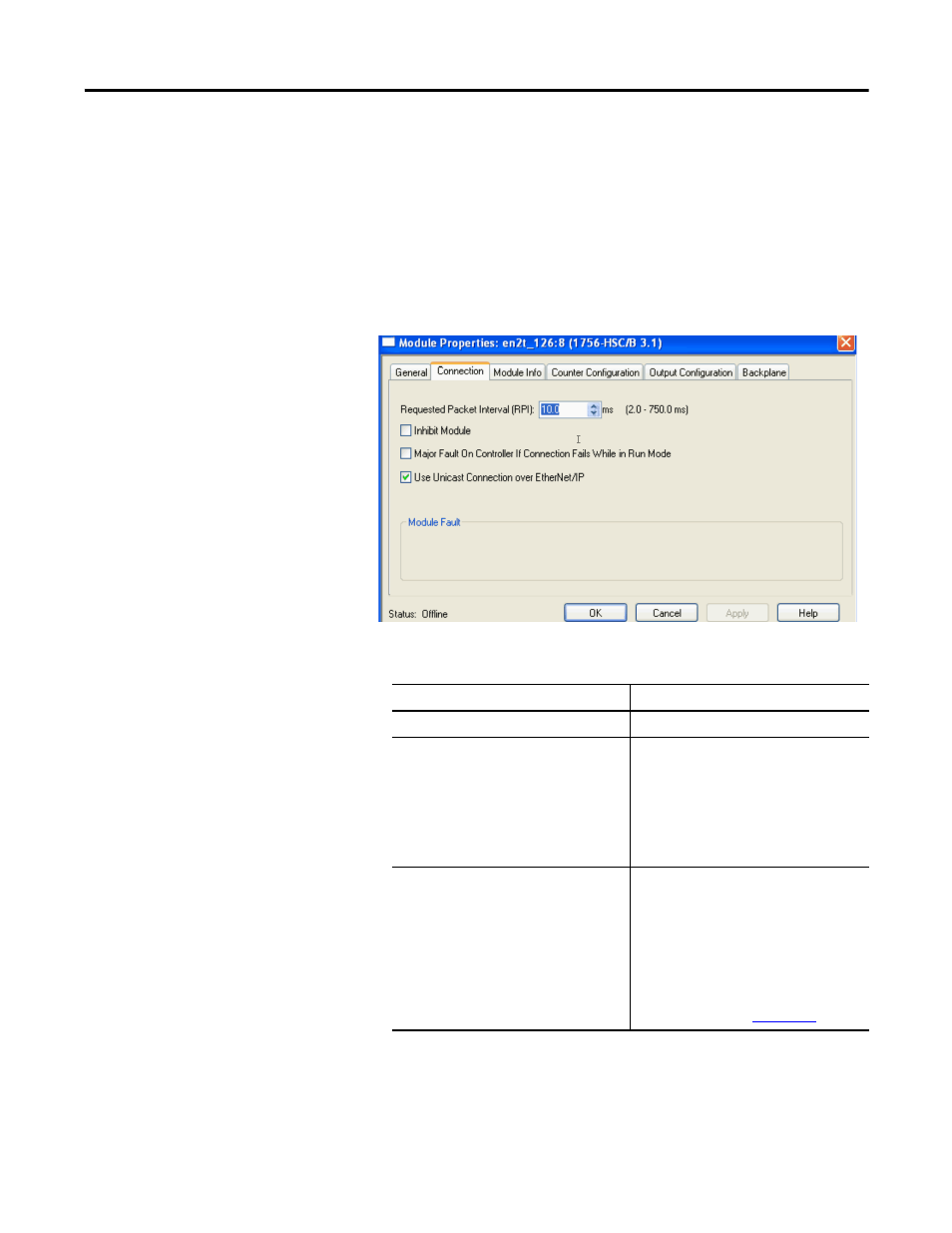

1. Choose from the options in the Connection tab.
Field Description
Requested Packet Interval (RPI) Enter an RPI value or use the default.
Inhibit Module Check the box to prevent
communication between the
owner-controller and the 1756-HSC
module. This option allows for
maintenance of the 1756-HSC module
without faults being reported to the
controller.
Major Fault On Controller If Connection
Fails While in Run Mode Check the box to create a major fault if
there is a connection failure with the
1756-HSC module while in Run mode.
For important information on this
checkbox, see ‘Configure a Major Fault
to Occur’ in the Logix5000 Controllers
Information and Status Programming
Manual, publication
1756-PM015 .
