Rockwell Automation Publication 1756-UM007C-EN-P - November 2011
100 1756-HSC Module History

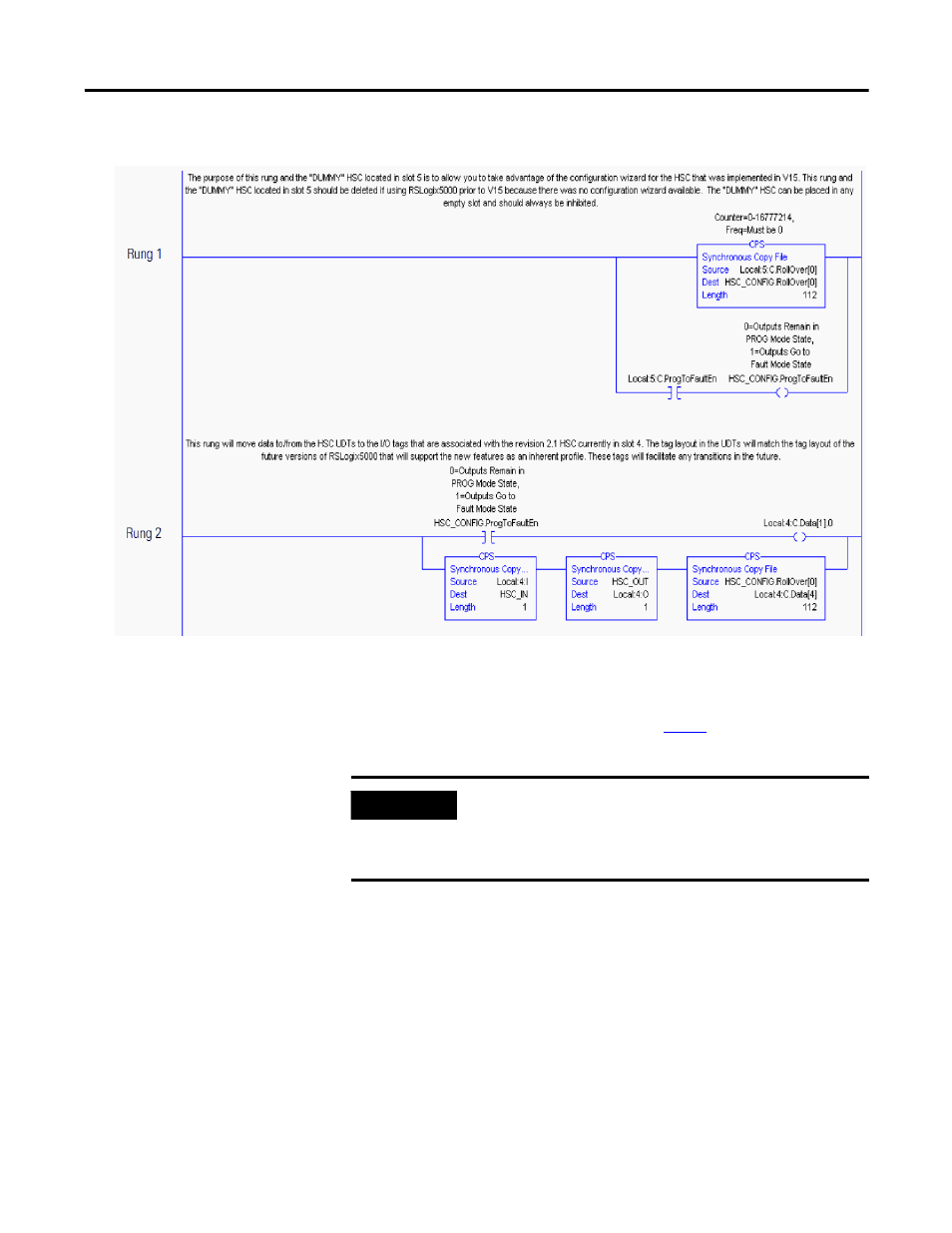

2. Double-click the .ACD file to access the ladder logic.
3. Paste the rungs into a routine of your 1756-HSC project.
4. If you are using RSLogix 5000 software, version 13 or earlier, or you did
not add an unused 1756-HSC module in step 13 , delete rung 1 of the
copied and pasted ladder logic.
A ladder logic routine also is suggested if you are using the
HSC Data-extended Comm Format. This option allows you to change
the output, rollover, and preset configuration settings in the output tags.
The duplication of tag data could result in values being overridden when
the HSC Data-extended Comm Format is selected.
IMPORTANT
If you do not leave the unused 1756-HSC module in your
project, or you have no other 1756-HSC module in your project,
you cannot export and then re-import the project as the
module-defined tags will not import properly.
