Rockwell Automation 1756-HSC ControlLogix High Speed Counter Module - Manual (Page 43)

Rockwell Automation Publication 1756-UM007C-EN-P - November 2011
Install and Wire the ControlLogix High-speed Counter Module 43

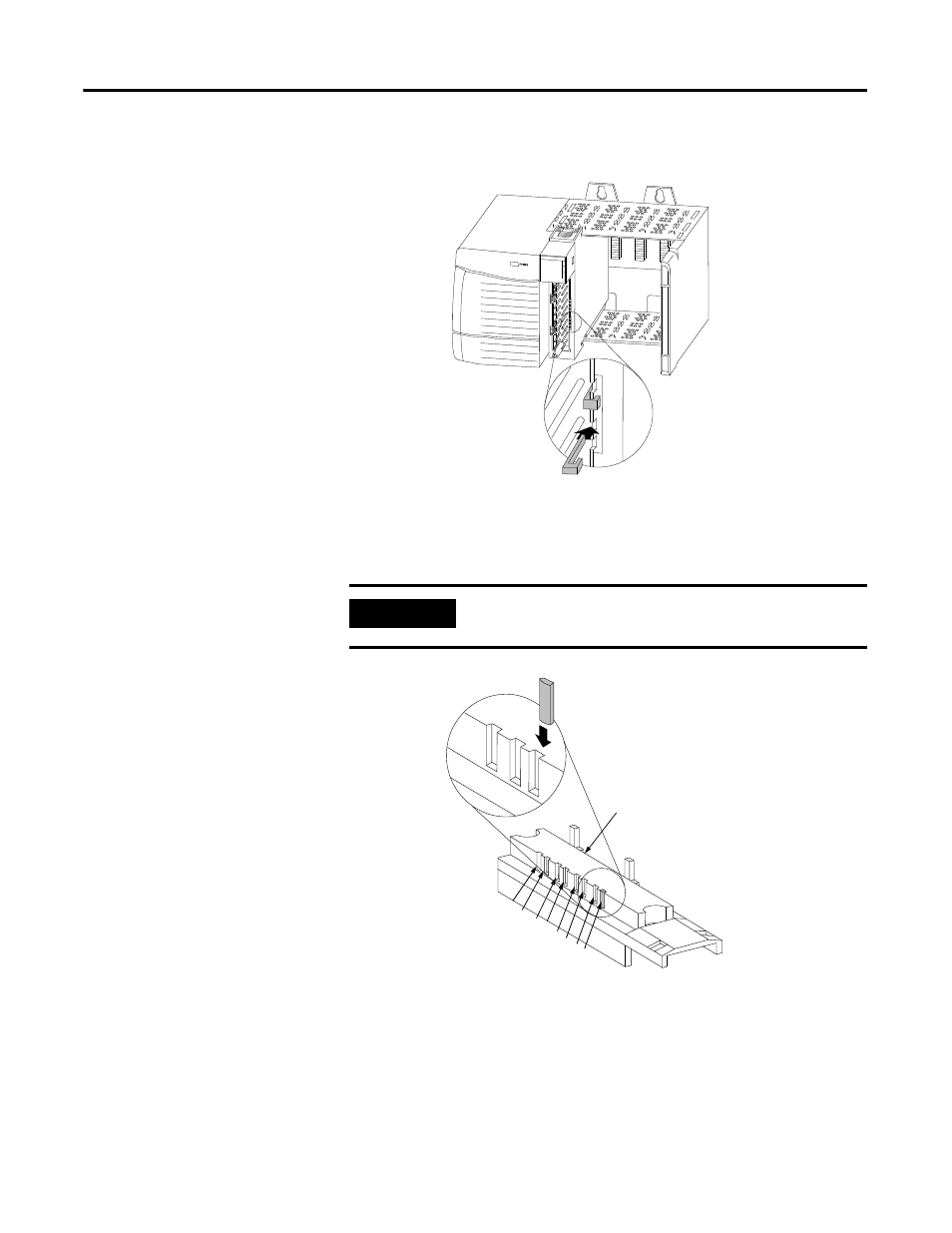

1. Insert the U-shaped band with the longer side near the terminals,
pushing the band on the module until it snaps into place.
2. Key the RTB in positions that correspond to unkeyed module positions.
3. Insert the wedge-shaped tab on the RTB with the rounded edge first.
4. Push the tab onto the RTB until it stops.
IMPORTANT
When keying your RTB and module, you must begin with a
wedge-shaped tab in slot 6 or 7.
20850-M
Module Side of RTB
20851-M
0
1 2
3
4 5
6 7
