Rockwell Automation Publication 1756-UM007C-EN-P - November 2011
Configure the 1756-HSC Module 69

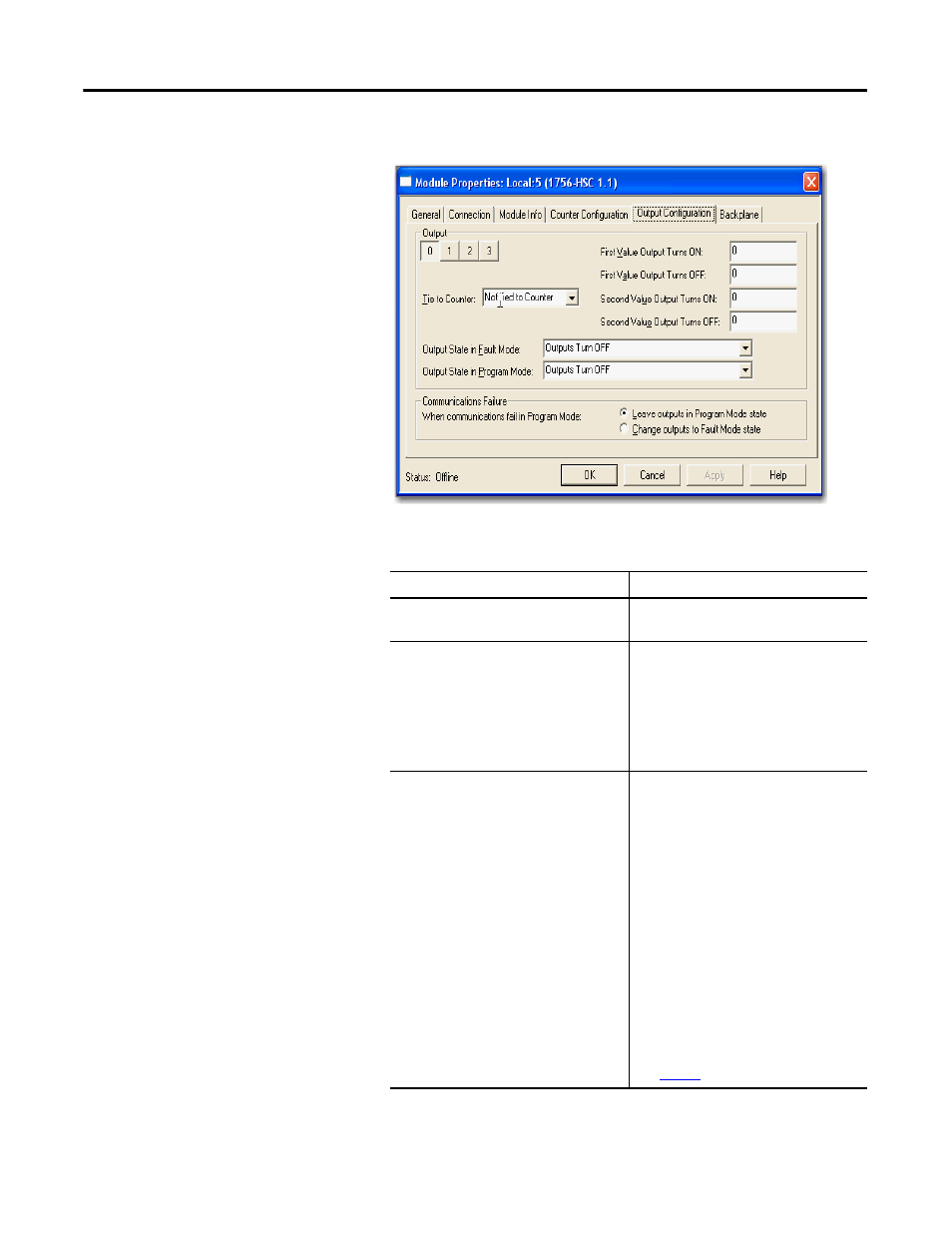

The Output Configuration dialog box appears.
2. Choose output parameters in the Output Configuration dialog box.
Field Description
Output Click one of four output buttons to
configure the respective output.
Tie to Counter Choose a mode to determine if an
output is tied to a counter. These are
the values:
• Not Tied to Counter (default)
• Tied to Counter 0
• Tied to Counter 1
Output State in Fault Mode
Output State in Program Mode
Defaults to Off for both options. These
settings determine how you want the
behavior of the outputs if a fault occurs,
such as a connection loss. These are the
values:
• Outputs Turn On
• Counter Continues to Determine
Outputs Operation
Important: For firmware revision 2 and
later, a routine must be added in ladder
logic to copy the configuration (C.)
output setting to the (O.) output tags.
Otherwise, the configuration setting will
be overridden by the output tag for
values other than Off.
See page 71 for ladder logic procedures.
