46 Install and Wire the ControlLogix High-speed Counter Module

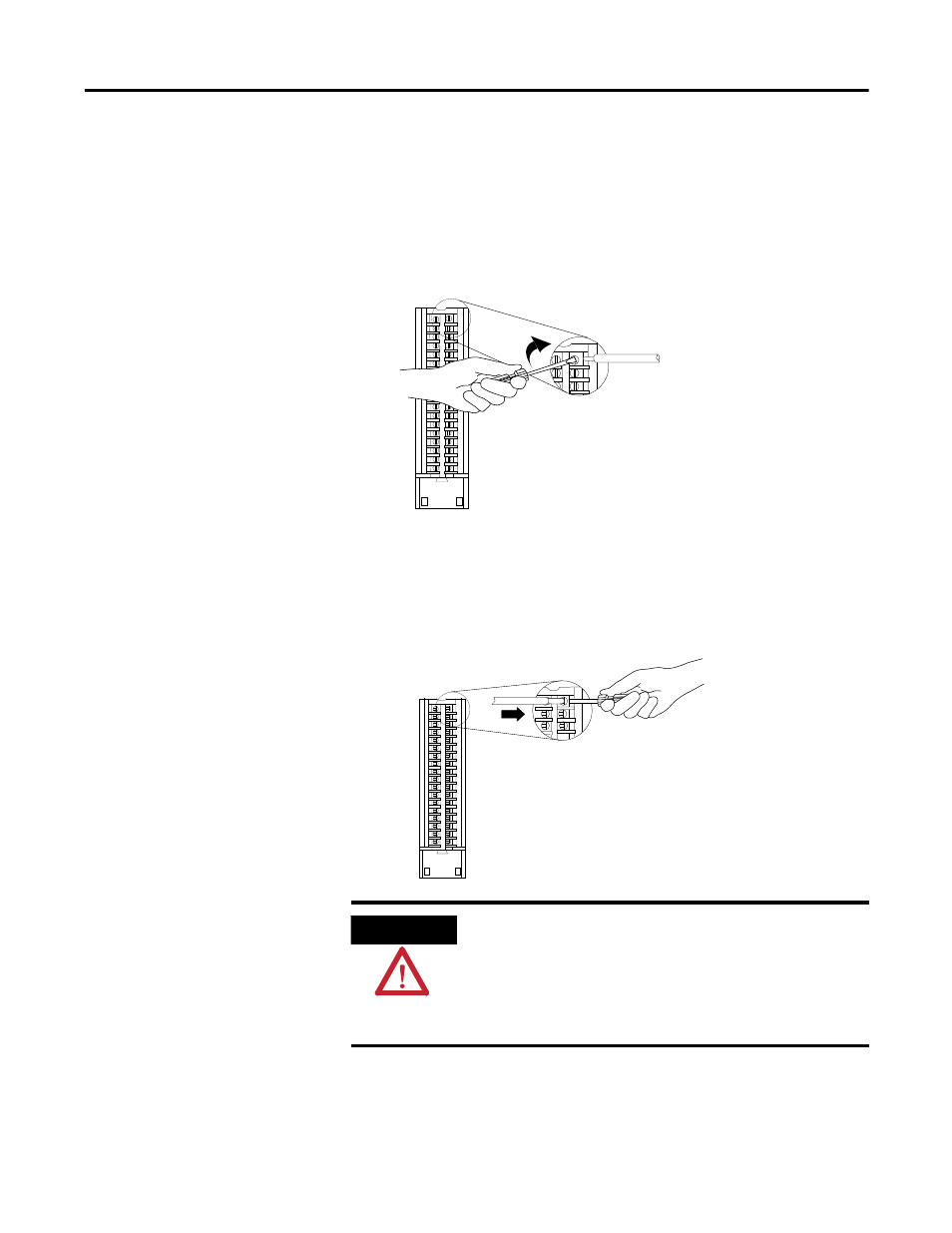

Two Types of RTBs (each RTB comes with housing)
Cage clamp - catalog number 1756-TBCH
1. Insert the wire into the terminal.
2. Turn the screw clockwise to close the terminal on the wire.
Spring clamp - catalog number 1756-TBS6H
1. Insert the screwdriver into the outer hole of the RTB.
2. Insert the wire into the open terminal and remove the screwdriver.
ATTENTION
The ControlLogix system has been agency certified using only
the ControlLogix RTBs (catalog numbers 1756-TBCH,
1756-TBNH, 1756-TBSH and 1756-TBS6H). Any application that
requires agency certification of the ControlLogix system using
other wiring termination methods may require application
specific approval by the certifying agency.
20859-M
20860-M
