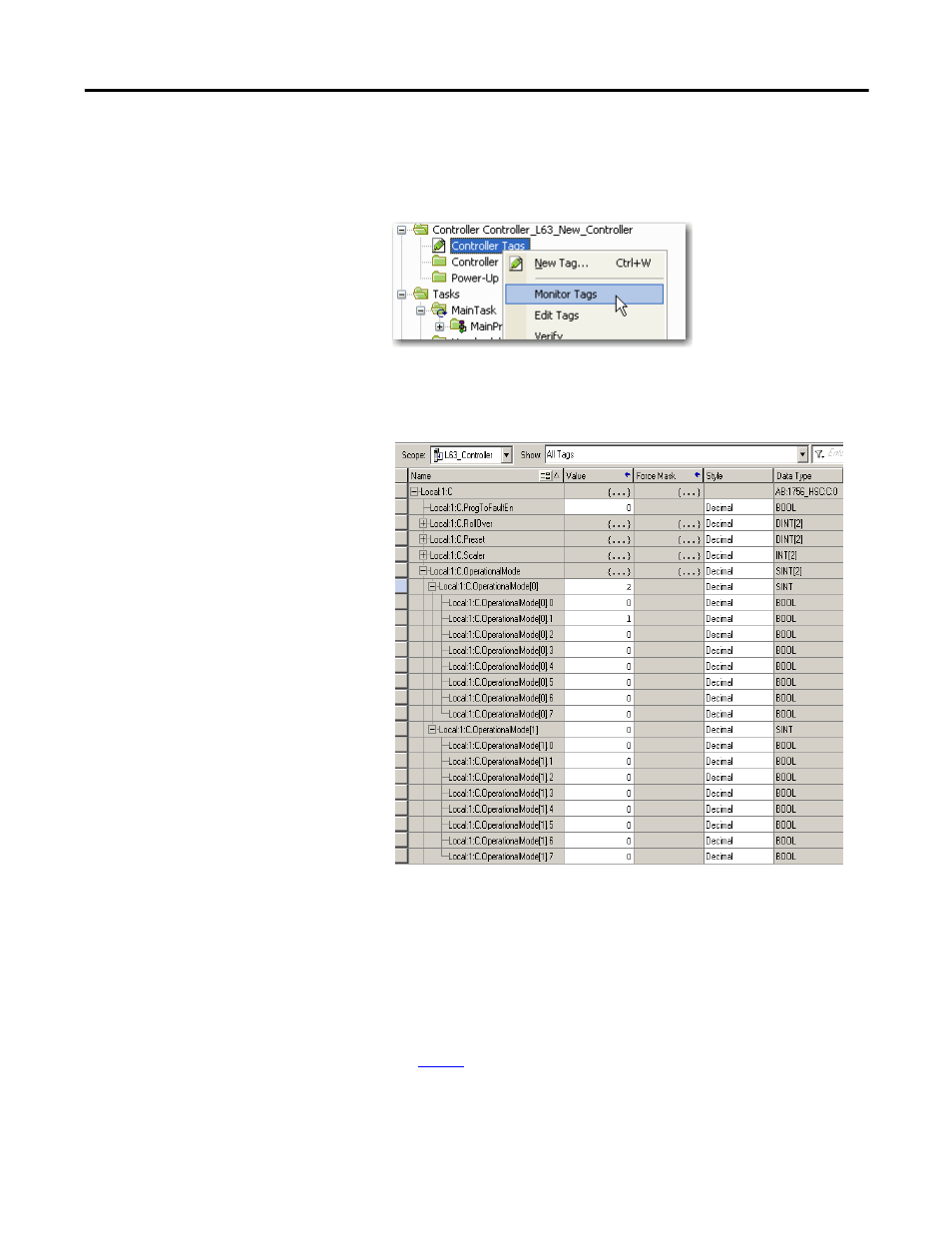

Follow these steps to manually enter tag data.
1. On the Controller Organizer, right-click Controller Tags and choose
Monitor Tags.
The Controller Tags window appears.
The name of your controller displays in the Scope field.
2. Click the ‘+’ in front of the .C (Configuration) tag.
A list of configuration tags appears.
3. Click the ‘+’ in front of the C.OperationalMode(0) tag.
4. Type a number for the mode that you want to use.
See page 63 in Chapter 5 for a list of the operational modes and the
corresponding tag value.
The same procedures apply for entering other tag values.
