Rockwell Automation Publication 1756-UM007C-EN-P - November 2011

66 Configure the 1756-HSC Module

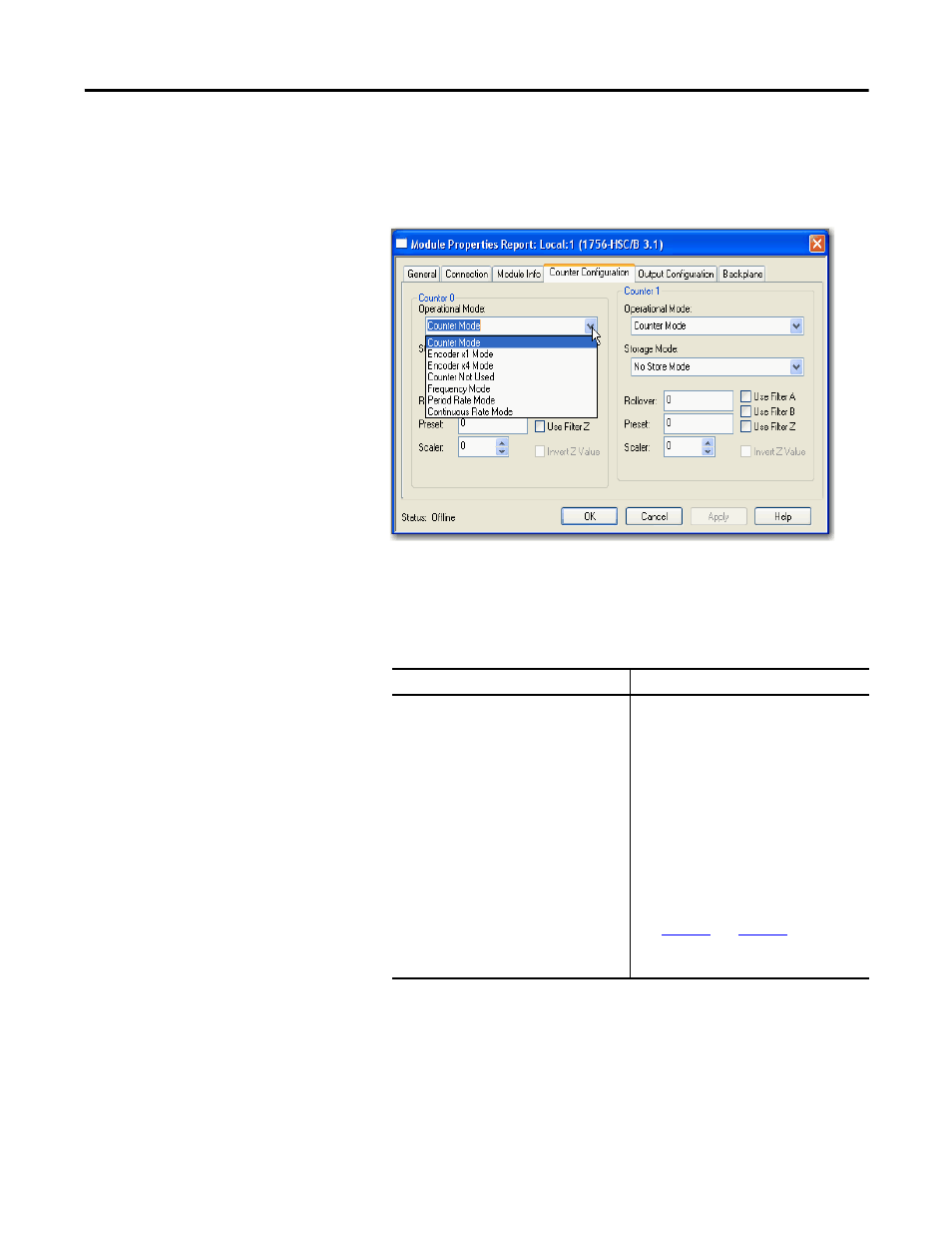

The Counter Configuration dialog box appears.

The dialog box is divided into two halves; one each for the respective
channel (0, 1) inputs.

2. Choose counter parameters in the Counter Configuration tab.

Field descriptions and procedures apply for both channel 0 and
channel 1.

Field

Description

Operational Mode

Choose an operational mode based on
your application requirements. These
are the values:

• Counter Mode (default)

• Encoder x1 Mode

• Encoder x4 Mode

• Counter Not Used

• Frequency Mode

• Period Rate (valid with

HSC Data-extended format only)

• Continuous Rate (valid with

HSC Data-extended format only)

See

and illustrations on Counter and
Frequency mode operations.
