72 Configure the 1756-HSC Module
5. Type the following information:
Source -- Local:3:C.Output[0]
Dest -- Local:3:O.Output[0]
Length -- 4 (this is the size of the array with 4 outputs: 0, 1, 2, 3)

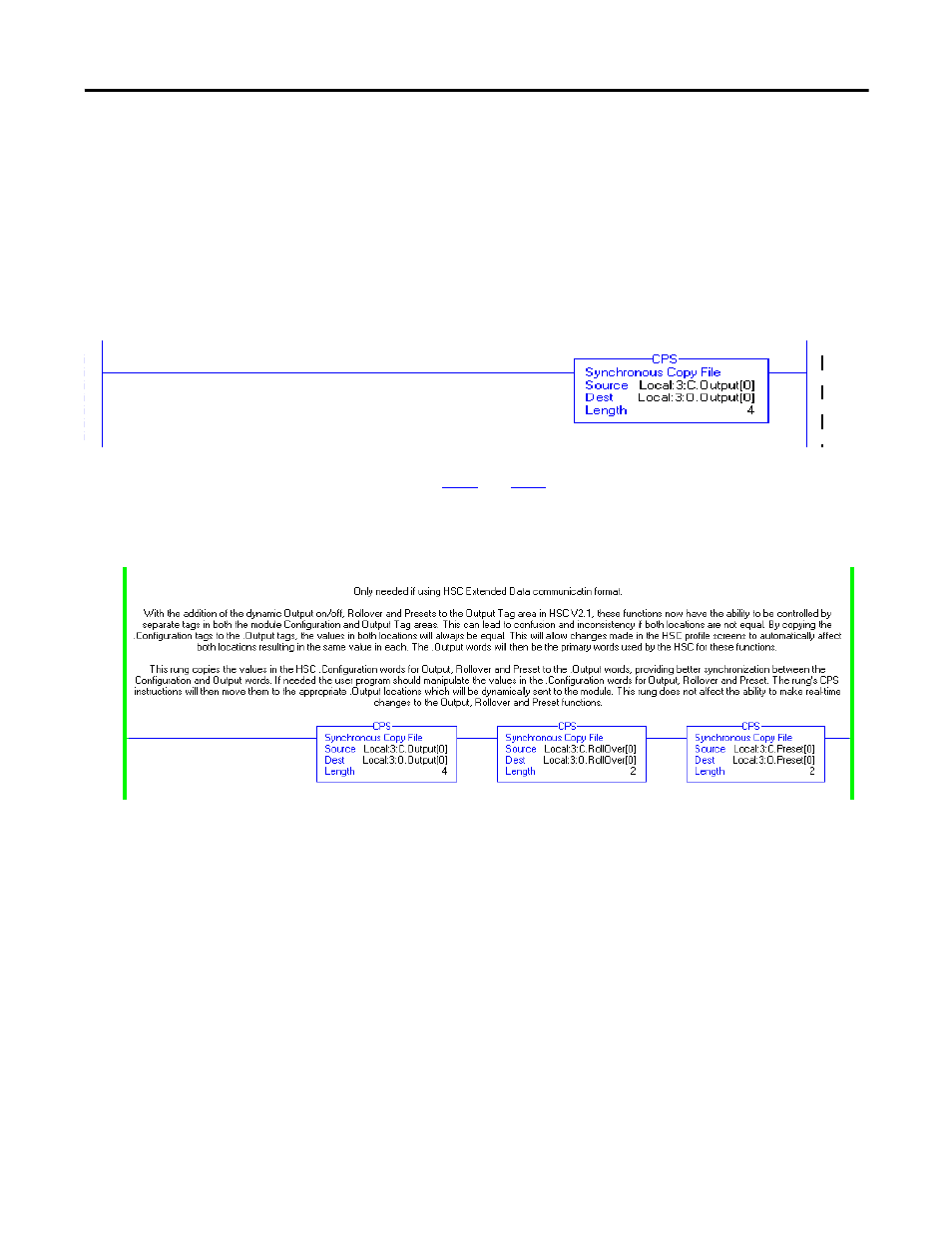

Your routine should look like the following example for a
1756-HSC module in a slot.
6. Repeat step 4 and step 5 to add two more CPS commands to the
same rung.
7. Type the information as shown in the example.
