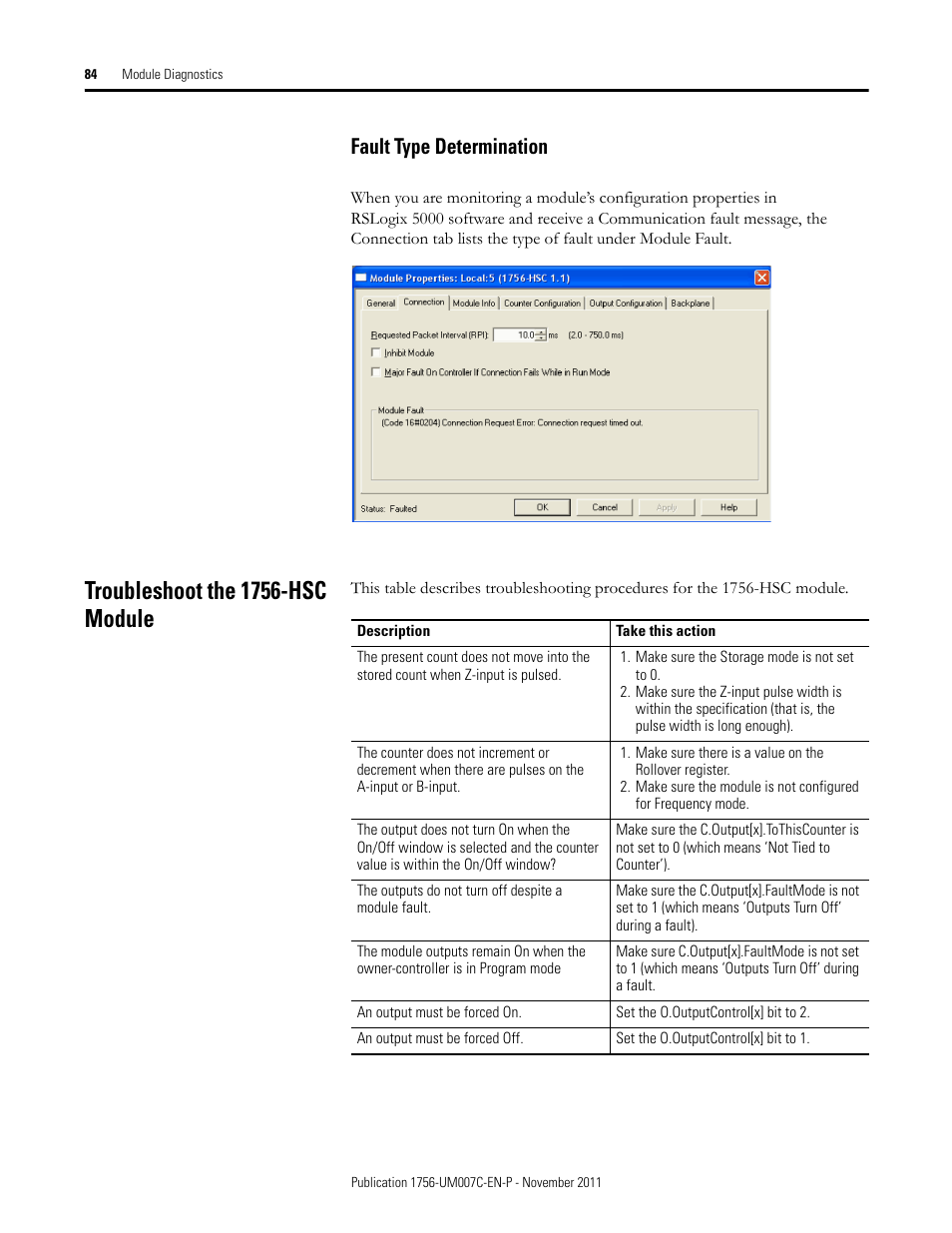

Fault type determination, Troubleshoot the 1756-hsc module – Rockwell Automation 1756-HSC ControlLogix High Speed Counter Module User Manual
Page 84
