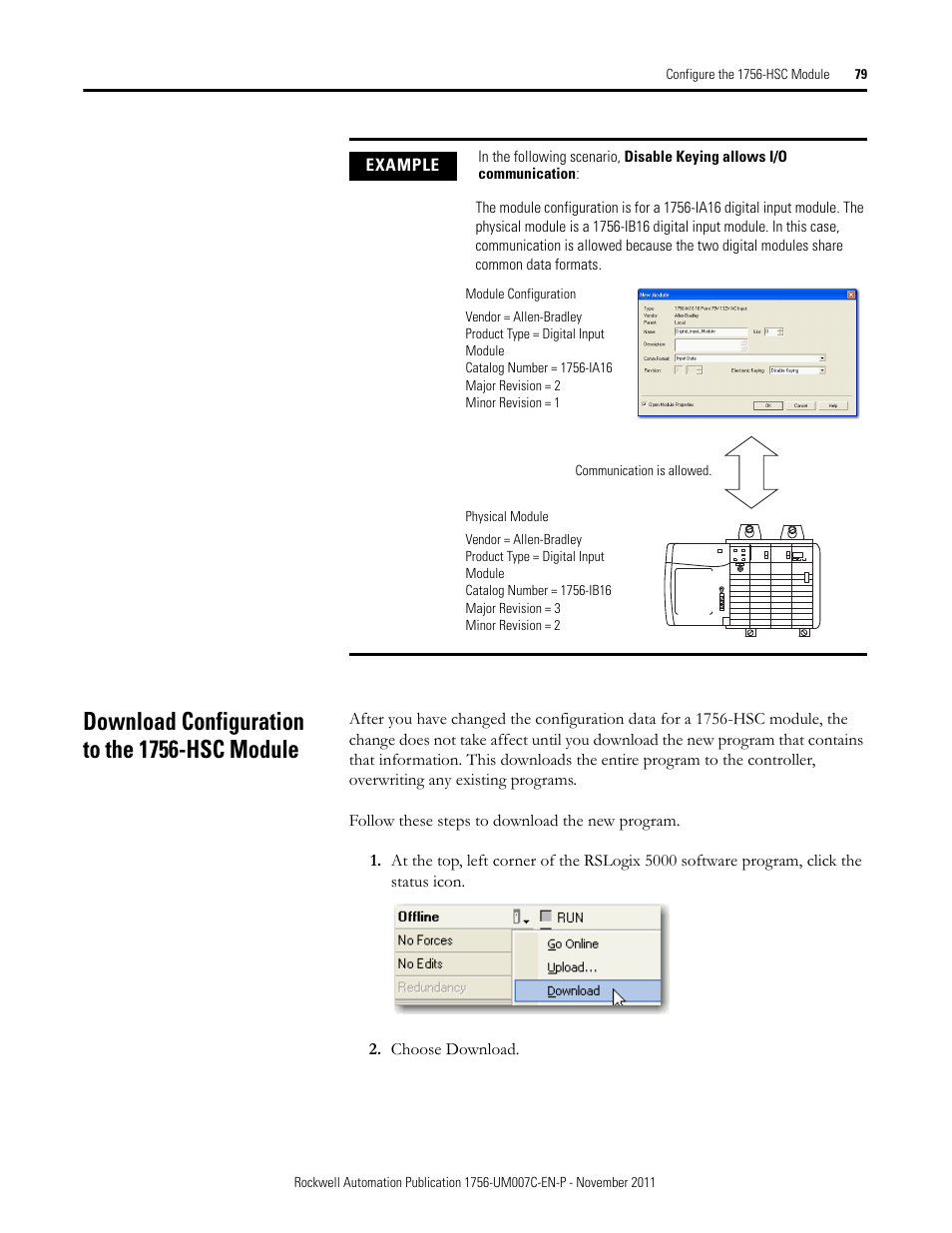

Download configuration to the 1756-hsc module – Rockwell Automation 1756-HSC ControlLogix High Speed Counter Module User Manual
Page 79
