Set up counter configuration – Rockwell Automation 1756-HSC ControlLogix High Speed Counter Module User Manual

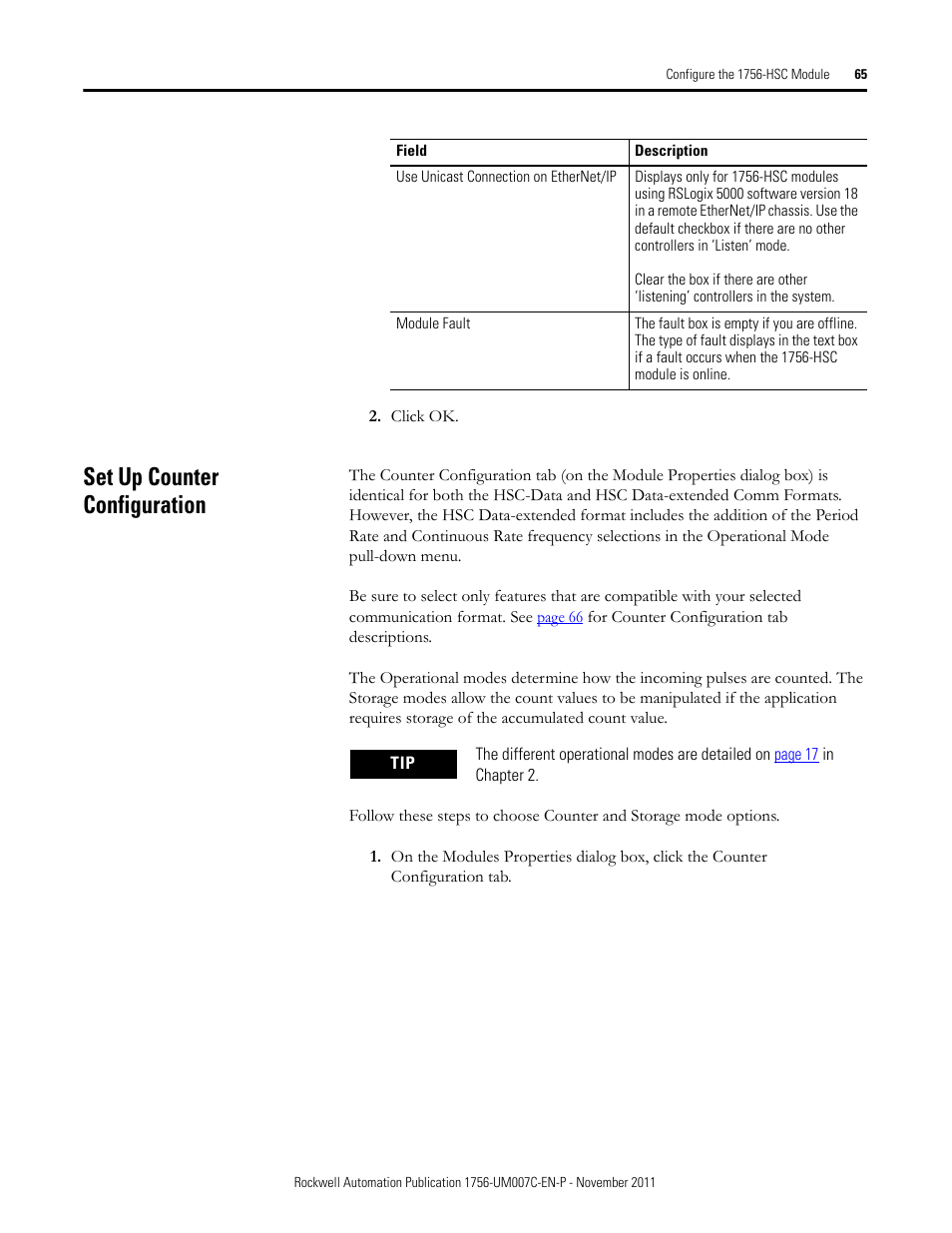

Page 65
