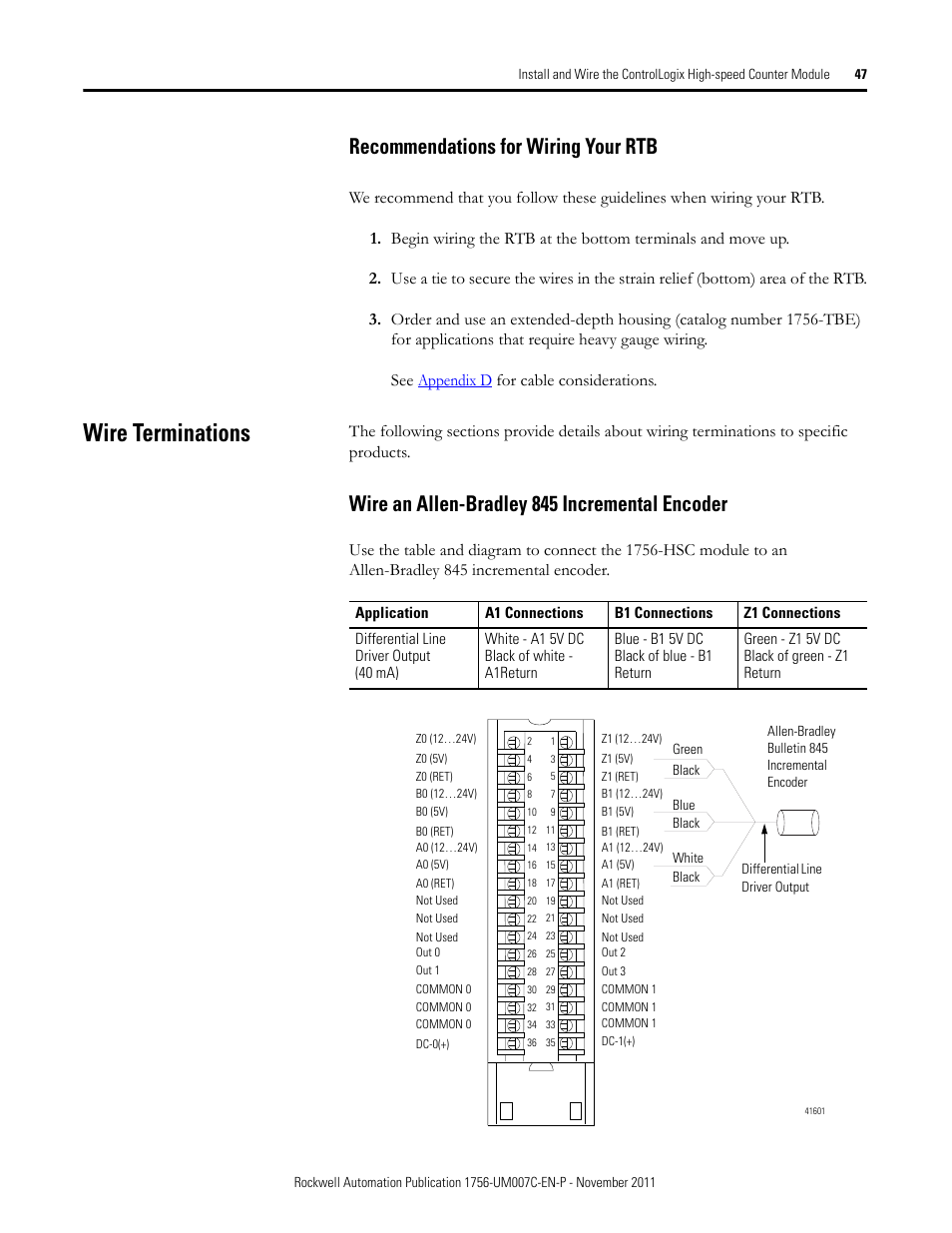

Recommendations for wiring your rtb, Wire terminations, Wire an allen-bradley 845 incremental encoder – Rockwell Automation 1756-HSC ControlLogix High Speed Counter Module User Manual
Page 47
