Outputs, Assign outputs to counters, Output operation – Rockwell Automation 1756-HSC ControlLogix High Speed Counter Module User Manual

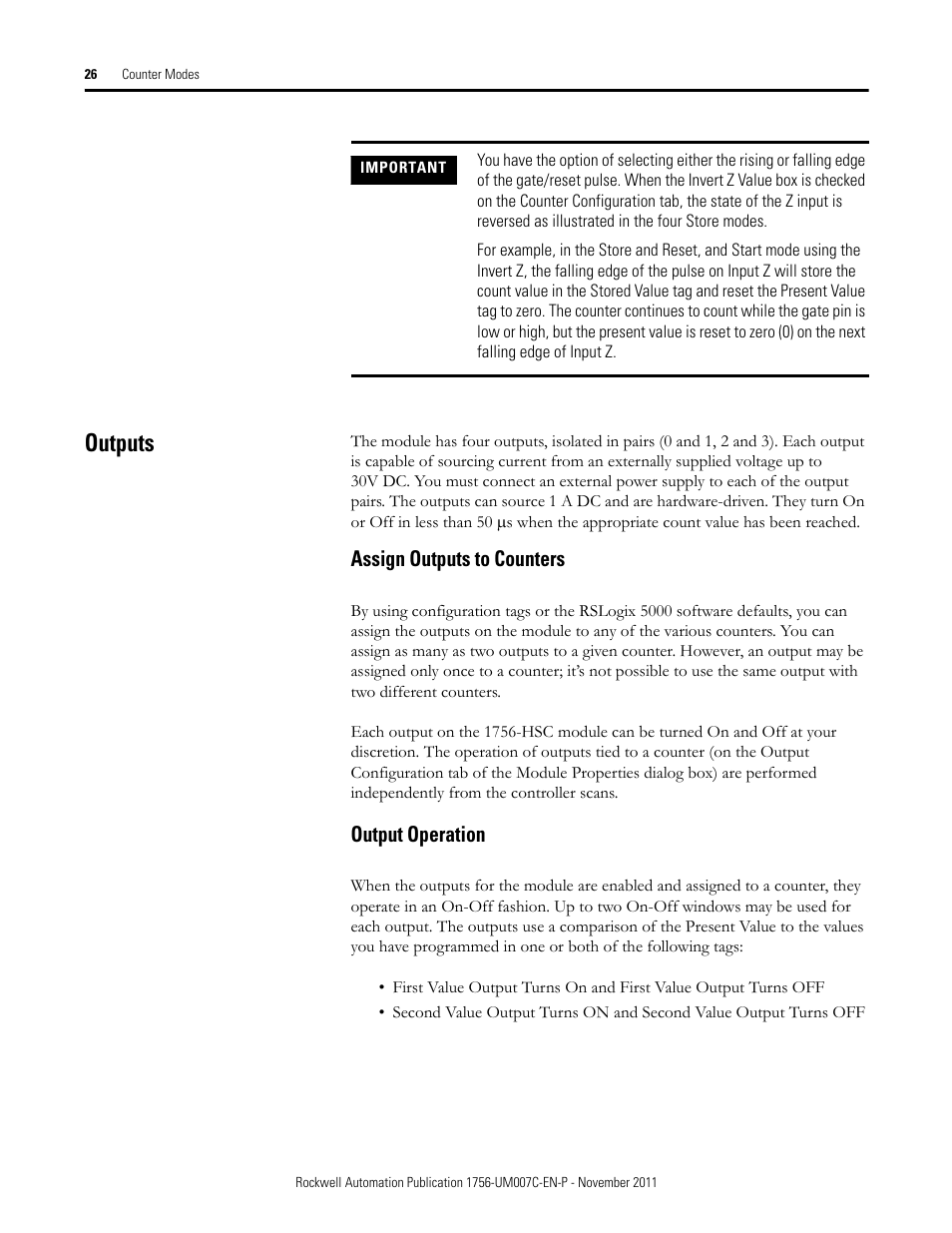

Page 26: Assign outputs to counters output operation
