Application considerations, Input cable length, Totem-pole output devices – Rockwell Automation 1756-HSC ControlLogix High Speed Counter Module User Manual

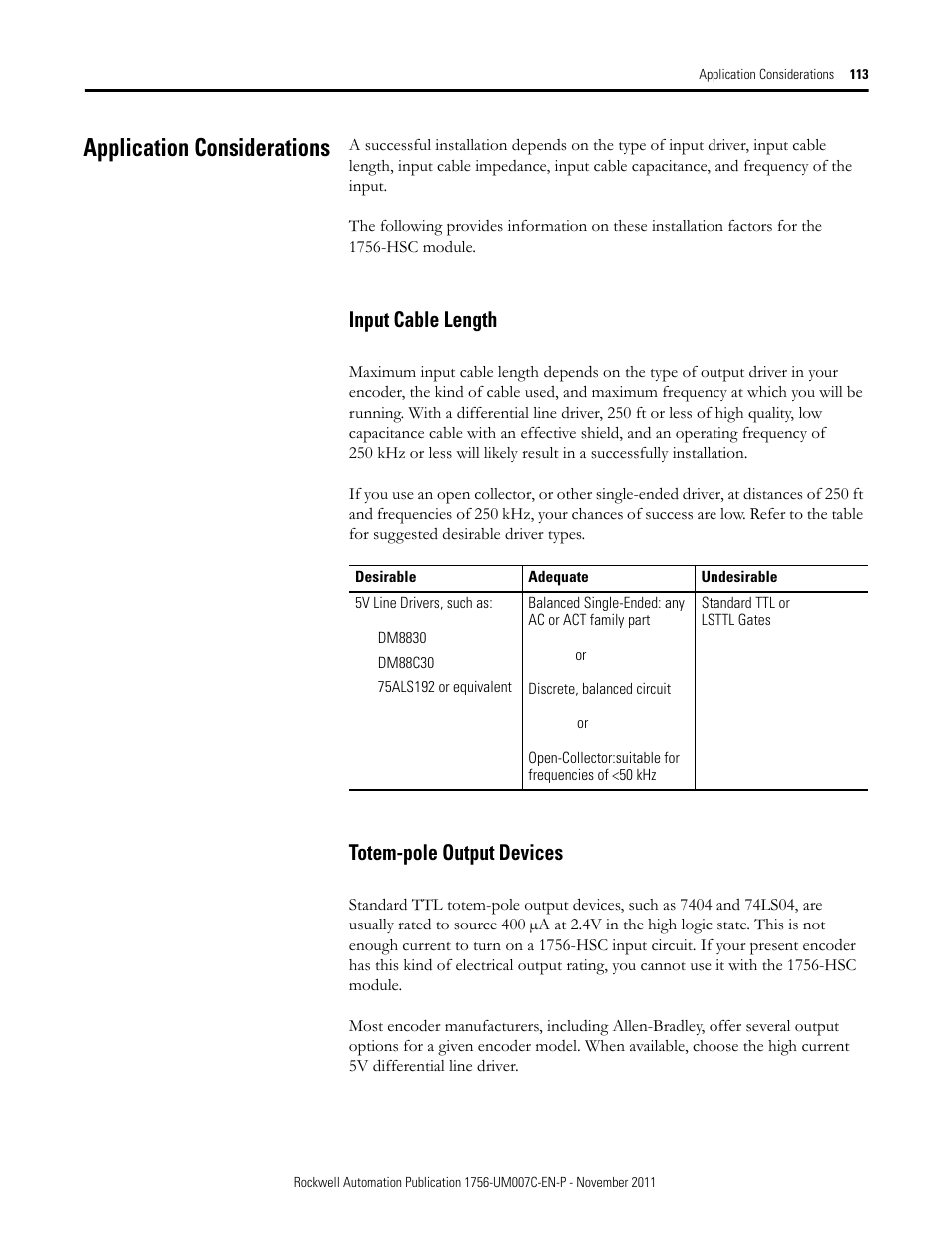

Page 113: Input cable length totem-pole output devices
