Open collector – Rockwell Automation 1756-HSC ControlLogix High Speed Counter Module User Manual

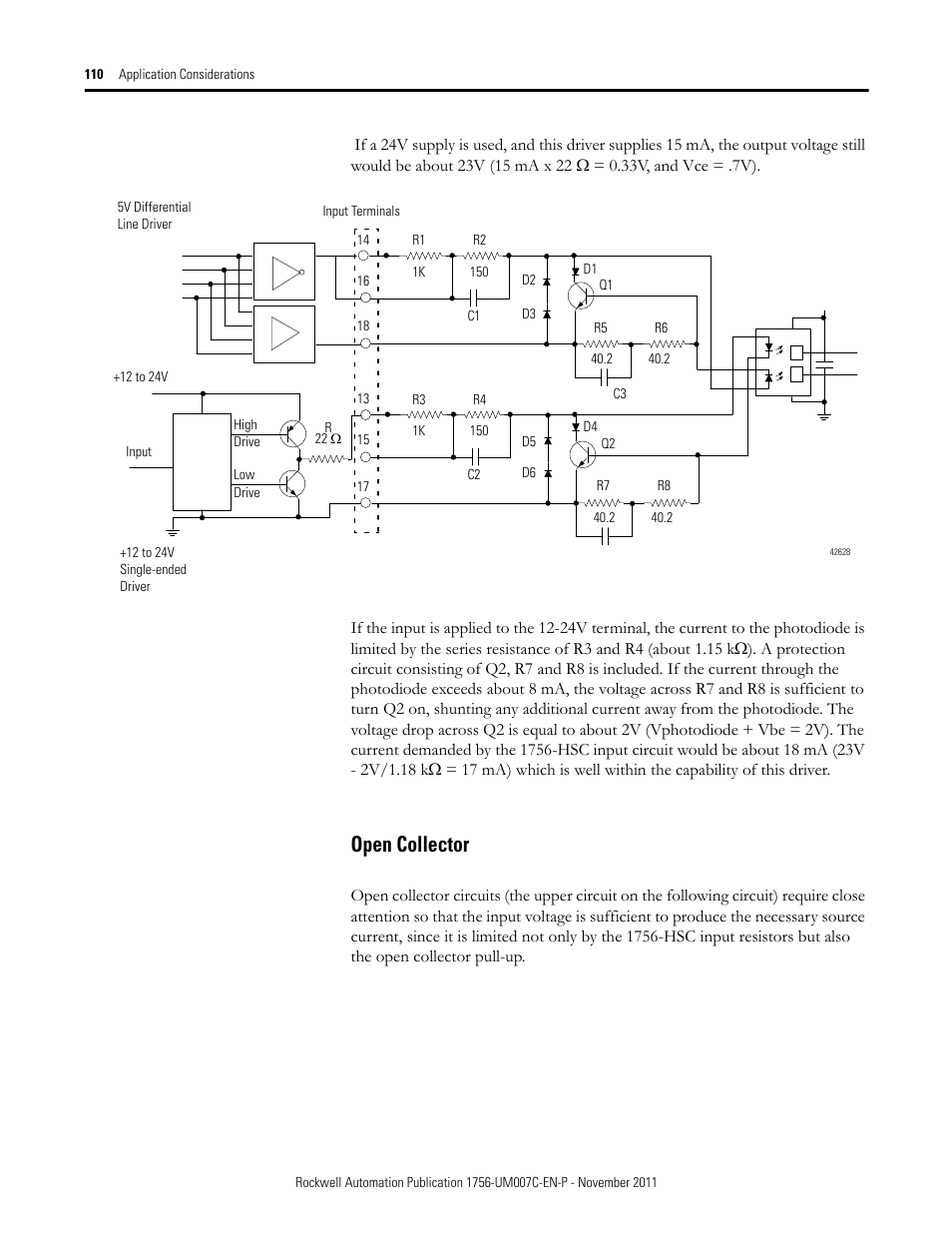

Page 110
