7-24 OPERATOR INTERFACE TERMINAL PV-550 REV E
1557-UM050F-EN-P – June 2013
Drive Setup
This section describes how to:
- select an alternate language,
- enter data to a drive parameter
- assign a tag to an analog port,
- enable and disable a fault via a mask,
- assign text to be associated with an external fault input,
- define the tags to be accessible by a PLC.
You will access the "SETUP" screen from the Top Level Menu by pressing the [F8] key. This will
result in the screen shown in either Figure 36 or 37.

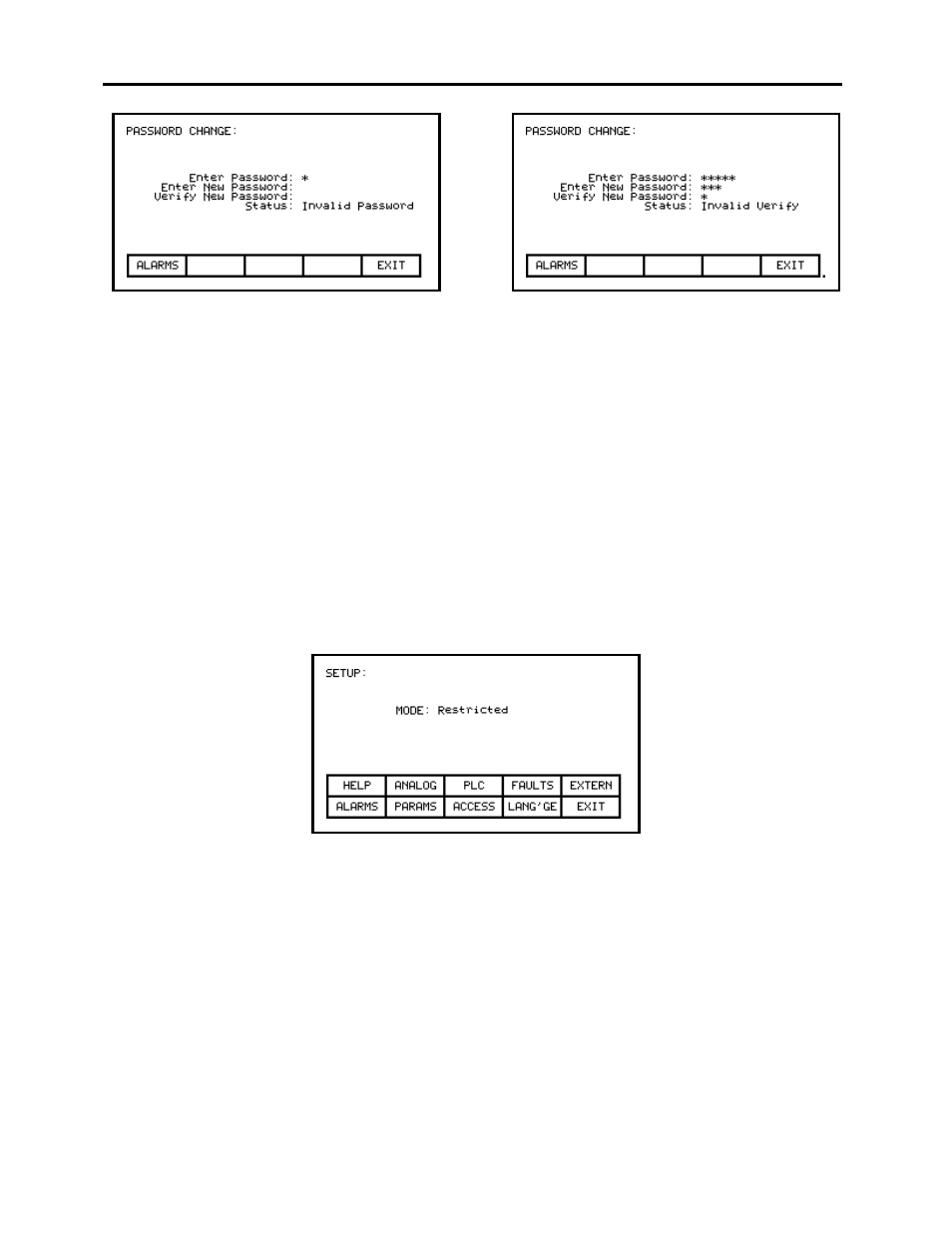

Figure 34 – Incorrect Password Entered Figure 35 – Invalid New Password Verification
Figure 36 – Restricted Mode
