Enhanced DeviceNet Adapter’s Parameters
B-3
SCANport devices that support this function have a group of
parameters for datalink configuration. These parameters are Data In
A1 – D2 and Data Out A1 – D2.
If you intend to use command I/O and/or datalinks, you must do the
following:
1. Access the adapter’s parameters using either a serial connection
(refer to Chapter 3, Configuring the 1203-GU6 Enhanced
DeviceNet Module Using a Serial Connection) or the DeviceNet
network (refer to Chapter 4, Configuring the Enhanced
DeviceNet Adapter Using RSNetWorx for DeviceNet).
2. Enable the Cmd/Stat Config (4) parameter and/or desired
DataLink (5 – 8) parameters within the Enhanced DeviceNet
adapter.

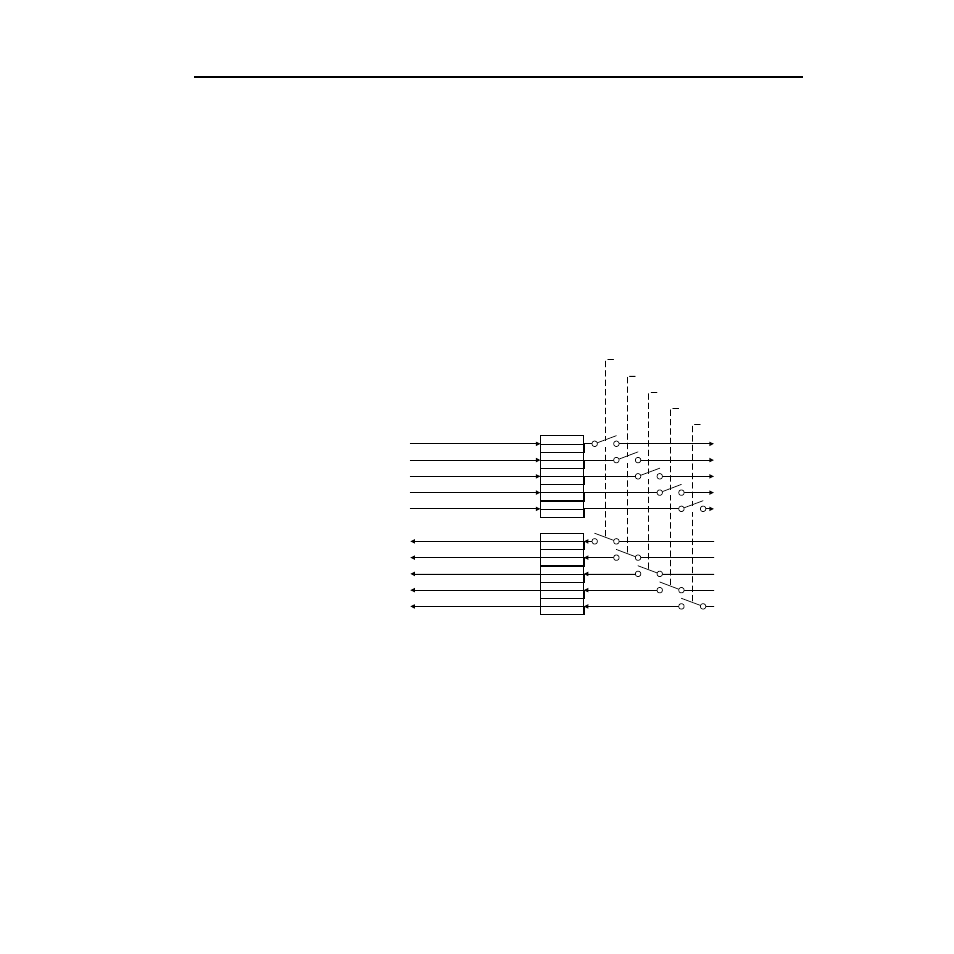

Figure B.1
Module I/O Configuration
3. Configure or link the Data In A1– D2 and Data Out A1 – D2
parameters in the SCANport product. Refer to the documentation
for your SCANport product.
4. Configure the M-S Input parameter and M-S Output parameter as
desired. Refer to the “M-S Input Parameter Configurations”
section or the “M-S Output Parameter Configurations” sections in
this chapter.
5. Reset the adapter by setting the Reset Adapter (22) parameter to
Enable.
Reference
Logic Command
DL A2 Inp
DL A1 Inp
DL B2 Inp
DL B1 Inp
DL C2 Inp
DL C1 Inp
DL D2 Inp
DL D1 Inp
Feedback
Logic Status
DL A2 Out
DL A1 Out
DL B2 Out
DL B1 Out
DL C2 Out
DL C1 Out
DL D2 Out
DL D1 Out
Module Input
Module Output
Cmd/Stat Config
Datalink A Config
Datalink B Config
Datalink C Config
Datalink D Config
Data to the
SCANport
Device
Data from the
SCANport
Device
Data from
DeviceNet
Data to
DeviceNet
