Chapter 8

Reference

8–18

Parameter 567 – [A>FB Ovrflow Sel]
Parameter 517 – [B>FB Ovrflow Sel]

Use: Specifies MCA board reaction to function block overflow
conditions.
Parameter Type: Setup
Program Terminal Units: Bit selectable
Minimum Value: 0000 0000 0000 0000
Maximum Value: 1111 1111 1111 1111
Default Value: 0000 0000 0000 0000

Description: This parameter specifies what action the MCA board will
take when an overflow condition occurs in the Multiply #1 or Add
Function blocks (see Figure 8–1).

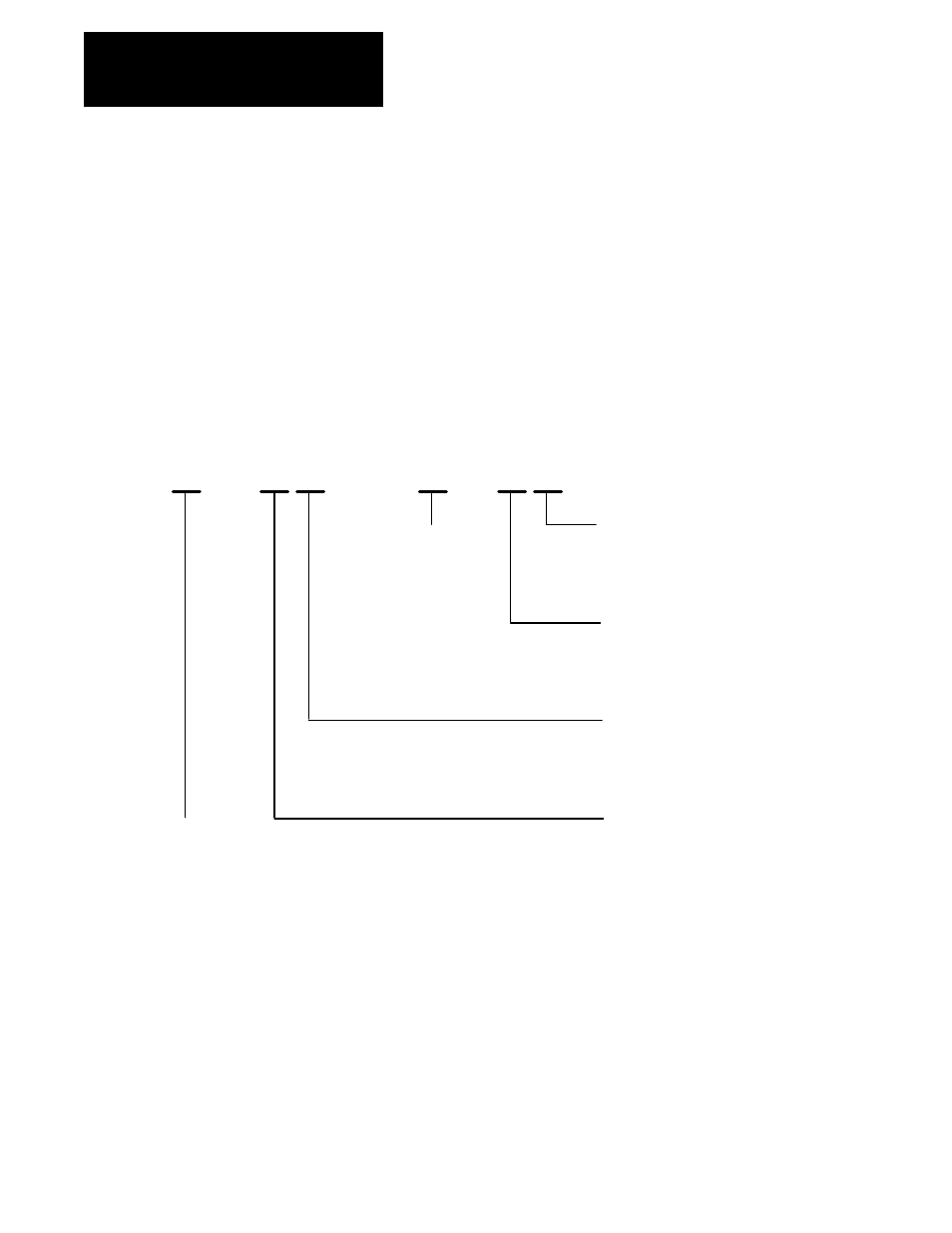

Figure 8-1. Function Block Overflow Select

Add FB Fault Select
00 = No Fault
01 = Warning Fault
10 = Soft Fault
11 = No Fault

0 0 0 0

0 0 0 0

0 0 0 0

0 0 0 0

Multiply #1 FB Fault Select
00 = No Fault
01 = Warning Fault
10 = Soft Fault
11 = No Fault

Add FB Overflow Action
00 = Maintain last state
01 = Zero inputs
10 = Send max value, pos or neg
11 = None

Multiply #1 FB Overflow Action
00 = Maintain last state
01 = Zero Inputs
10 = Send max value, pos or neg
11 = None

Multiply #2 FB Fault Select
00 = No Fault
01 = Warning Fault
10 = Soft Fault
11 = No Fault

Multiply #2 FB Overflow Action
00 = Maintain last state
01 = Zero Inputs
10 = Send max value, pos or neg
11 = None

Parameter 568 – [A>Disc In-Param]
Parameter 518 – [B>Disc In-Param]

Use: Specifies which parameter the discrete input will affect.
Parameter Type: Setup
Program Terminal Units: None
Minimum Value: B–300/A–400
Maximum Value: B–314/A–414
Default Value: B–300/A–400

Description: Specifies which parameter the MCA board Discrete input
bit will be affected by. The specific bit number and calculations are
controlled by other parameters.
