Rockwell Automation 1408-EMxx PowerMonitor 1000 Unit User Manual
Page 27
Publication 1408-UM001B-EN-P - May 2008
27
Explicit Messaging Chapter 4

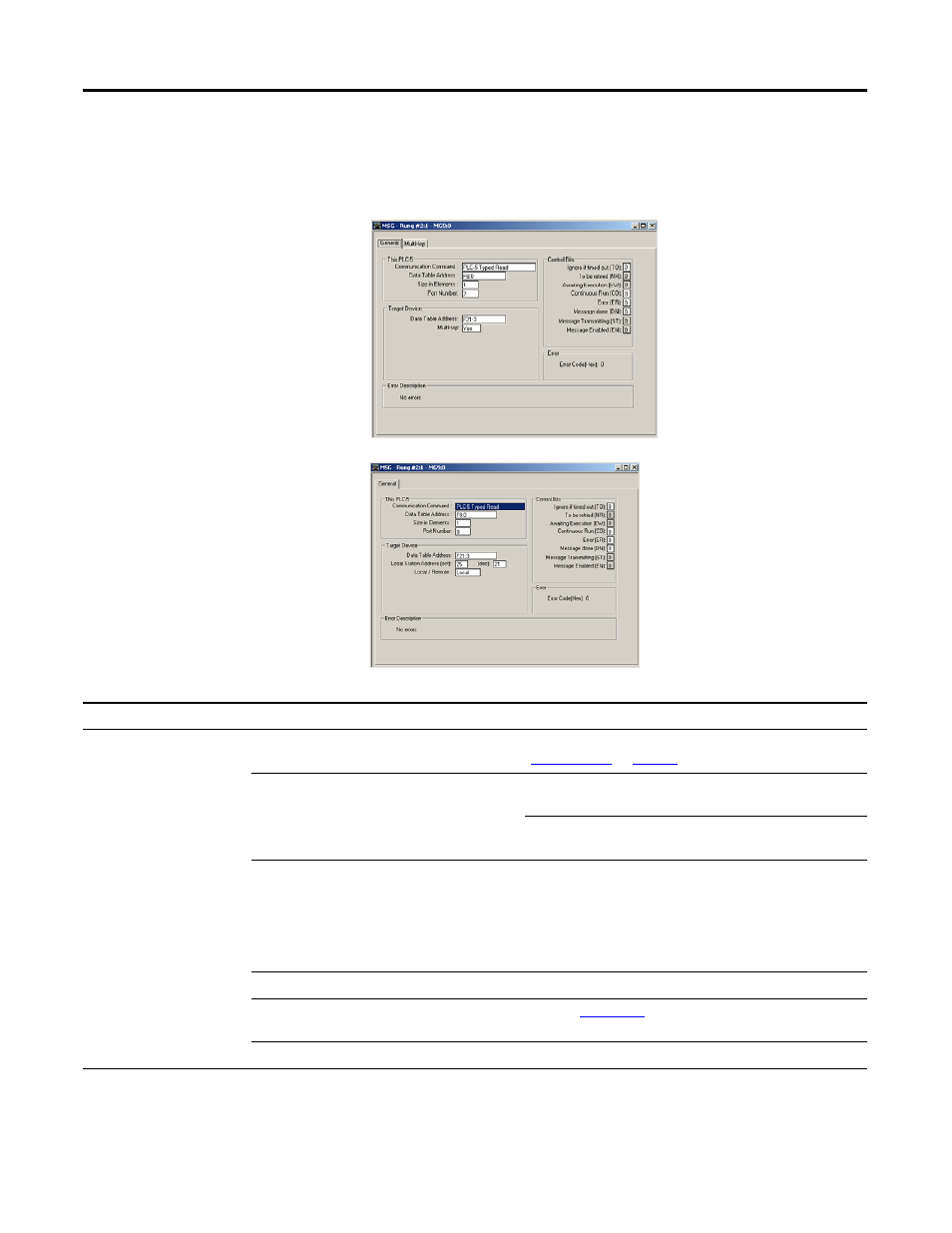

3. Choose the appropriate parameters in the Message
Configuration window.
Ethernet Network Communication
Serial Communication
Communication Type
Parameter
Choice
Ethernet
Communication Command
Select the appropriate message type according to
on
.
Data Table Address (This Controller)
Read: This is the controller tag in which to store the data
being read.
Write: This is the controller tag that stores the value to be
written to the power monitor.
Size in Elements
This is the number of elements being read or written to. If
you are performing a single element read or write, then
this value should be 1. If you are performing a multiple
element read or write, then this should be the number of
elements after the source element that you wish to read or
write.
Port Number
2
Data Table Address (Target Device)
Refer to
for the address of the specific data
value you’re reading or writing to.
MultiHop
Yes
