Chapter 4 Explicit Messaging

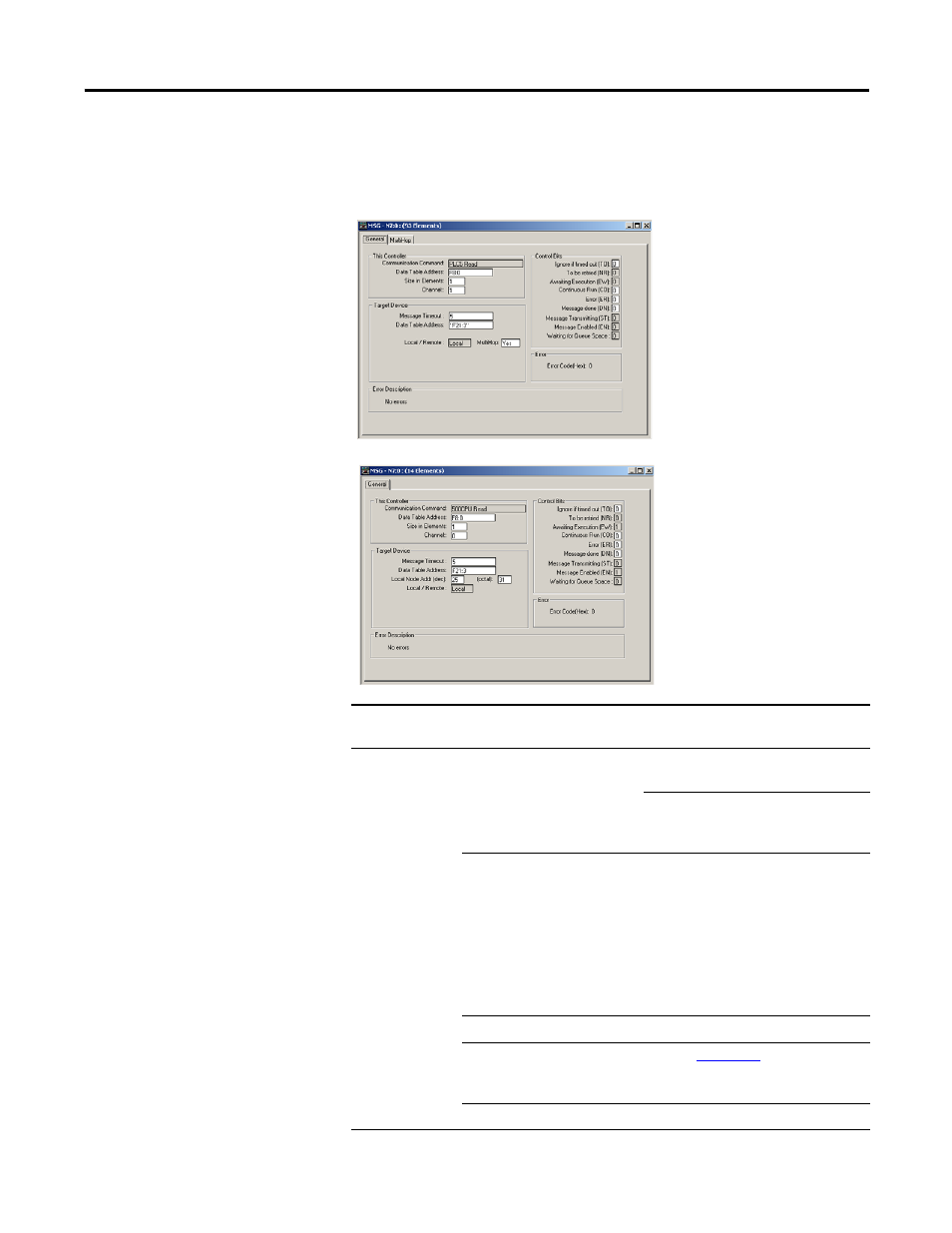

3. Choose the appropriate parameters in the Message
Configuration window.
Communication
Type Parameter Choice
Ethernet Data Table Address (This
Controller) Read: This is the controller tag in
which to store the data being read
Write: This is the controller tag that
stores the value to be written to the
power monitor.
Size in Elements This is the number of elements being
read or written to. If you are
performing a single element read or
write, then this value should be 1. If
you are performing a multiple element
read or write, then this should be the
number of elements after the source
element that you wish to read or
write.
Channel 1
Data Table Address
(Target Device) Refer to Appendix A for the address of
the specific data value you’re reading
or writing to.
MultiHop Yes
Ethernet Network Communication
Serial Communication
