Design Guide & Applications Manual
For VI-200 and VI-J00 Family DC-DC Converters and Configurable Power Supplies
VI-200 and VI-J00 Family Design Guide Rev 3.5 vicorpower.com
Page 88 of 98
Apps. Eng. 800 927.9474 800 735.6200
SlimMod
Vicor’s PCB mount power components are available in
flangeless “SlimMod” package configurations that provide
users with narrower width 1.8'' (45,7 mm) for tight
printed circuit mount applications.
To order the SlimMod configuration, add the suffix “S” to
the standard part number. Example: VI-260-CV-S.
SlimMod clips are available for grounding the baseplate to
the PCB ground plane.
FinMod
Vicor’s PCB mount power components are also available in
flangeless “FinMod” package configurations with integral
finned heat sinks. FinMods eliminate the need for secondary
heat sink assembly operations.
The full-size and half-size module components are
available with heat sink heights of 0.25'' (6,35 mm) and
0.5'' (12,7 mm) longitudinal or transverse fin versions. To
order the longitudinal fin configurations add the suffix
“F1” 0.25'' (6,35 mm) or “F2” 0.5'' (12,7 mm) to the
standard part number.
[a] For transverse fins, add the suffix
“F3” 0.25'' (6,35 mm) or “F4” 0.5'' (12,7 mm) to the
standard part number.
BusMod
The BusMod is a rugged module housing assembly that
combines convenient chassis mounting with a screw / lug
wiring interface for all electrical connections. To order the
BusMod option, add “–B1” to the standard part number.
NOTE: The BusMod may be used with any of Vicor’s
VI- / MI-200, VI- / MI-J00, IAM, or VI- / MI-RAM modules,
with the exception of the HAM.
MegaMod/MI-MegaMod DC-DC Converter Family
MegaMod/ MI-MegaMod and MegaMod/ MI-MegaMod Jr.
DC-DC converters incorporate one, two, or three Vicor
VI- / MI-200 or VI- / MI-J00 DC-DC converters in a modular
package to provide a chassis-mounted alternative to board-
mounted power supplies. MegaMod / MI-MegaMods offer
50 – 600 W of power from 1 – 3 outputs. MegaMod / MI-
MegaMod Jr.’s offer a total of 25 – 300 W from 1 – 3
outputs. Each output may be independently sensed,
adjusted, and sequenced using the procedures outlined
for VI- / MI-200 and VI- / MI-J00 DC-DC converters.
[a] FinMod clips are available for grounding the baseplate
to the PCB ground plane.
Full Size

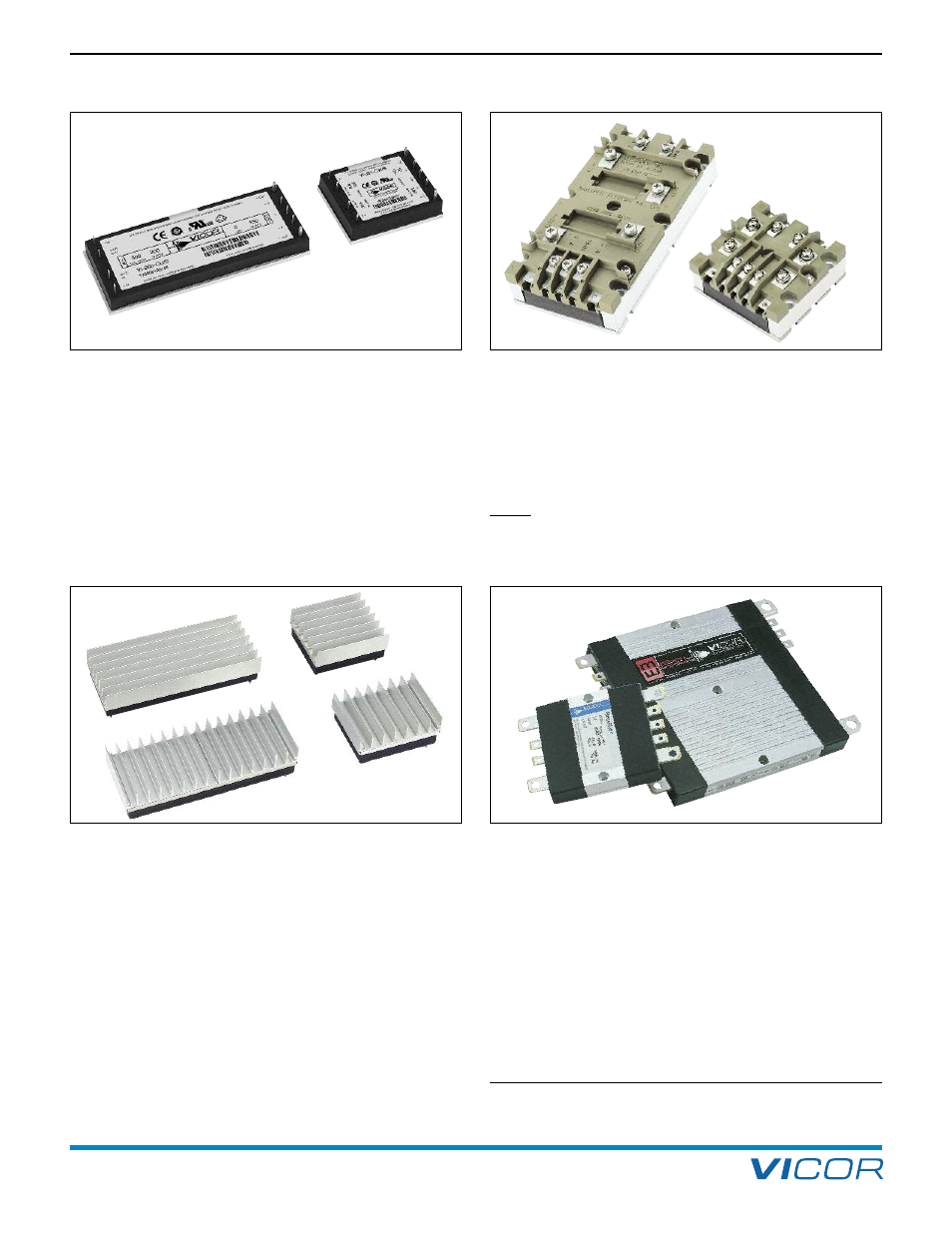

24. Module Packaging Options
Figure 24–1 — Full and half-size SlimMods Figure 24–3 — BusMod module housing assembly
Figure 24–4 — MegaMods housing assembly
Half Size
Figure 24–2 — Longitudinal and transverse FinMods
