2.3.3.6.4 I/O Tab
Various events can be assigned in the I/O tab (see Figure 2-40 ) to correspond to
the relays and inputs of an external Programmable Logic Controller (PLC).
IQM-233 and SQM-242 cards do not provide digital I/O. The PLC can provide the
relays and inputs needed for automatic control of source and sensor shutters,
rotation of source indexer pockets, etc.
NOTE: Programmable Logic Controllers use relay and input addressing. Relay
addresses correspond to relays 1 to 16 in the Relay Events pane. Input
addresses correspond to inputs 1 to 12 in the Input Events pane. (Refer to
the PLC operating manual for addressing.)

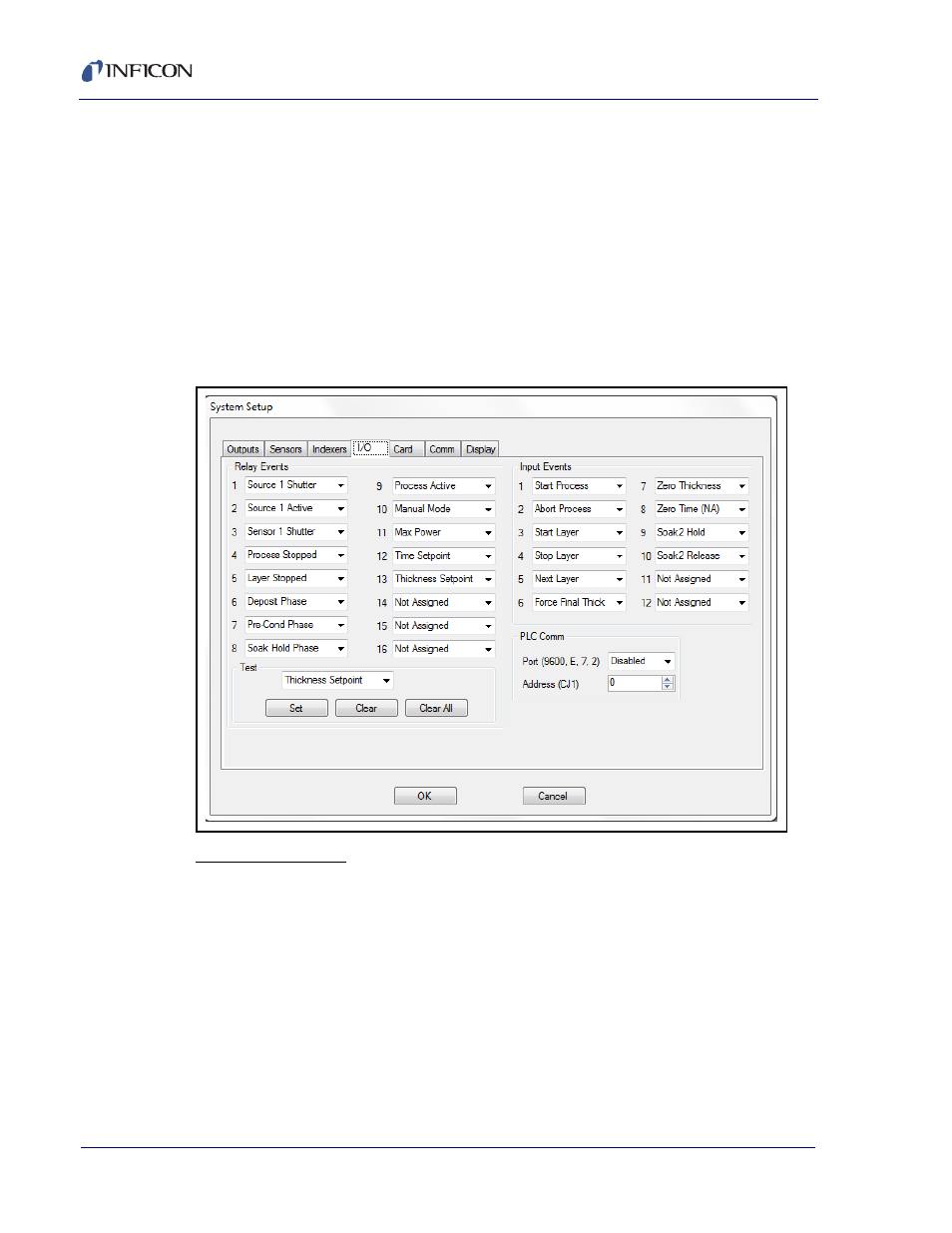

Figure 2-40 System Setup window - I/O tab
Relay Events pane
Selecting an event in a Relay Events box will activate the corresponding PLC relay
when the event is true and deactivate the relay when the event is false.
Not Assigned . . . . . . . . . . . The corresponding PLC relay cannot be activated.
Source Shutter (1 to 6) . . . The relay controlling the deposition source shutter
will activate at the start of the deposition phase and
deactivate at the start of the postconditioning phase.
