IQS-233 Operating Manual
2.3.3.5.6 Films
Click Edit >> Films to display the Film Edit window where the configuration for a
new Film can be created and an existing Film can be renamed, copied, or deleted.
See
Figure 2-24 .

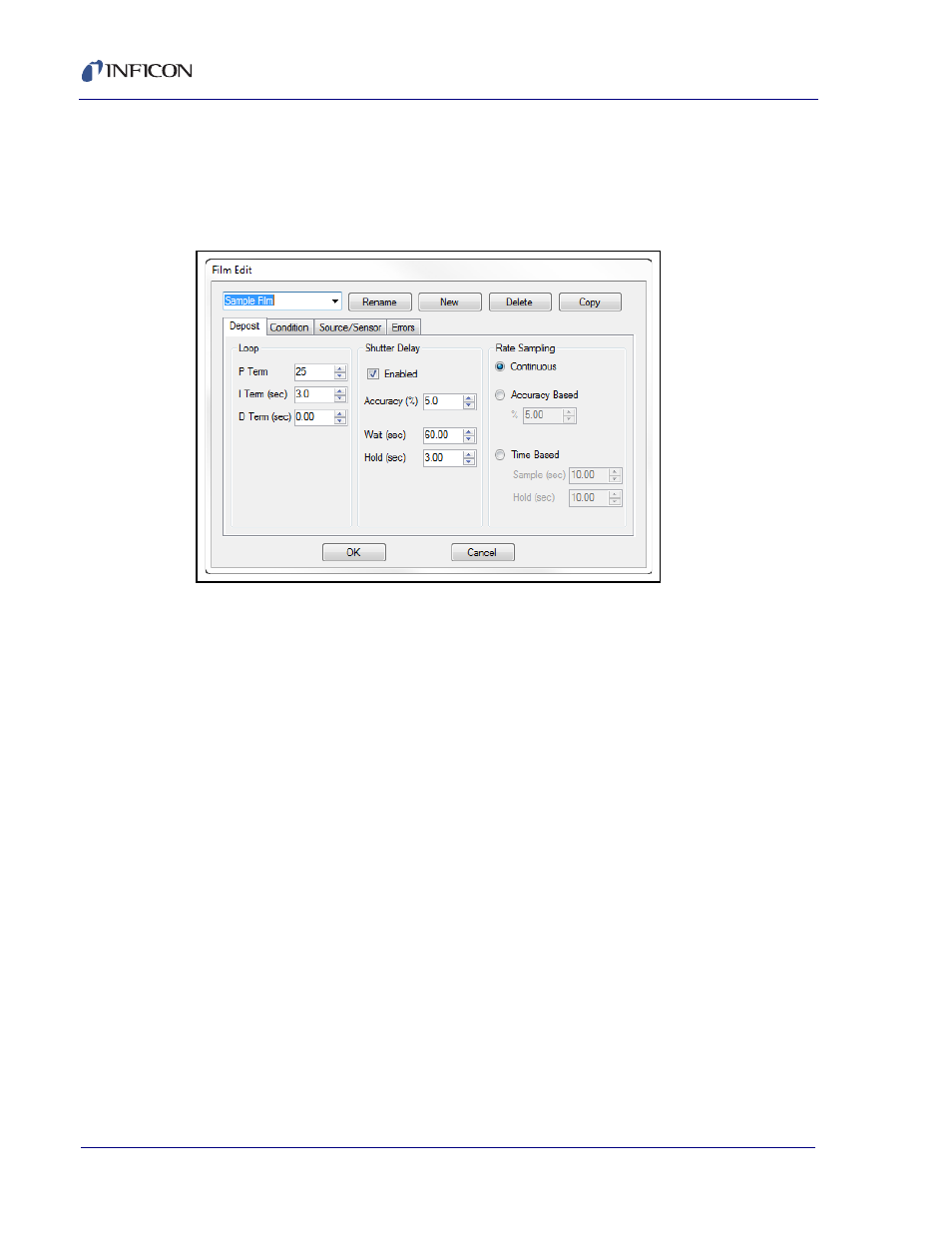

Figure 2-24 Film Edit window
 Edit commands, see section 2.3.3.5.7
 Deposit tab, see section 2.3.3.5.8 on page 2-31
 Condition tab, see section 2.3.3.5.9 on page 2-34
 Source/Sensor tab, see section 2.3.3.5.10 on page 2-36
 Errors tab, see section 2.3.3.5.11 on page 2-37
