IQM-233 Operating Manual
3.3.3.4 File
File . . . . . . . . . . . . . . . . . . . . . . . . . . Load, Save As
The parameters for Setup, Map Sensor, and Source Control can be saved to an
.xml format configuration file.
Click File >> Save As on the menu bar to display the Save As window. Type a
name for the configuration file and browse for a folder to save the file to. Click Save
to save the configuration file. See
Figure 3-17 .

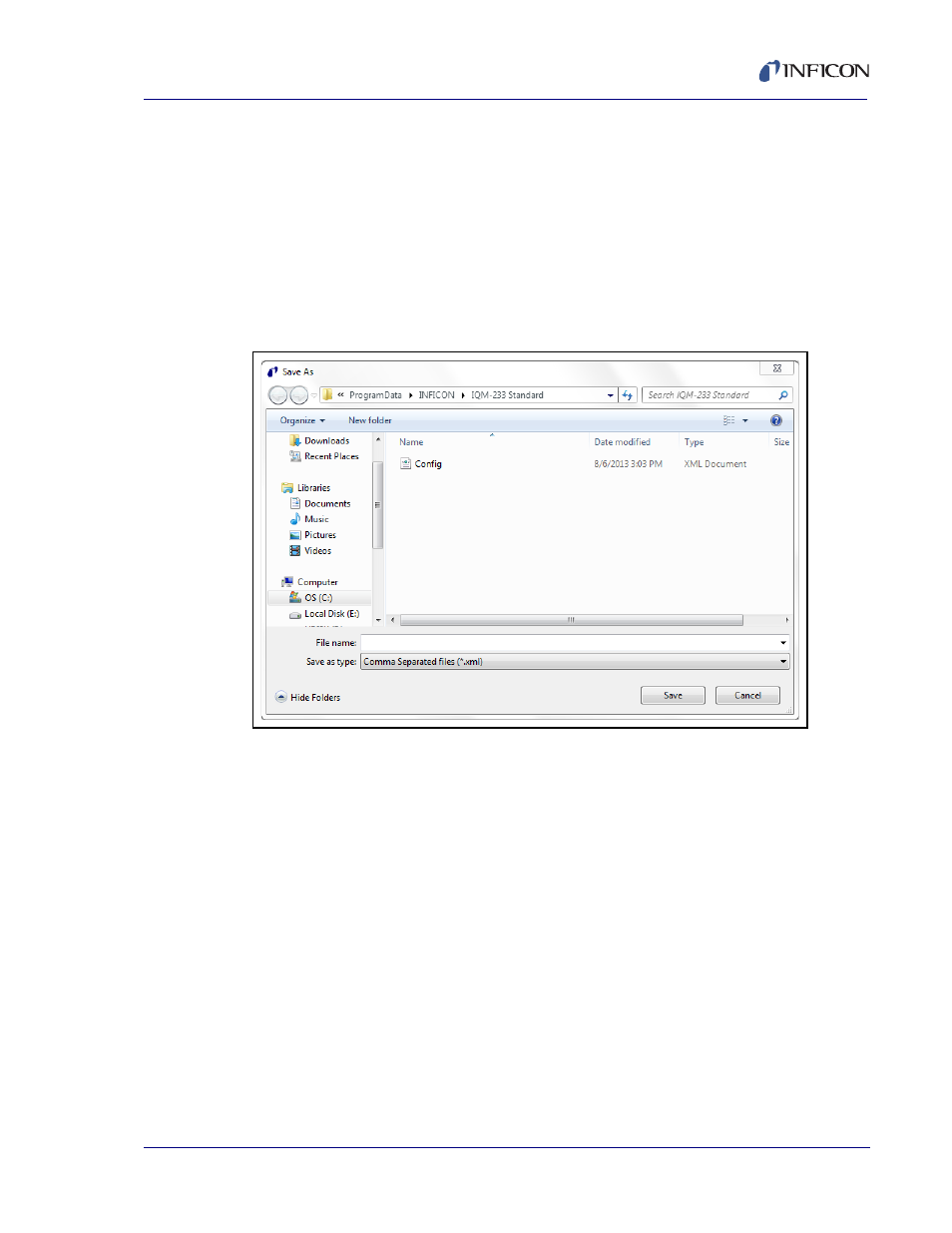

Figure 3-17 Save As window
A previously saved .xml format configuration file can be loaded into the IQM-233
Standard software.
Click File >> Load to display the Open window. Browse for the folder where a
configuration file was previously saved to. Click the name of the configuration file
to be loaded, and then click Open to load the configuration to the software. See
Figure 3-18 .
NOTE: Each time the IQM-233 Standard software is started, factory-default
parameter values in a configuration file named Config.xml are
automatically loaded. The factory-default parameter values will be
overwritten if changes are made to the parameter values and the new
parameters are saved to the Config.xml file, or if the check box next to
Save any changes to Config.xml is selected upon exiting the software.
