IQM-233 Operating Manual
9 In the IQM-233 Standard window, on the menu bar, click Setup >> General.
See
Figure 2-10 .

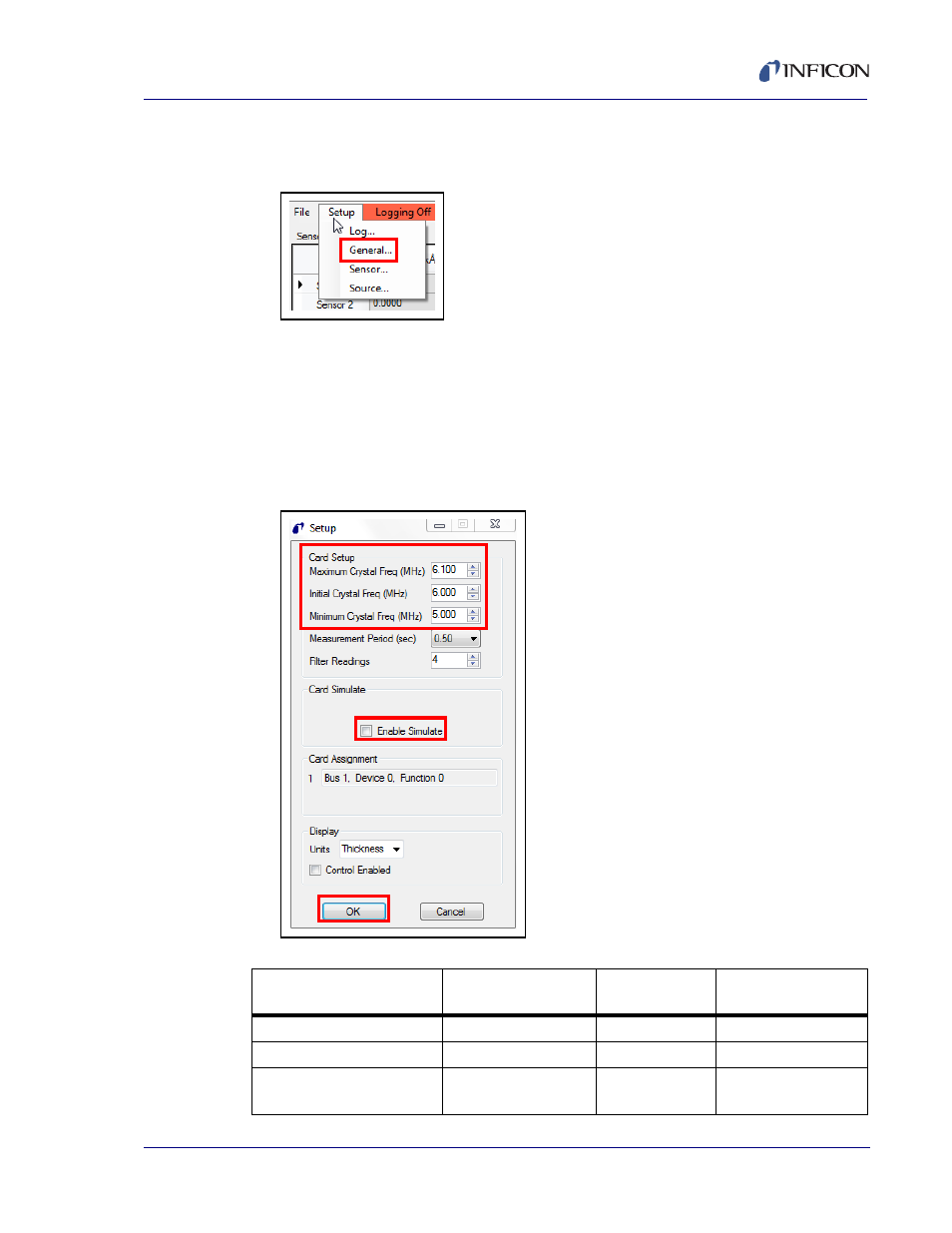

Figure 2-10 Setup list
10 The Setup window displays. See Figure 2-11 .
11 In the Maximum Crystal Freq, Initial Crystal Freq, and Minimum Crystal
Freq boxes, select frequency values appropriate for a 5 MHz or 6 MHz crystal.
See
Table 2-1 .
12 Make sure the Enable Simulate check box is clear.
13 Click OK to save the configuration.
Figure 2-11 Setup window
Table 2-1 Typical frequency settings
New Crystal Starting
Frequency
Maximum Crystal
Frequency
Initial Crystal
Frequency
Minimum Crystal
Frequency
5 MHz 5.100 5.000 4.000
6 MHz 6.100 6.000 5.000
5.5 MHz Test Crystal
(included in oscillator kit)
6.100 6.000 5.000
