IQM-233 Operating Manual
2.1.1.5.1 Earth Ground
WARNING - Risk Of Electric Shock
It is imperative to follow local electrical regulations and
codes.
If an earth ground is not established, the following grounding method is a
recommendation; however, it is imperative to follow local electrical regulations and
codes.
1 Install two 3.0 m (10.0 ft.) long copper-clad steel ground rods into the soil,
spaced at least 1.9 m (6.2 ft.) apart. Ideally, the distance between the rods
should be at least twice the rod length.
2 Pour a solution of magnesium sulfate or copper sulfate around each rod to
reduce the resistance to earth ground.
3 Test the ground rods using a Ground Resistance Tester specifically designed
for that purpose (a common ohmmeter is not recommended).
4 After verifying that a good earth ground has been achieved, connect the rods
together using #6 AWG copper wire.
2.1.2 Installation Procedure
1 Install the DLL, device driver, and WinDriver. See section 3.2.1, DLL
Installation, on page 3-1 .
2 Install the IQM-233 Standard software. See section 3.2.2, IQM-233 Standard
Software Installation, on page 3-5 .
3 Start the IQM-233 Standard software.
3a Windows 7 users: Click Start >> All Programs >> INFICON >> IQM-233
Standard.
3b Windows 8 users: In the Start window, click the IQM-233 Standard icon.
HINT: If the IQM-233 Standard icon is not visible, click Search >> Apps, and
then type IQM-233 in the Search box to locate the icon.
4 The IQM-233 Standard window will display. See Figure 2-3 .

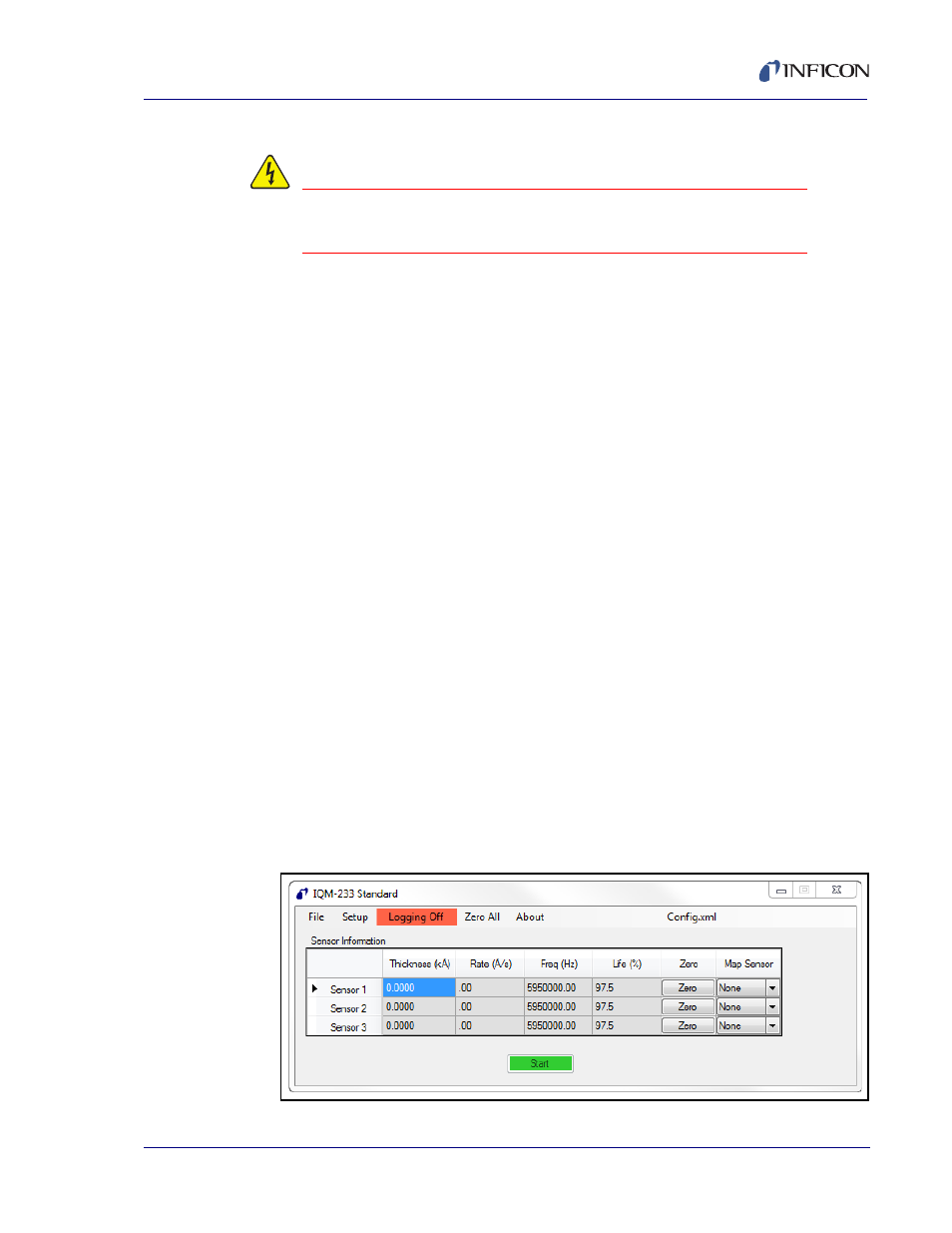

Figure 2-3 IQM-233 Standard window
