5 digital i/o connections, Section – INFICON IQM-233 Thin Film Deposition Controller PCI-Express Card Operating Manual User Manual
Page 40
2 - 18
PN
07
4-
58
4-
P1
A
IQM-233 Operating Manual
10
In the Source Information pane, adjust the value of Manual Power (%) for the
connected output, and then check for an appropriate response from the source
power supply (see
). For detailed information, see
Source Control Operating Functions, on page 3-23
.
11
Repeat steps 8, 9, and 10 for any additional source output channels connected
to source power supplies.

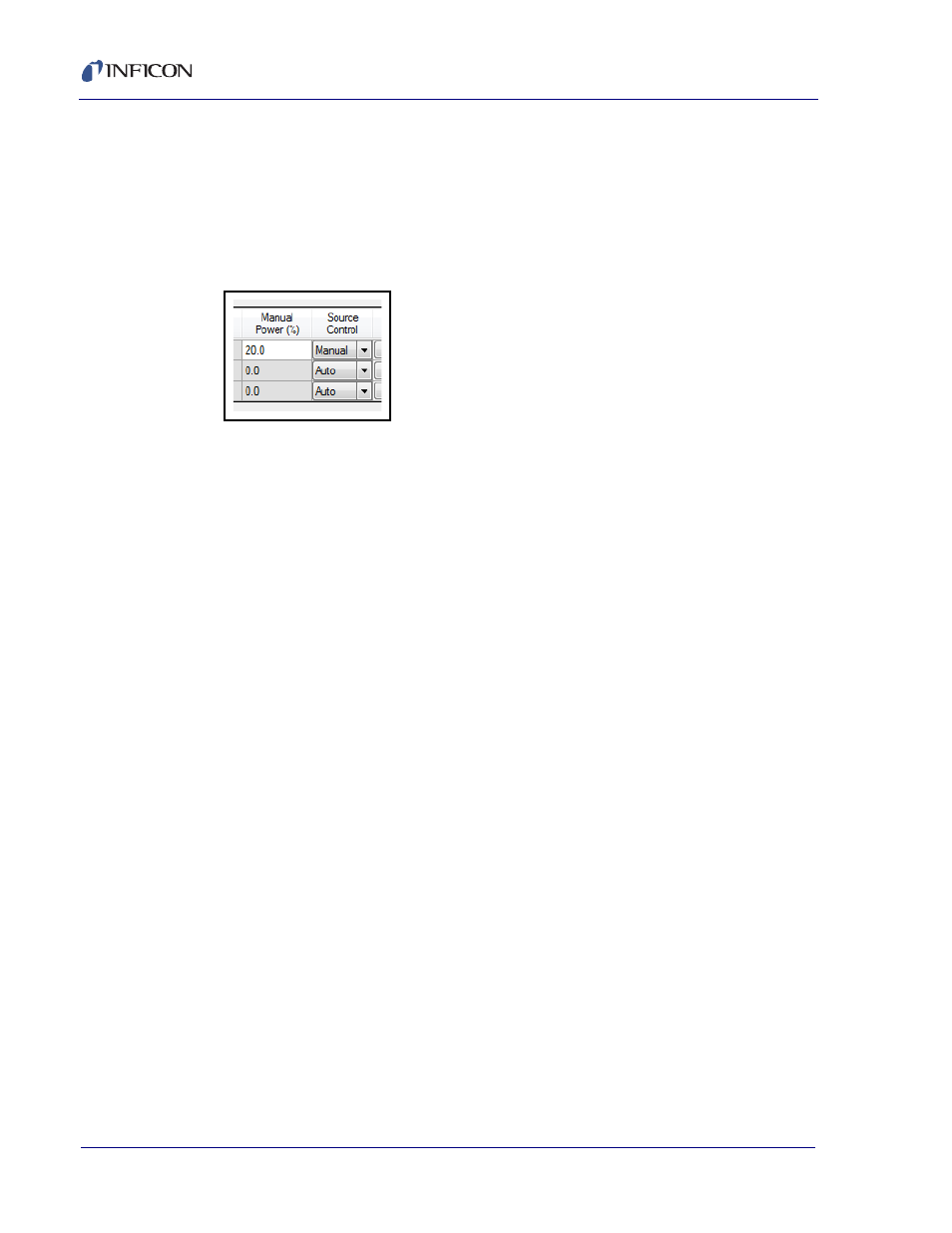

Figure 2-22 Source Control - Manual
2.1.2.5 Digital I/O Connections
The IQM-233 card does not have the digital inputs and outputs needed for
automatic control of source and sensor shutters, rotation of source pockets, etc.
A Programmable Logic Controller (PLC) together with the optional IQS-233
Codeposition software can add this capability. The PLC is not available from
INFICON. Refer to the IQS-233 Codeposition Software Operating Manual for
information about interfacing a PLC with IQS-233 Codeposition software.
