Hardware
5.1
Worktable
5.1.1

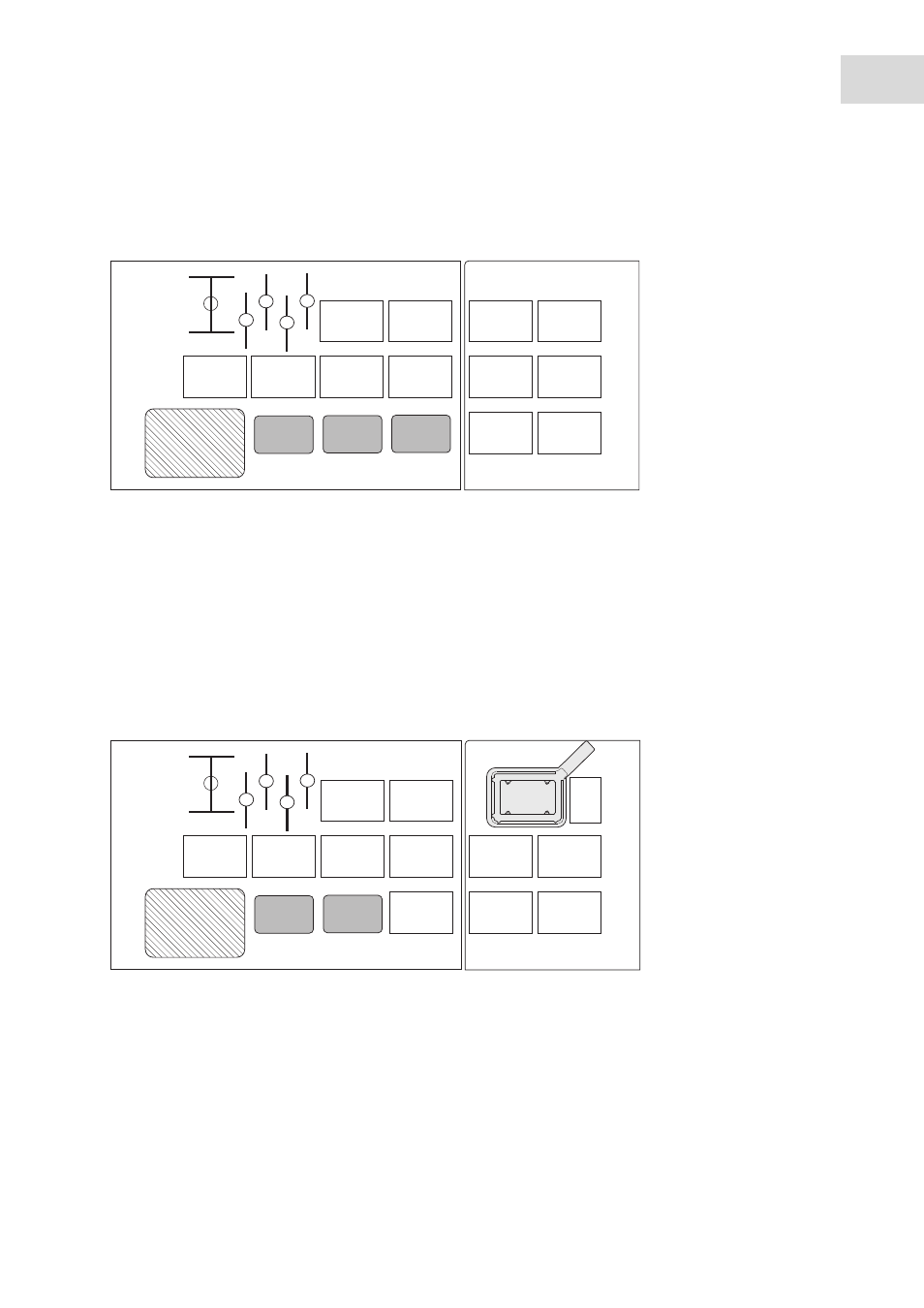

Layout of the epMotion 5075I worktable
Abb. 5-1: Worktable for epMotion 5075I
Fig. 5-1:
Worktable for epMotion 5075I
5.1.2
Layout of the epMotion 5075t worktable
Abb. 5-2: Worktable for epMotion 5075t
Fig. 5-2:
Worktable for epMotion 5075t
A2-C5
Locations for labware
C1-C3
With up to 3 thermal modules as an optional
feature
T1-T4
Locations for dispensing tools
T0
With a gripper as an optional feature
Waste
Location for waste container
A2-C5
Locations for labware
C1-C2
With 2 thermal modules as an optional feature
A4
Thermomixer
T1-T4
Locations for dispensing tools
T0
With a gripper as an optional feature
Waste
Location for waste container
TM 1
TM 2
TM 3
Waste
