Boom

3-18

6036, 6042, 8042, 10042, 10054

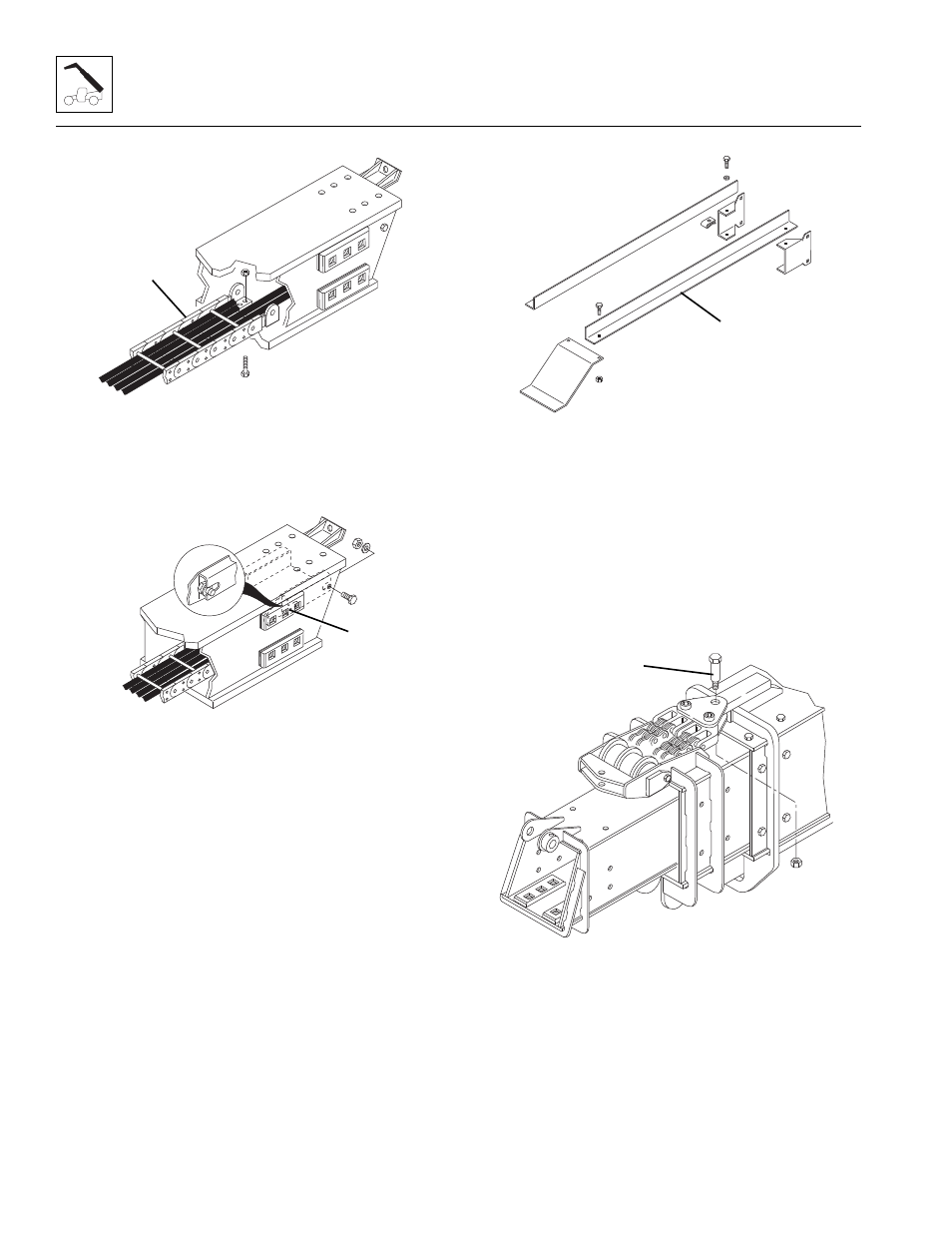

30. Inside the boom section, remove the hardware

securing the hose carrier (9) to the bottom of the
boom.

31. On each side of the boom, remove the hardware

securing the rear of the hose carrier guide in place.

32. Loosen, but DO NOT remove the hardware holding

the front of the hose carrier guide and the top wear
pad (10) to each side of the boom.

33. Tilt the back of the hose carrier guide up. Label all

hoses and their orientations. Pull the hoses from the
channels inside the boom. Lay the hoses out behind
the boom.

34. After the hoses are removed, remove the hose

carrier guide by pulling the guide out the rear of the
boom.

35. Remove the hose carrier assembly (11) from the

boom by carefully pulling both the upper and lowers
portions through the rear of the boom at the same
time.

36. Carefully slide the hose channel assembly out of the

rear of the boom.

3.6.2

Third Boom Section Removal

1. At the front of the second boom section, remove the

top and side wear pads. Label and tag each set of
wear pads being removed.

2. Remove the shoulder bolt (12) holding the yoke

plates to the mount at the front of the first boom
section.

3. Remove the extend chain sheave pin and sheave on

the third boom section.

MH1901

9

MH1911

10

MH1961

11

MH1991

12
