Page 144: Exhaust system removal

Engine
7-8
6036, 6042, 8042, 10042, 10054
7.7
ENGINE EXHAUST SYSTEM
Rattles and noise vibrations in the exhaust system are
usually caused by misalignment or parts. When aligning
the system, leave all capscrews and nuts slightly loose
until all parts are properly aligned, then tighten all
fasteners working from the front of the system to the rear.
When replacing the muffler, also replace the tail pipe.
Before assembling components, use exhaust system
sealer at all slip joint connections.
When installing exhaust system components, allow
sufficient clearance between the components and other
pipes, hoses and wiring that could be adversely affected
by excessive heat.
7.7.1
Exhaust System Removal
1. Park the machine on a firm, level surface, level the
machine, fully retract the boom, lower the boom,
place the travel select lever in the (N) NEUTRAL
position, engage the parking brake, and shut the
engine OFF.
2. Place a Do Not Operate Tag on both the ignition key
switch and steering wheel, stating that the machine
should not be operated.
3. Open the rear door. Allow the system fluids to cool.
4. Properly disconnect the battery.

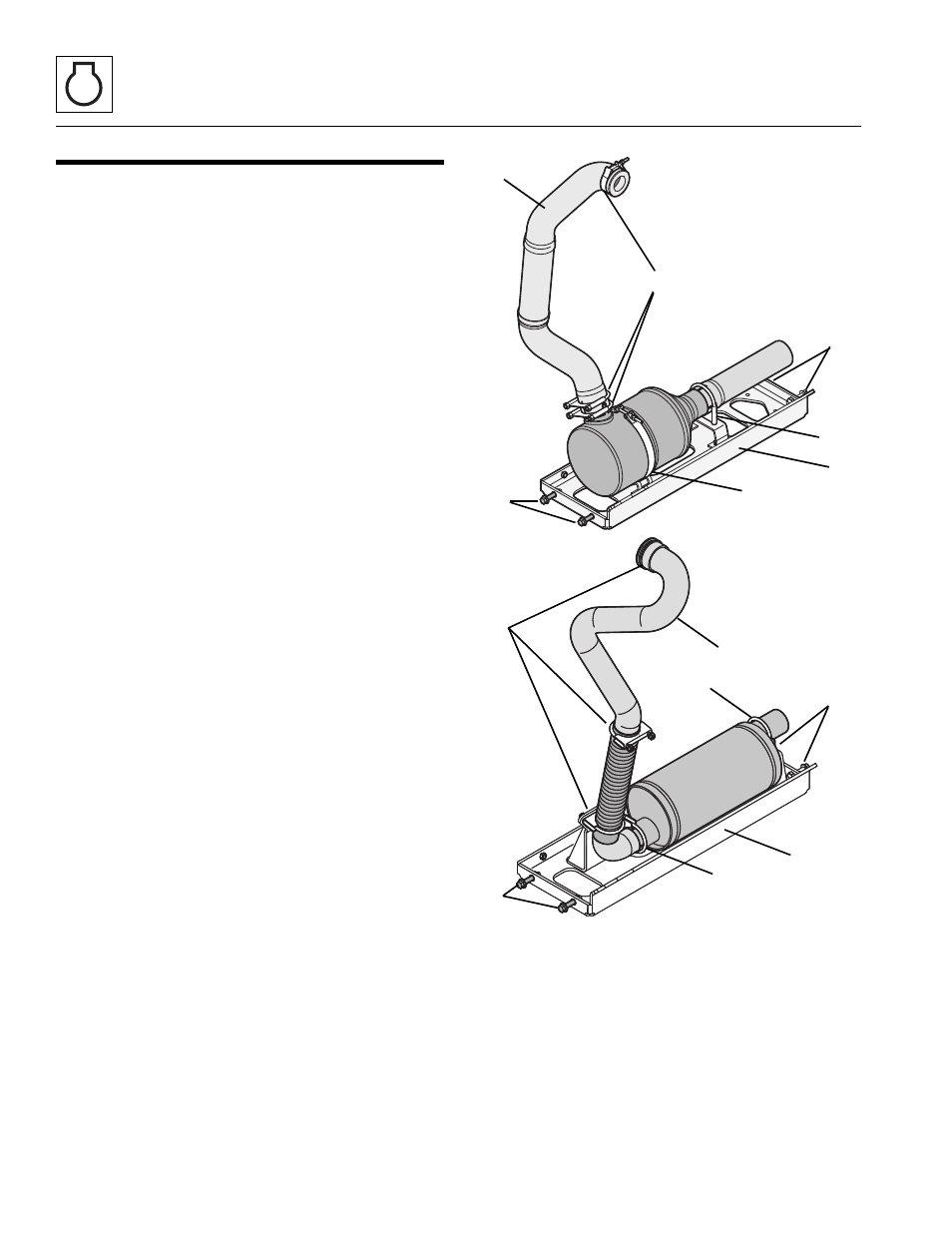

5. Loosen three clamps (10) securing exhaust pipe to
muffler and engine. Remove exhaust pipe (11).
6. Loosen two bolts (13) securing muffler mounting
plate (12) to machine frame on right side of machine.
Do Not Remove bolts.
7. Remove two bolts (14) securing muffler mounting
plate on left side of machine.
8. Be sure to properly support muffler mounting plate
and muffler for removal.
9. Drop muffler mounting plate down on left side.
MAQ0510
10
13
14
11
12
IF EQUIPPED FOR ULS
10
10
MAQ0520
10
13
14
12
IF EQUIPPED FOR LS
11
10
10
