9.8.3

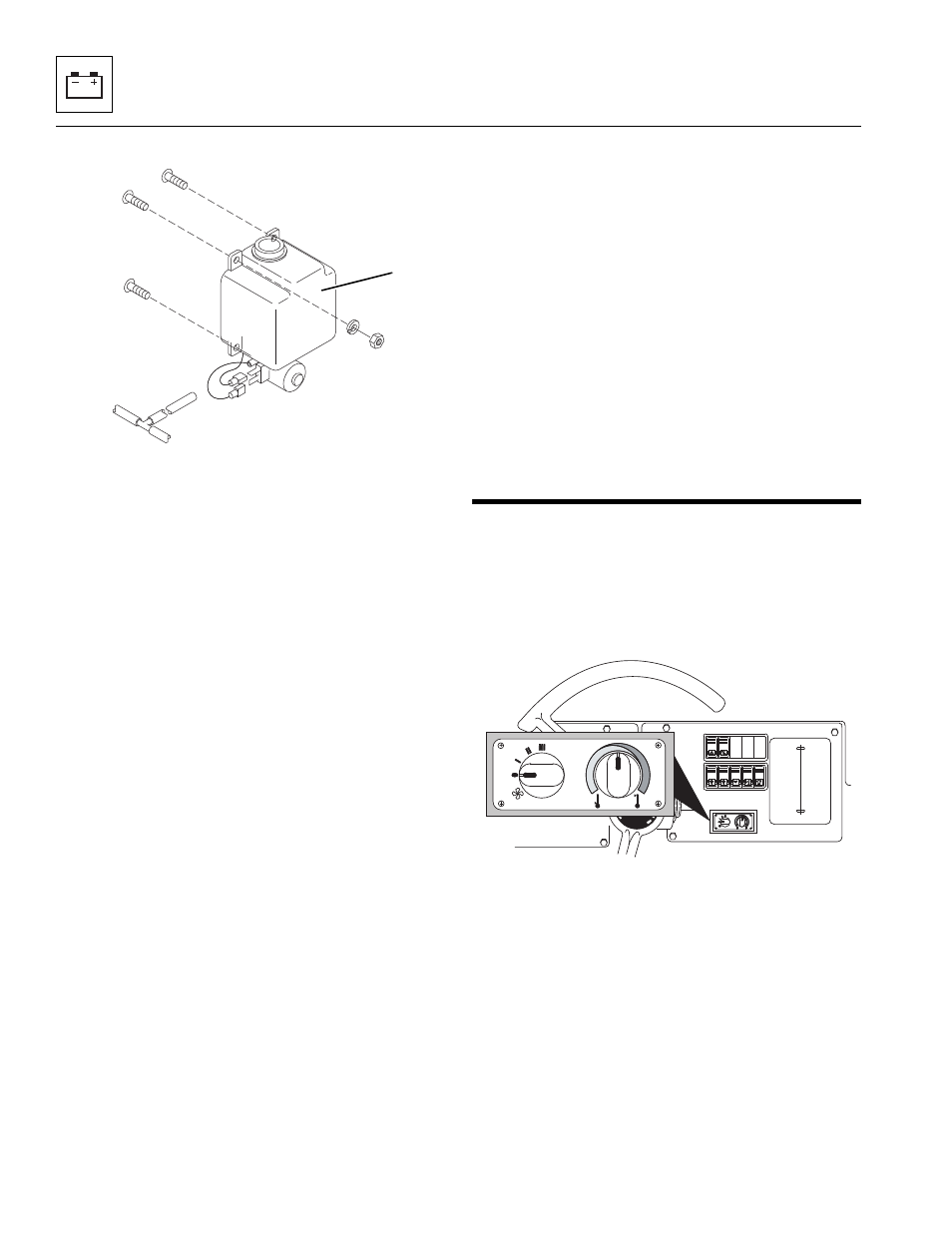

Windshield Washer Reservoir
The windshield washer motor and reservoir (7) is a unit
and cannot be serviced separately.
a. Removal
1. Park the machine on a firm, level surface, level the
machine, fully retract the boom, lower the boom,
place the transmission control lever in
(N) NEUTRAL, engage the park brake and shut the
engine OFF.
2. Place a Do Not Operate Tag on both the ignition key
switch and the steering wheel, stating that the
machine should not be operated.
3. Open the rear door. Allow the system fluids to cool.
4. Properly disconnect the battery.
5. Remove the nuts and the lock washers from the
washer mounting bolts.
6. Pull the washer reservoir out and away from the
mounting bracket.
7. Rotate the washer reservoir, label and remove the
cab harness connectors from the washer reservoir
connectors.
8. Remove the windshield washer hose from the
reservoir.
b. Disassembly
DO NOT disassemble the pump. The pump is not
serviceable. Replace pump if found to be defective.
c. Installation and Testing
1. Connect windshield washer hoses to reservoir.
2. Connect the cab wiring harness connectors to the
reservoir connectors.
3. Install the reservoir tank onto the welded studs.
4. Install the lock washers and nuts and secure.
5. Fill the washer fluid reservoir with washer fluid.
6. Properly connect the battery.
7. Remove the Do Not Operate Tags from both the
ignition key switch and the steering wheel.
8. Turn the ignition key switch to the RUN position and
press the washer switch. Verify that fluid is sprayed
on both the windshield and rear glass.
9. Close and secure the rear door.
9.9
CAB HEATER AND FAN
9.9.1
Cab Heater Controls
Note: If the suspect component is found to be within the
heater box, the heater box must be removed as a
complete unit and replaced.
a. Cab Heater Controls Removal
1. Park machine on a firm, level surface, level machine,
fully retract boom, lower boom, place transmission
control lever in (N) NEUTRAL, engage the park
brake and shut the engine OFF.
2. Place a Do Not Operate Tag on both ignition key
switch and steering wheel, stating that machine
should not be operated.
3. Open the rear door. Allow the system fluids to cool.
4. Properly disconnect the battery.
5. Remove the setscrew from the variable speed fan
control knob or temperature control knob.
6. Remove the right side control panel screws.
