SkyTrak 6036 Service Manual - Manual (Page 192)

Electrical System
9-4 6036, 6042, 8042, 10042, 10054

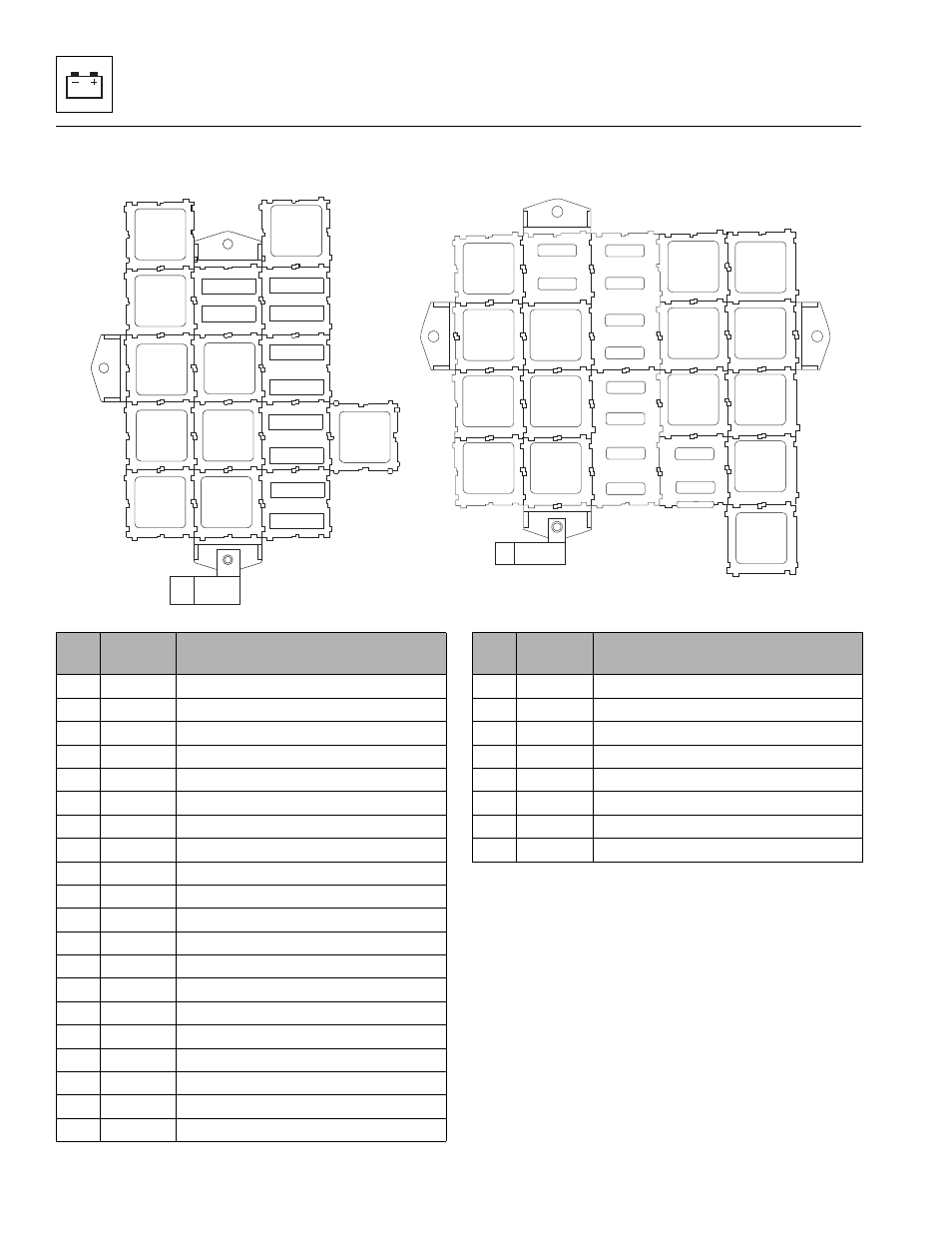

9.4.2 Cab Harness Fuses and Relays
2
3
22
6
4 7 10
5 8
11
12
13
14
15
16
17
18
19
20
21
MAQ0350
23
24
25
26
27
28
29
30
2
3 6
4 7 10
5 8
11
12
13
14
15
16
17
18
19
20
21
MAQ0341
6036, 6042, 8042 & 10042
10054
No. Volt/
Amp
Circuit
2 12 Volt Headlight Switch
3 12 Volt Light Switch
4 12 Volt Stabilizer Lock
5 12 Volt Boom Switch
6 12 Volt Park Brake Disengage
7 12 Volt Neutral Start
8 12 Volt Back up
10 12 Volt Ignition
11 7.5 Amp Transmission
12 20 Amp Lights
13 15 Amp Horn/Heater
14 10 Amp Wiper (if equipped)
15 10 Amp Stabilizer
16 10 Amp Steer Select
17 7.5 Amp Optional Cab/ Outrigger (if equipped)
18 10 Amp Park Brake
19 7.5 Amp Optional
20 40 Amp Main
21 40 Amp Road/Worklights (if equipped)
22 7.5 Amp Outrigger
23 7.5 Amp Outrigger
24 12 Volt Park Brake Interlock
25 12 Volt Boom Extend Lockout
26 12 Volt Stabil-TRAK Interlock
27 12 Volt Stabil-TRAK Lock Up
28 12 Volt Boom Extend Interlock
29 12 Volt Right Outrigger Lock
30 12 Volt Left Outrigger Lock
