Page 218: Troubleshooting, Fault detection, Offboard diagnostics

Electrical System
9-30
6036, 6042, 8042, 10042, 10054
9.13
TROUBLESHOOTING
9.13.1
Fault Detection
Faults are detected while key switch is in RUN position,
during operation of machine itself. If a fault becomes
active (currently detected) at this time, a fault is logged in
memory and a snapshot of engine parameters is logged.
In addition, certain faults may illuminate warning lamp
(amber) or stop lamp (red) depending upon severity of

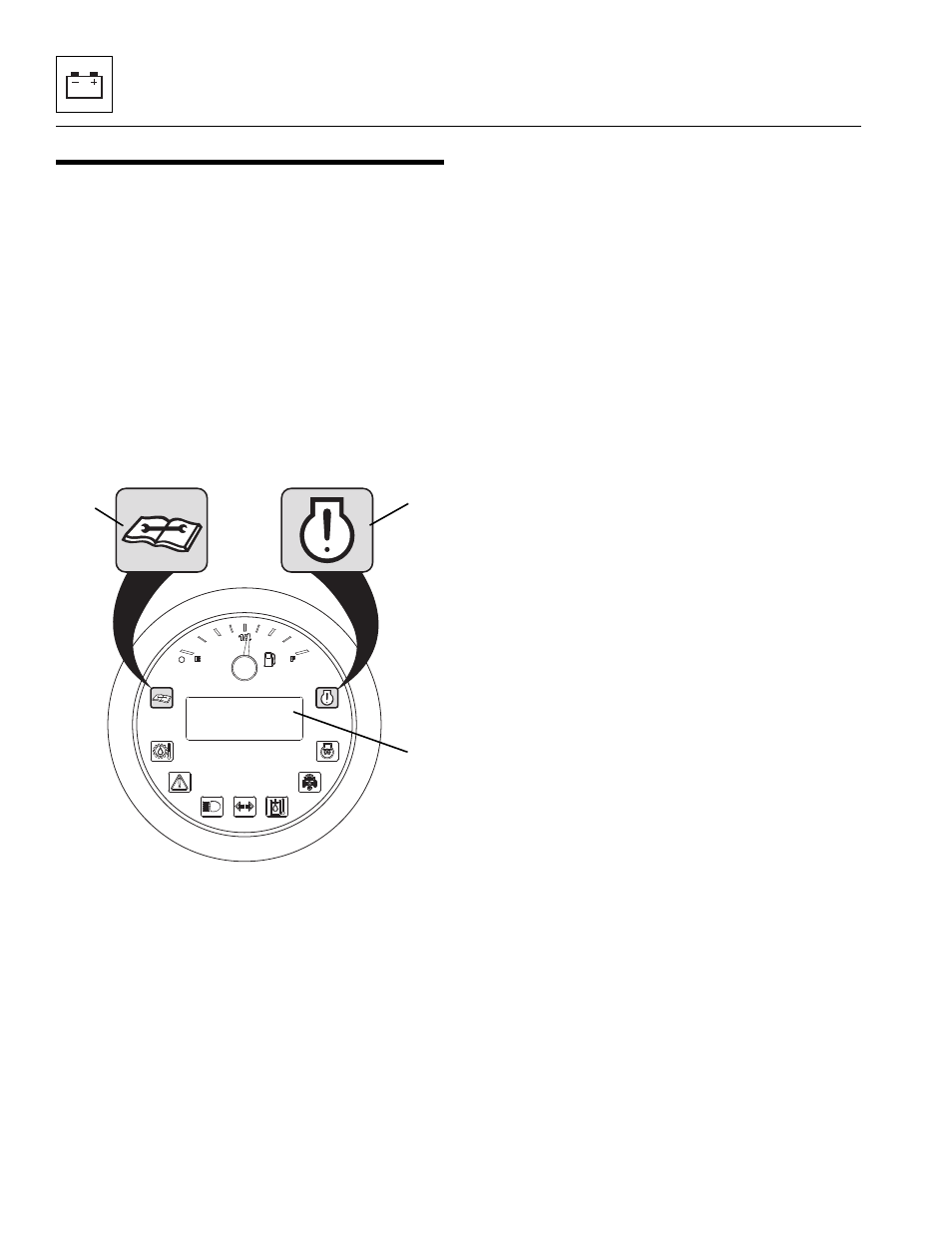

the active fault. Fault codes will display in the instrument
cluster display (9).
For more information, contact your local authorized
Cummins service distributor.
Note: Refer to Engine Fault Code Chart for a full list of
fault codes.
9.13.2
Offboard Diagnostics
INSITE
TM
, is the Windows®-based PC service/
programming/diagnostic tool for the Cummins engine. It
is used to help troubleshoot and repair the engine with
extended fault diagnostics and processing power.
INSITE
TM
allows the user to view active and inactive
faults and clear the inactive faults. It provides a monitor
function that allows the service technician to monitor
measured parameters, actuator status and some
calculated values. It also provides the technician with the
capability to turn on certain drivers such as the grid
heaters and lift pump as well as running diagnostic tests
such as single cylinder cutout.
MAQ0750
10
11
9
