Cab and Covers
function. The boom should FRAME LEVEL RIGHT.
• Move joystick handle to left, activating frame level
function. The boom should FRAME LEVEL LEFT.
Auxiliary Control Joystick
• Move the joystick handle to the right, the auxiliary
attachment should LOWER/OPEN.
• Move the joystick handle to the left, the auxiliary
attachment should RAISE/CLOSE.
6. Install console panel in the cab.
c. Joystick Cable Adjustment
1. Park the machine on a firm, level surface, level the
machine, fully retract the boom, lower the boom,
place the travel select lever in the (N) NEUTRAL
position, engage the parking brake and turn the
engine OFF.
2. Place a Do Not Operate Tag on both the ignition key
switch and steering wheel, stating that the machine
should not be operated.
3. Properly disconnect the battery.
4. Remove transmission covers.

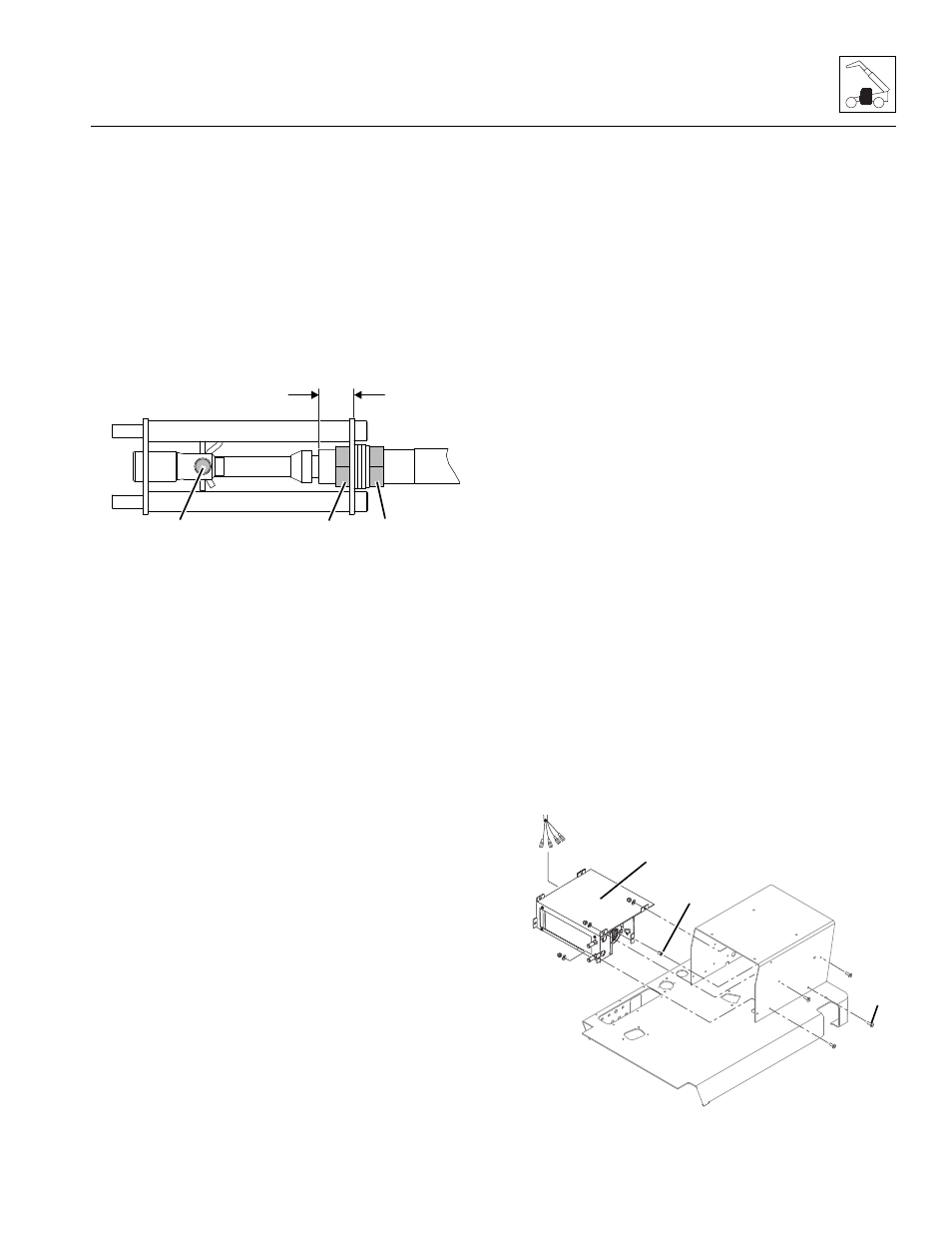

5. Verify proper joystick cable dimension (A)
0.94-1.06 in (23.9-27.0 mm) at the main control
valve.
6. With the joystick in the neutral position, the joystick
to main control valve spool pin (6) must spin freely.
7. If adjustment is required, loose lock nuts (7), adjust
joystick cable.
8. Tighten both lock nuts (7) using two wrenches.
9. Repeat step 7.
10. Torque lock nuts to 35-50 lb in (4-5.6 Nm).
11. Install transmission covers.
12. Properly connect the battery.
13. Remove the Do Not Operate Tags from both the
ignition key switch and the steering wheel.
4.3.5
Windshield Wiper Assembly
Refer to Section 9.8, “Window Wiper/Washer Windshield
Wiper Motor,” for removal and installation information.
4.3.6
Heater/Defroster System (If Equipped)
a. Heater Assembly Removal
1. Park the machine on a firm, level surface, level the
machine, fully retract the boom, lower the boom,
place the travel select lever in the (N) NEUTRAL
position, engage the park brake and shut the engine
OFF.
2. Place a Do Not Operate Tag on both the ignition key
switch and the steering wheel, stating that the
machine should not be operated.
3. Open the rear door. Allow the system fluids to cool.
4. Properly disconnect the battery.
5. Place a suitable container beneath the radiator drain
plug or petcock. Slowly turn the radiator cap to the
first stop, and allow any pressure to escape.
Remove the radiator cap.
6. Place a funnel at the base of the radiator to channel
the drained coolant into the container. Loosen the
drain plug or petcock and allow the coolant to drain.
7. Transfer the coolant to a container with a cover, and
label as “Used Antifreeze.” Dispose of the used
coolant at an approved recycling facility.
8. Close the radiator drain plug or petcock.
9. Remove the heater access panel.
10. Label, disconnect and cap the heater hoses. Pull the
hoses through the grommets.
MAQ1470
6
A
7
7
MA8371
9
8
10
