6. Support starter and remove fasteners securing
starter to engine. Remove negative (-) ground cable
from its starter mounting bolt.
7. Remove the starter from the machine.
d. Starter Installation
1. Position starter in its mounting on flywheel housing.
Position ground cable over correct starter mounting
bolt. Secure starter with previously used hardware.
2. Connect positive (+) battery cable to upper solenoid
stud. Install wires to upper solenoid stud, and secure
with lock washer and nut.
3. Connect the wire to the solenoid mounting stud.
4. Properly connect the battery.
5. Remove the Do Not Operate Tags from both the
ignition key switch and the steering wheel.
6. Close and secure the rear and side engine covers.
9.7
CHARGING CIRCUIT
Before using a battery charger, an attempt can be made
to recharge the battery by jump-starting the machine
(Refer to the appropriate Operation & Safety Manual).
Allow the engine to run, which will enable the
alternator (2) to charge the battery.
If the engine alternator charging warning indicator
illuminates, perform the following checks:
1. Check all battery cable connections at the battery,
and verify that they are clean and tight.
2. Check the external alternator wiring and
connections, and verify that they are in good
condition.
3. Check the fan belt condition and tension.

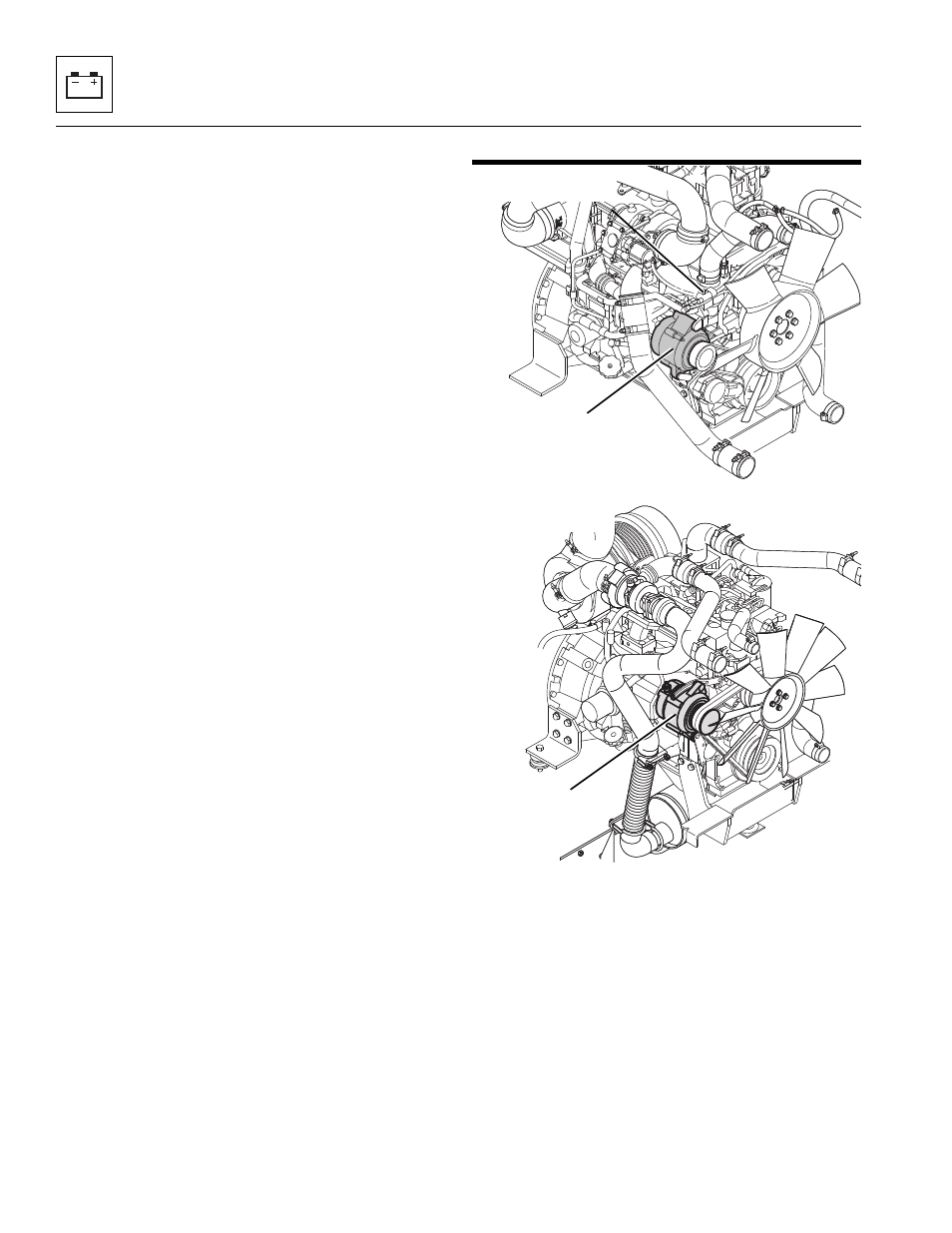

MAQ0720
2
2
2
IF EQUIPPED FOR ULS
IF EQUIPPED FOR LS
